Description

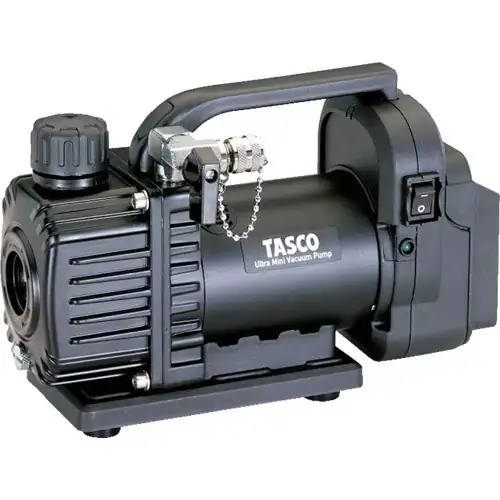

The Tasco TA150ZM-1-EXP is an ultra-mini, single-stage vacuum pump for technicians who need a pump that goes anywhere. Run it from a Makita 18V battery on rooftops, in ceiling spaces, or on sites with no power, or plug in the supplied AC adapter at the workshop.
Who It’s For
- Service technicians who want a light, grab-and-go pump for quick evacuations and repairs
- Split system installers working on rooftops, ladders and balconies, away from a power outlet
- Technicians already on the Makita 18V platform, who can share their batteries
- A second pump in the van for small jobs, alongside a larger two-stage pump
Features
- Dual power: Makita 18V lithium-ion battery or the dedicated AC adapter
- Ultra-compact and light: 120 × 234 × 156 mm, 2.9 kg
- Around 120 minutes of run time on a new, fully charged 5.0Ah battery
- Energy-efficient direct-drive motor
- Single-stage rotary design, 25.8 L/min
- 5/16″ flare intake, with a 5/16″ female × 1/4″ male adapter included
Specifications
| Model | TA150ZM-1-EXP |
| Pump type | Single-stage, direct drive |
| Exhaust speed | 25.8 L/min (0.9 CFM) |
| Ultimate vacuum | 18 Pa (135 microns) |
| Motor speed | 1,900 rpm |
| Power | Makita 18V Li-ion battery, or supplied AC adapter |
| Battery run time | Approx. 120 min (5.0Ah battery, not included) |
| Oil capacity | 80 ml |
| Intake port | 5/16″ flare |
| Dimensions | 120 (W) × 234 (D) × 156 (H) mm |
| Weight | 2.9 kg |
In The Box
- 1 × TA150ZM-1-EXP vacuum pump
- 1 × dedicated AC adapter
- 1 × vacuum pump oil
- 1 × 5/16″ female × 1/4″ male adapter (TA159P-4)
- Battery and charger not included
Pairs Well With
- Bradley Universal Vacuum Pump Oil: ISO 46 oil for regular oil changes
- Digital vacuum gauges: confirm your micron level before charging
- Tasco manifolds and charging hoses
Need a deeper vacuum for new installs? Compare the Bradley two-stage vacuum pumps or see all vacuum pumps.
FAQs
Is a single-stage pump good enough for a new install?
It’s best suited to service work and small systems. For commissioning new installs where you need a deep, fast vacuum, pair it with a micron gauge or choose a two-stage pump such as the Bradley VP150S.
Does it come with a battery?
No. It takes any Makita 18V lithium-ion battery. Run time of about 120 minutes is based on a new 5.0Ah battery.
What’s included for mains power?
A dedicated AC adapter is supplied, so you can run the pump without a battery in the workshop or on site.
