Description

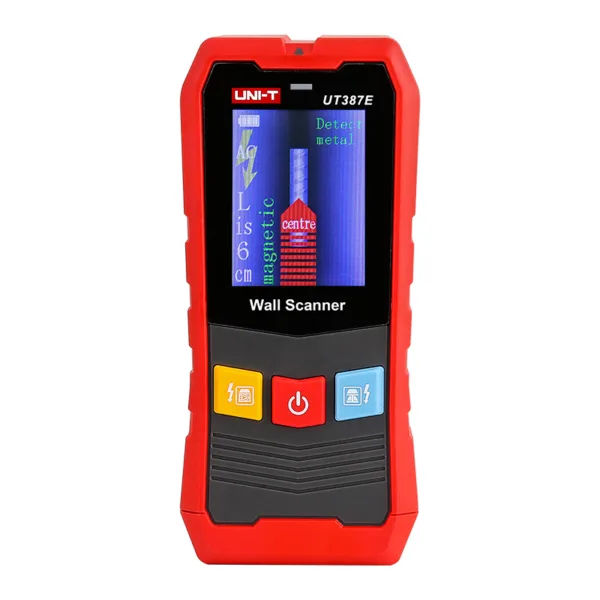

The UNI-T UT387E is a professional wall scanner designed to detect hidden objects behind walls, ceilings, floors, and gypsum boards. It can identify ferrous and non-ferrous metals, wood, copper pipes, and electrical wires, making it suitable for HVAC installation, renovation, construction, and general maintenance work. It features a 2.4-inch colour display, voice alerts, automatic calibration, and a built-in rechargeable lithium battery.
FEATURES
- Detects hidden ferrous and non-ferrous metals
- Detects wooden beams and structures
- Detects copper pipes and electrical wires
- Detects live AC electrical wires
- 2.4-inch colour LCD screen
- Voice broadcast and audio alerts
- Automatic calibration
- Multiple detection modes
- Built-in rechargeable lithium battery
- Type-C USB charging
- Automatic power-off function
- Compact and lightweight design
- Suitable for HVAC installation, renovation, construction, and DIY applications
INCLUDES
- 1 × UNI-T UT387E Wall Scanner
- 1 × USB Interface Cable
- 1 × Cloth Bag
- 1 × User Manual
- 1 × Gift Box
SPECIFICATIONS
- Product Type: Wall Scanner
- Wood Scanning Depth: 20 mm (Precision Mode) / 38 mm (Depth Mode)
- Ferrous Metal Detection Depth: 100 mm
- Non-Ferrous Metal Detection Depth: 80 mm
- Live Wire Alarm Accuracy: 110–220 V, 50–60 Hz, up to 50 mm
- Copper Wire Detection Depth: 40 mm for ≥4 mm² copper wire
- Display: 2.4-inch Colour LCD
- Battery: Built-in 300 mAh Lithium Battery
- Battery Life: Approximately 3,000 single measurements
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 60°C
- Operating Humidity: Metal Mode 0–85% RH | AC Mode 0–30% RH | Wood Mode 0–60% RH
- Auto Power Off: Approximately 5 minutes
- Product Dimensions: 153 × 68 × 31 mm
- Net Weight: 151.4 g
- Certifications: CE / UKCA
