Description

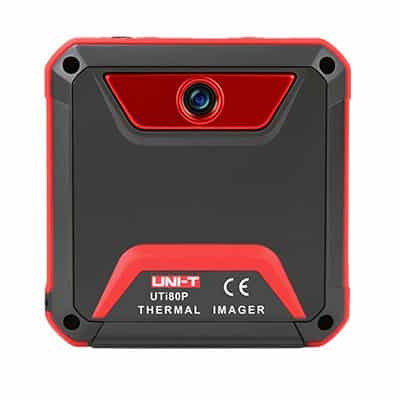

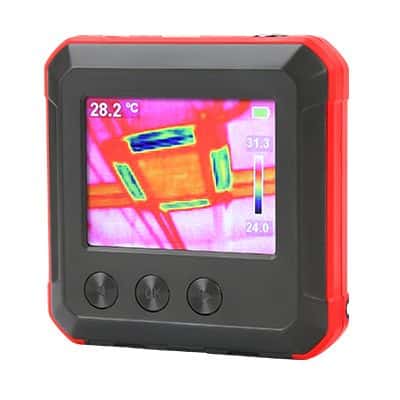

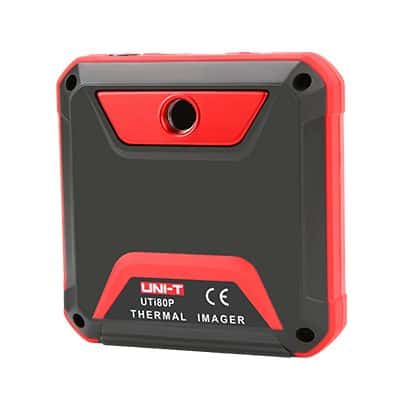

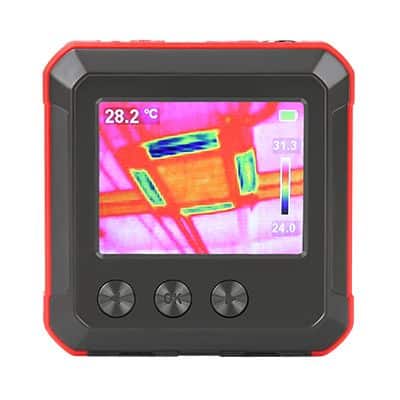

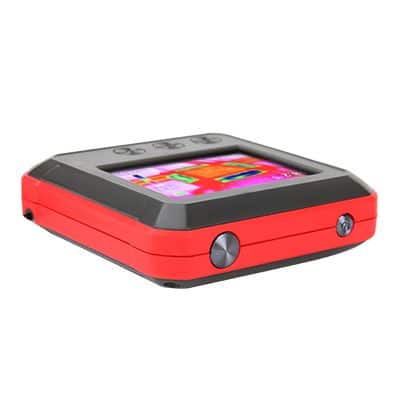

The Uni-T Pocket-Sized Thermal Imager fills the gap between single spot infrared thermometers and more expensive thermal imagers. With 80×60 pixel resolution, this small thermal imager lets you see the heat map instantly so you know exactly where to target spot measurement. Easily find unseen hot and cold spots for instant troubleshooting, and store images on the removable micro SD card to show customers and include in reports. It significantly improves inspection and diagnostic times by helping you visually pinpoint the source of electrical, mechanical, and HVAC/R system faults.
Applications:
The UTi80P Cube is widely used in power/HVAC equipment maintenance, electronic power/automotive manufacturing, construction, energy, chemical and smelting industries.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
UTi80P Pocket-Sized Thermal Imager Features:
- Temperature range: -10 ~ 400℃
- Pocket-sized thermal imager
- 2.4-inch TFT LCD
- 80×60 pixels
- Adjustable emissivity
- Thermal sensitivity (NETD) ≤150mk (0.15℃)
- Field of view (FOV) 50°×38°
- Frame rate 9Hz
- Pallets Iron, rainbow, grey
- High/low-temperature tracking
- Rechargeable lithium battery (through micro USB)
- PC software for temperature analysis and reporting.
UTi80P Pocket-Sized Thermal Imager Includes:
1 x UTi80P, Micro SD card, Micro USB cable, Carrying bag and a 12-Month Warranty.
UTi80P Pocket-Sized Thermal Imager Specifications:
| Specifications | ||
| Model | UTi80P | UTi120T |
| IR resolution | 80×60 pixels | 120×90 pixels |
| Field of view (FOV) | 51° horizontal | 50°×38° |
| Thermal sensitivity (NETD) | ≤150mk (0.15℃) | ＜60mk |
| Temperature range | -10~400℃ | -20~400℃ |
| Spatial resolution (IFOV) | 11mrad | 7.6mrad |
| Frame rate | ≤9Hz | 25Hz/9Hz |
| Measurement accuracy | ±2℃ or ±2% whichever is greater | |
| Focus | Focus free | |
| Digital zoom | 2×, 4×, 8× | |
| Display modes | Thermal | Thermal, image blending, visible light |
| General Characteristics | ||
| Power | UTi80P: Li-ion battery (3.7V 1300mAh); UTi120T (3.7V 5000mAh) | |
| Product colour | Red and grey | |
| Product net weight | UTi80P: 125g; UTi120T: 212g; | |
| Product size | UTi80P: 76mm x 76 mm x 22mm; UTi120T: 205mm x 124 mm x 65mm | |
| Standard accessories | Carrying bag, micro USB cable, micro SD card | |
