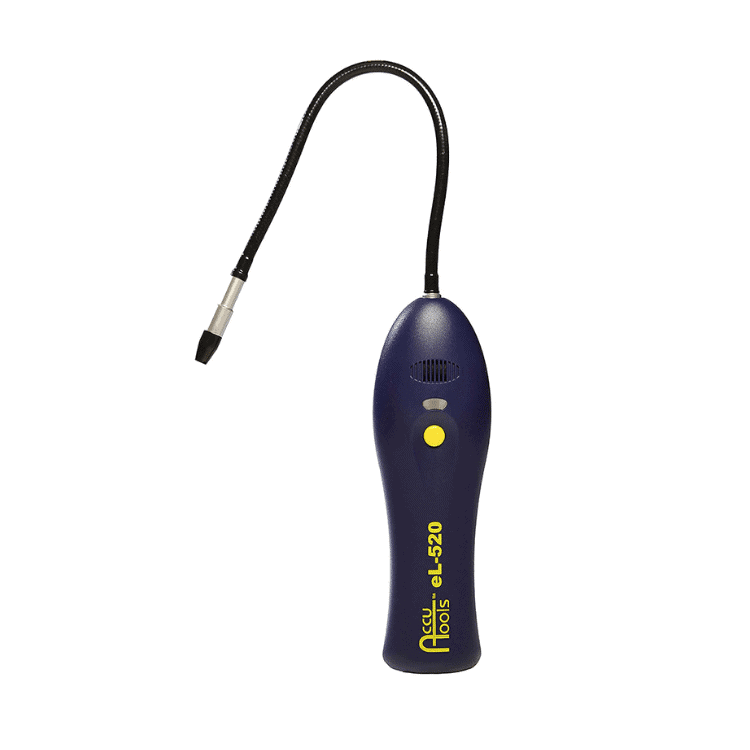

The AccuTools eL-520 Refrigerant Gas Leak Detector is used to quickly and accurately isolate leaks in all commercial, residential, industrial and automotive air conditioning and refrigeration systems. It detects all HFC, CFC and HCFC refrigerants including R134A, R12, R22 as well as blends such as R404A, R407C, R408A, R 409A, R 410A, and others. Using state of the art microprocessor-controlled technologies, the eL-520 is fully automatic and requires very little power to operate thus increasing the battery life. A spare sensor housed in the battery compartment also ensures no downtime when sensors are damaged or need replacing.
AccuTools products are designed and manufactured in the U.S.A. under strict design and quality specifications. With a commitment to products that are designed for the real world and the real challenges of HVAC/R, AccuTools will help you get the job done quicker and more efficiently.
eL-520 Refrigerant Gas Leak Detector Features:
- Lightweight, ergonomic design
- Simple, one-button operation
- Two sensitivity modes, enabling quick and easy location of large and small leaks
- Sturdy blow-moulded carrying case
- Both visual and audible leak detection signal
- Long Battery Life – 2 AA batteries provide 40 hours of operation
- Low battery indicator
- Automatic power-off to conserve battery life
- Extra sensor stored inside the battery compartment.

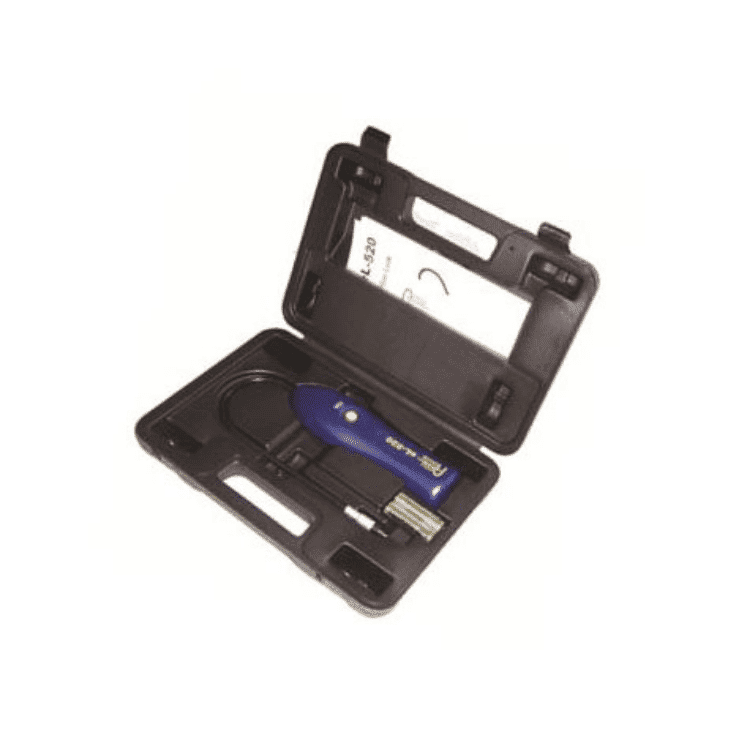

eL-520 Refrigerant Gas Leak Detector Includes:
1 x eL-520 Refrigerant Leak Detector w/ sensor, 1 x Sturdy Blow Molded Carrying Case, 1 x Spare Sensor, 2 x Batteries (AA Alkaline) and English Manual.
eL-520 Refrigerant Gas Leak Detector Specifications:
| Dimensions | 19 cm x 5.7 cm x 3.8 cm ( 7.25” x 2.25” x 1.5” ) |
| Weight | 190 grams (7 oz. ) |
| Batteries | 2 x 1.5V ‘AA’ Alkaline Batteries (3 VDC) |
| Battery Life | 40 Hours |
| Sensitivity | < 3g/year (0.1 oz/yr) |
| Sensor Lifetime | approx. 30 hours |
| Operating Temperature | 0 – 50°C ( 32 – 122°F) |
| Warm-up Time | < 2 sec. |
| Calibration | Automatic |
| Response Time | instantaneous |
| Reset Time | instantaneous |
| Probe Length | 30 cm (12” ) |
