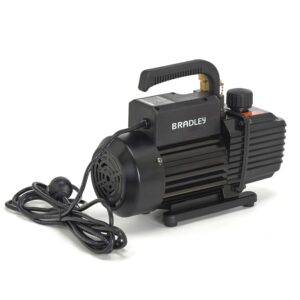

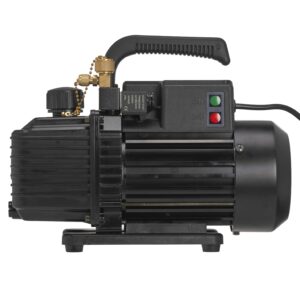

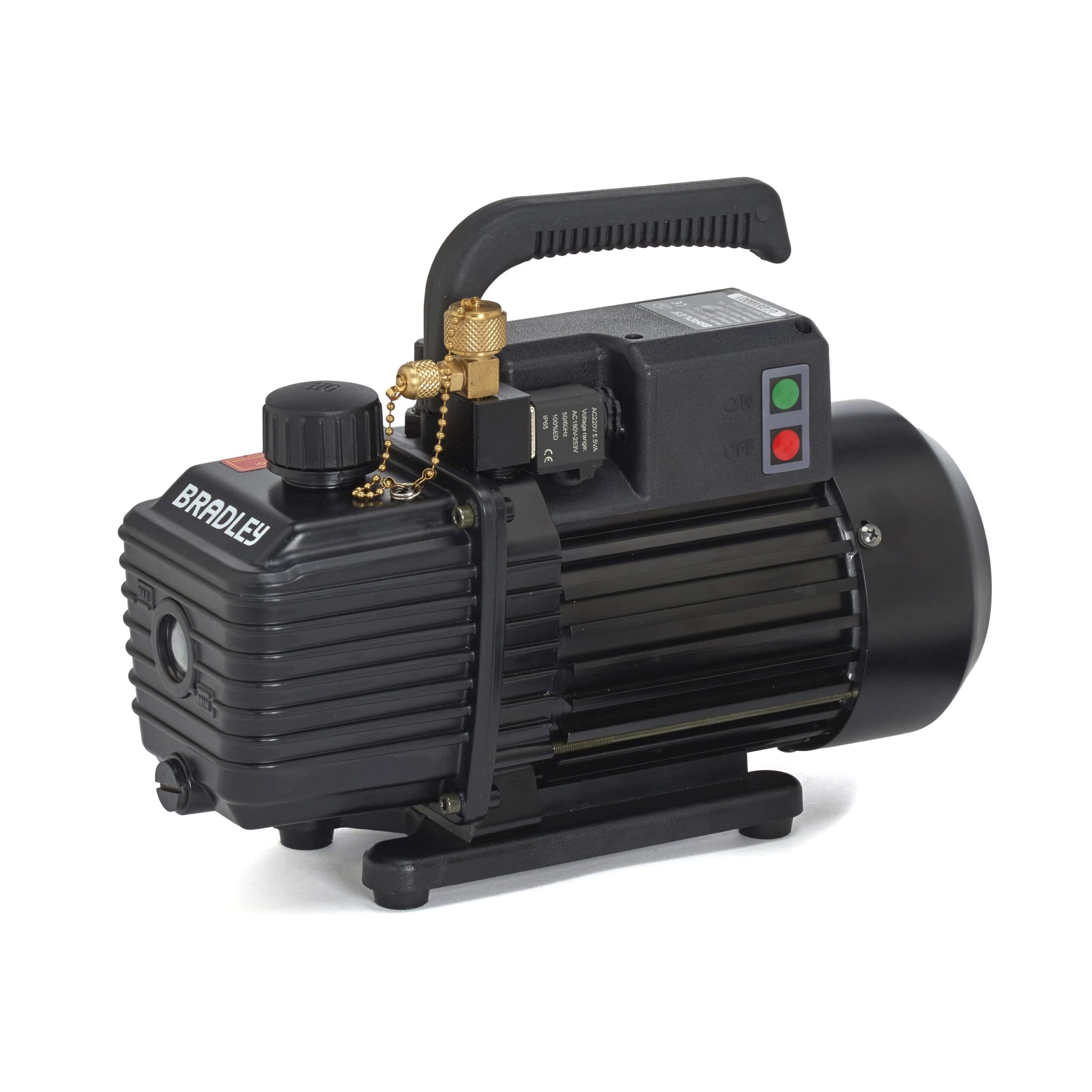

The BRADLEY Vacuum Pump Series, VP50s, Vp150S and VP250S are high-performance vacuum pumps engineered for HVAC/R professionals who demand excellent reliability and vacuum. Their unique design and high quality materials enable performance vacuum ratings on demand. Delivering a impressive 50, 150 or 250 litres per minute, they feature an integrated electronic solenoid valve to prevent oil backflow and maintains vacuum integrity if the power is disconnected for any reason.
Designed for system evacuation, leak testing, and refrigerant recovery, the Bradley vacuum pumps combines robust design with durable construction—making it a trusted choice for air conditioning and refrigeration professionals.
Features:
- 50, 150 or 250 L/min of free air displacement
- 15 micron ultimate vacuum
- 1/4″ and 3/8″ inlet valves
- Electronic solenoid valve
- Large oil drain and sight glass
- Gas ballast
- 5 Metre hardwired power cable
- Certified for use with A1 (R134A/ R410A) and A2L (R32 and R1234yf) refrigerants
- 24 month warranty
Options:
BRA-VP50S -1 x 50 L/min vacuum pump fitted with 5-metre cable and solenoid valve, 1x English operating instructions, oil, and 24-month warranty.
BRA-VP150S -1 x 150 L/min vacuum pump fitted with 5-meter cable and solenoid valve, 1x English operating instructions, oil, and 24-month warranty.
BRA-VP250S -1 x 150 L/min vacuum pump fitted with 5-metre cable and solenoid valve, 1x English operating instructions, oil, and 24-month warranty.
Specifications:
| BRA-VP50S | BRA-VP150S | BRA-VP250S | |
| Voltage | 240V – 50Hz | 240V – 50Hz | 240V – 50Hz |
| Free Air Displacement | 50 L/min (1.5 CFM) | 150 L/min (5 CFM) | 250 L/min (9 CFM) |
| Ultimate Vacuum | 15 Microns (2pa) | 15 Microns (2pa) | 15 Microns (2pa) |
| Solenoid Valve | Yes | Yes | Yes |
| Number of Stages | Two | Two | Two |
| Motor Power | 250W | 500W | 700W |
| Inlet Ports | ¼” & 3/8” SAE Flare | ¼” & 3/8” SAE Flare | ¼” & 3/8” SAE Flare |
| Oil Capacity | 350ml | 400ml | 600ml |
| Power Cord Length | 5 Metres (hardwired) | 5 Metres (hardwired) | 5 Metres (hardwired) |
| Dimensions | 290 x 125 x 235mm | 325 x 135 x 250mm | 360 x 155 x 270mm |
| Net Weight | 6kg | 9.5kg | 15kg |
