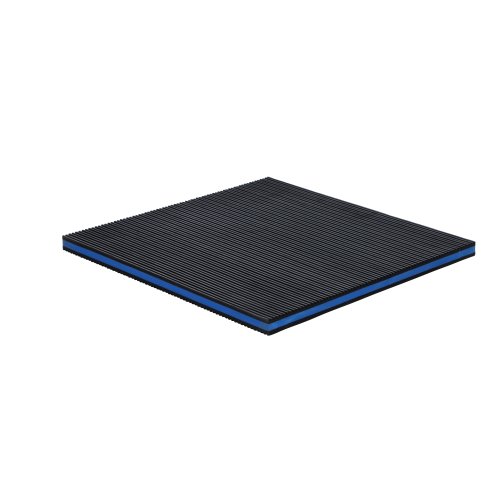

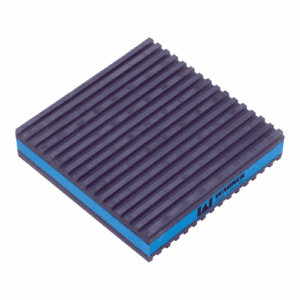

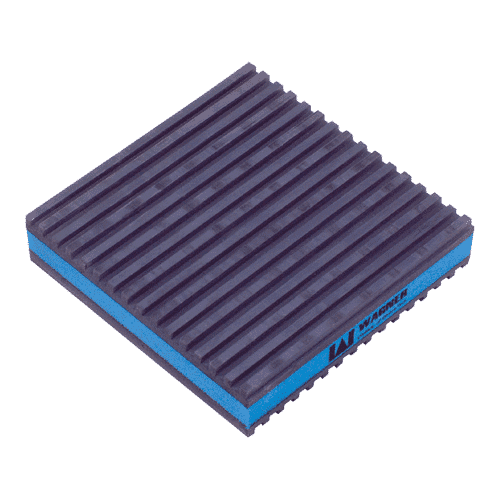

Diversitech E.V.A Anti-Vibratrion Pad

The BEST Performer E.V.A. (Extreme Vibration Attenuation) is the latest generation in vibration dampening technology.

$222.19$1,955.79 incl GST

Everyday Low Trade Price
Free Delivery Within Australia*
30 Day Hassle Free Returns
SKU: N/A Categories: ,

The BEST Performer E.V.A. (Extreme Vibration Attenuation) is the latest generation in vibration dampening technology. In the most severe vibration extremes, testing shows the E.V.A. pad outperforms cork and rubber by greater than 3:1 and outperforms our competitor’s “waffle” pad by greater than 8:1! The enhanced performance comes from the special composite foam center which is structurally more sound than cork. E.V.A. is not affected by oils or chemicals that can break down cork and is much more effective at vibration dampening than solid rubber. Designed to withstand 50 psi.

FEATURES:

  • Superior performance is due to the special composite polymeric foam centre
  • Rubber pads are corrugated on both sides and laminate to the polymeric foam rubber centre
  • The top and bottom ribs are 90 degrees opposed to one another which provides a natural resistance to “creep” or “walking” associated with vibrations
  • The EVA pad is highly resistant to water absorption, acid, alkali, gasoline, oil, aromatic hydrocarbons, ketones, oxidation and ozone
  • Ideal for air conditioners, refrigeration equipment, compressors, cooling towers, presses, machines or anywhere vibration control is needed
  • Designed to withstand loads of 50 psi
  • Can be used indoors or outdoors.

OPTIONS:

  • DT-MP-2E : CTN-48
  • DT-MP-3E : CTN-36
  • DT-MP-4E : CTN-24
  • DT-MP-6E : CTN-24
  • DT-MP-12E : CTN-12
  • DT-MP-18E : CTN-6

SPECIFICATIONS:

Part Code Description Length Width Depth Weight
MP-2E  EVA Anti-Vibration Mounting Pad – 50mm 50mm 50mm 20mm  0.036kg
MP-3E  EVA Anti-Vibration Mounting Pad – 50mm 80mm 80mm 20mm 0.075kg
MP-4E  EVA Anti-Vibration Mounting Pad – 50mm 100mm 100mm 20mm 0.146kg
MP-6E  EVA Anti-Vibration Mounting Pad – 50mm 150mm 150mm 20mm 0.342kg
MP-12E  EVA Anti-Vibration Mounting Pad – 50mm 305mm 305mm 20mm 1.395kg
MP-18E  EVA Anti-Vibration Mounting Pad – 50mm 460mm 460mm 20mm 2.97kg
Options:

DT-MP-12E, DT-MP-18E, DT-MP-2E, DT-MP-6E, DT-MP-3E, DT-MP-4E

Documents

Diversitech E.V.A Anti-Vibratrion Pad TDS

DiversiTech Anti Viabration Pads Flyer
