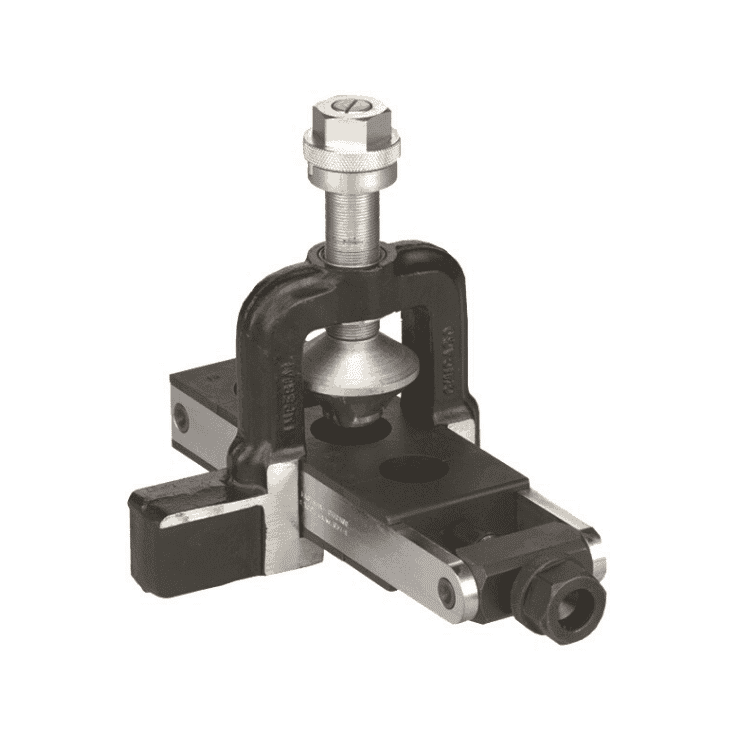

For use with soft copper, aluminium and brass tubing. Faceted, hard chrome-finished cone rolls out perfect 37° flares above die block – then automatically burnishes flare face. Original wall thickness is maintained at the base of flare. New slip-on yoke permits use in tight quarters where there is little space between nut and tube end. Larger handle, with better leverage, and precision threads on feed screw make flaring effortless.
FEATURES:
- For 3/4″, 7/8″, 1″ and 1 1/4″ OD tubing
- Forms 37-degree flares to government specifications in steel, stainless steel (including MIL-T-6845), titanium and other metal tubing.
- A positive stop gauge ensures the correct size of the flare
- Special burnishing action polishes flare face
- Three rollers in flaring cone roll out 37-degree flare above die block
- Extension on the yoke for clamping in a vice
- Satin chrome and black finish
- Furnished in a sturdy tool case.
INCLUDES:
1 x IMP-537F 37 Degree Rol-Air Flaring Tool, tool case, and Limited Lifetime Warranty.
SPECIFICATIONS:
- Tube O.D.: 3/4″, 7/8″, 1″, 1 1/4″
- Wall Thickness – 0.6″, 0.83″
- Flaring Angle: 37.0°
- Applicable Materials: Aluminum, Copper, Stainless Steel, Steel
- Weight: 5.9 kg
- Country of origin: USA.
