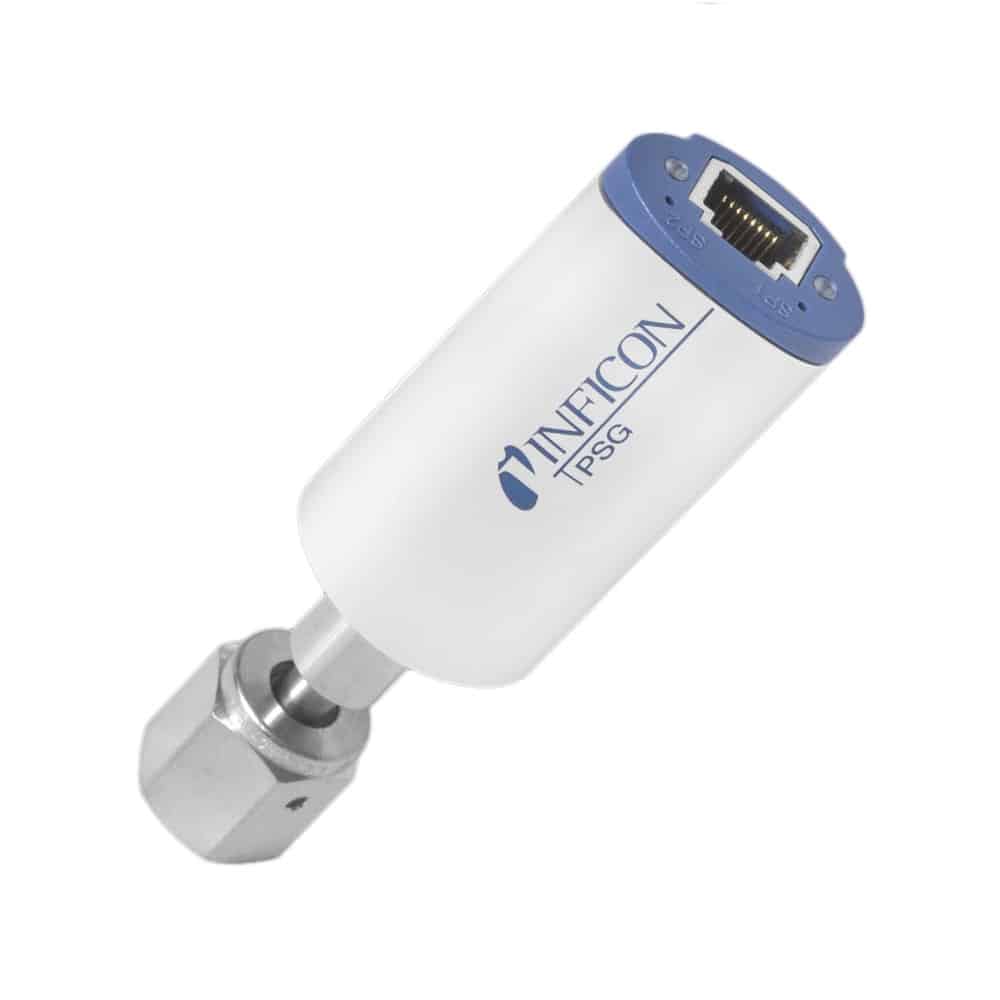

This Inficon PSG500-S digital Pirani standard gauge has a 4-VCR (1/4″), 2 setpoints and stainless steel measuring cell with a tungsten filament and metal-sealed feedthrough.
The Inficon PSG5xx series gauges feature a compact, streamlined design, with a rugged aluminium housing and replaceable stainless steel sensor cell, qualifying them for use on semiconductor systems and for standard applications, such as forelines.
Measurement range (air, 02, CO, N2) is 5 x 10-4 to 1000mbar (3.75 x 10-4 to 750 Torr). One tactile switch for ATM and HV makes adjustments simple.
PSG500 series gauges can mount in any orientation and logarithmic signal output through the RJ-45 connector makes integration easy.
FEATURES:
- 1:1 compatible to TTR 91 and TTR 96 Pirani Transmitter Series
- Easy push button ATM and HV adjustment
- Space-saving rugged design
- Aluminium housing
- Mounts in any orientation
- Stainless steel measuring cell with metal-sealed feedthrough
- Logarithmic signal output for easy integration
- 10 bar absolute overpressure with threaded connections
- 250 °C bakeable version
- Nickel filament option for corrosive applications
- Ceramic feedthrough for extremely corrosive applications (PSG510 & PSG512)
- Optional setpoints
- RoHS compliance.
APPLICATIONS:
- Controlling high vacuum ionization gauges
- Fore vacuum pressure monitoring
- Safety circuits in vacuum systems
- General vacuum measurement and control in the fine and rough vacuum range.
INCLUDES:
1 x Inficon 350-085 PSG500-S Vacuum Gauge, 1 x English manual and 12-month warranty.
SPECIFICATIONS:
| Type | PSG500 tungsten | PSG500-S tungsten, setpoints | PSG502-S nickel, setpoints | |
|---|---|---|---|---|
| Measuring principle | thermal conductance according to Pirani | thermal conductance according to Pirani | thermal conductance according to Pirani | |
| Accuracy(N2) | ||||
| 1 x 10-3 … 100 mbar | % of reading | ±15% | ||
| 5 x 10-4 … 1 x 10-3 mbar | % of reading | ±50% | ||
| 100 … 1000 mbar | % of reading | ±50% | ||
| Repeatability (air) | ||||
| 1 x 10-3 … 100 mbar | % of reading | 2% | 2% | 2% |
| Output signal (measurement signal) | ||||
| Voltage range | V | 0 … +10.3 | 0 … +10.3 | 0 … +10.3 |
| Measurement range | V | +1.9 … +10.0 | +1.9 … +10.0 | +1.9 … +10.0 |
| Measurement range (air, 02, CO, N2) | mbar | 5 x 10-4 to 1000 | 5 x 10-4 to 1000 | 5 x 10-4 to 1000 |
| Setpoint | ||||
| Setting range | mbar | ‒ | 2 x 10-3 … 500 | 2 x 10-3 … 500 |
| Number of setpoints | Number of setpoints | none | 2 | 2 |
| Hysteresis | % of reading | ‒ | 10% above lower threshold | 10% above lower threshold |
| Relay contact | ‒ | 30 | 30 | |
| Relay contact: Switching time | ms | ‒ | <20 | <20 |
| Supply voltage | ||||
| At gauge | V (dc) | +14 …+30 | +14 …+30 | +14 …+30 |
| Ripple | V (p-p) | ≤1 | ≤1 | ≤1 |
| Voltage vs. pressure | logarithmic 1.286 Volts per decade | logarithmic 1.286 Volts per decade | logarithmic 1.286 Volts per decade | |
| Internal volume | ||||
| DN 16 ISO-KF, DN 16 CF-R, 7/16-20 UNF | cm³ (in.³) | 1.5 (0.092) | 1.5 (0.092) | 1.5 (0.092) |
| DN 16 ISO-KF & DN 16 CF-R long tube | cm³ (in.³) | 10 (0.61) | 10 (0.61) | 10 (0.61) |
| 1/8” NPT , 4 VCR, 8 VCR, 1/2” tube | cm³ (in.³) | 2 (0.122) | 2 (0.122) | 2 (0.122) |
| Admissible temperature | ||||
| Operation | °C | +5 … +60 | +5 … +60 | +5 … +60 |
| Vacuum connection (1) | °C | 80 / 250 (2) | 80 / 250 (2) | 80 / 250 (2) |
| Storage | °C | -20 … +65 | -20 … +65 | -20 … +65 |
| Weight | ||||
| DN 16 ISO-KF, 7/16-20 UNF | g | 80 | 80 | 80 |
| DN 16 CF-R, 4 VCR | g | 100 | 100 | 100 |
| 1/8” NPT, 1/2” tube | g | 70 | 70 | 70 |
| 8 VCR, DN 16 ISO-KF long tube | g | 130 | 130 | 130 |
| DN 16 CF-R long tube | g | 140 | 140 | 140 |
| Error signal | V | 0 … +0.5 (filament rupture) | 0 … +0.5 (filament rupture) | 0 … +0.5 (filament rupture) |
| Output impedance | Ω | 2 x 4.7 | 2 x 4.7 | 2 x 4.7 |
| Minimum loaded impedance | kΩ | 10, short-circuit proof | 10, short-circuit proof | 10, short-circuit proof |
| Response time | ms | 80 | 80 | 80 |
| Gauge identification | kΩ | 27.0, referenced to supply common | 27.0, referenced to supply common | 27.0, referenced to supply common |
| Adjustment | one tactile switch for ATM and HV adjustment | one tactile switch for ATM and HV adjustment | one tactile switch for ATM and HV adjustment | |
| Current consumption | mA | <500 (max. starting current) | <500 (max. starting current) | <500 (max. starting current) |
| Power consumption | W | ≤1 | ≤1 | ≤1 |
| Electrical connection | FCC 68 / RJ45 appliance connector, 8 poles, male | FCC 68 / RJ45 appliance connector, 8 poles, male | FCC 68 / RJ45 appliance connector, 8 poles, male | |
| Sensor cable | 8 poles plus shielding | 8 poles plus shielding | 8 poles plus shielding | |
| Cable length | m | ≤100 (8 x 0.14 mm2) | ≤100 (8 x 0.14 mm2) | ≤100 (8 x 0.14 mm2) |
| Materials exposed to vacuum | glass, Ni, NiFe, DIN 1.4301 / 1.4305 / 1.4435 | glass, Ni, NiFe, DIN 1.4301 / 1.4305 / 1.4435 | glass, Ni, NiFe, DIN 1.4301 / 1.4305 / 1.4435 | |
| Filament | W | W | Ni | |
| Admissible pressure | bar (absolute) | 10, limited to inert gases | 10, limited to inert gases | 10, limited to inert gases |
| Mounting orientation | any | any | any | |
| Degree of protection | IP40 | IP40 | IP40 | |
