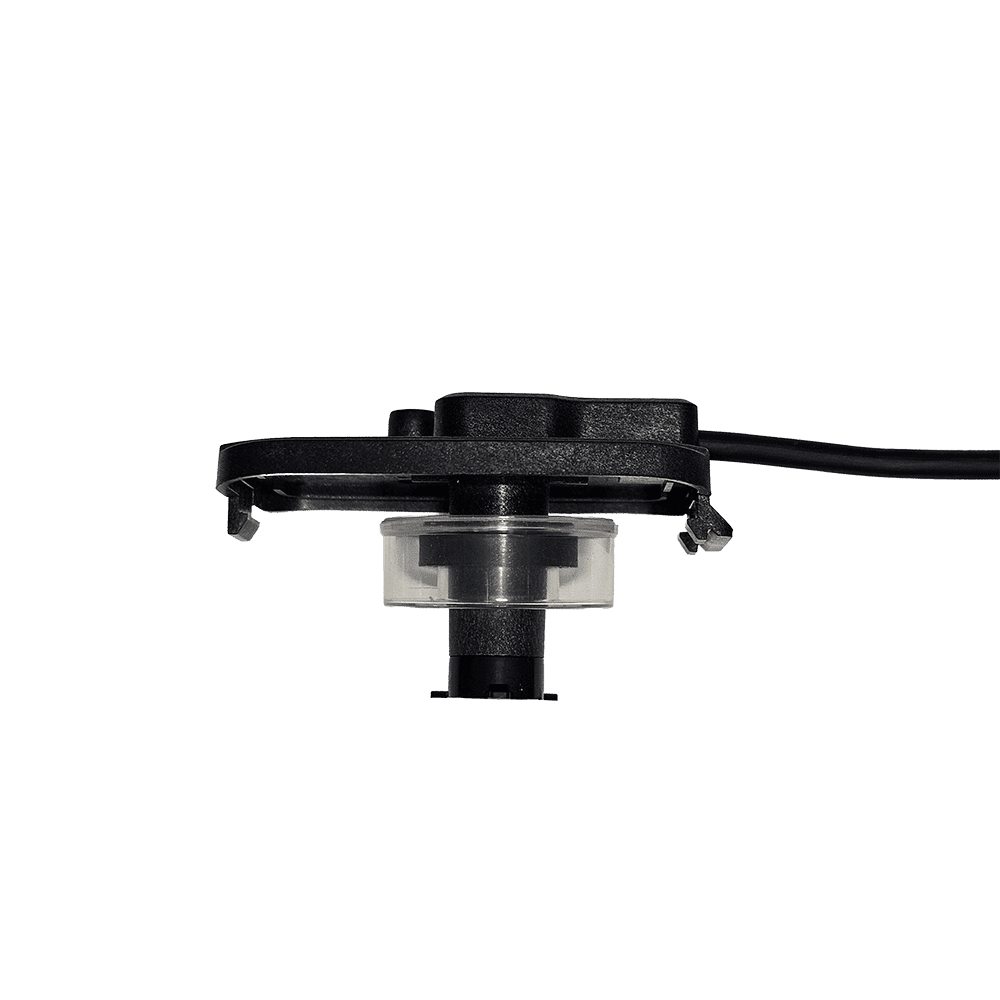

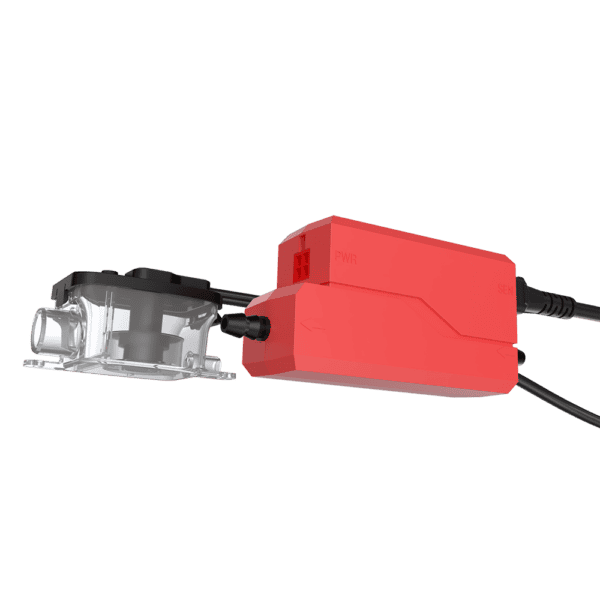

A mini condensate pump in the REDBOX series of pumps.
Designed to automatically remove the drainage liquid produced by air conditioners of a maximum 7kW cooling capacity.
Key Features
- Use with Air conditioner (Max. 7kW)
- Power supply 100-240V, 50-60Hz
- Electrical output 3W
- Safety switch contacts Max. 3A
- Max. suction head 3m
- Max. discharge head 15m
- Max. flow rate at zero head 20 LPH
- Fluid Fresh water of 1~40°C
- Non-continuously rated operating time 3 minutes
- Decibel rating 21 DB(A)
- Working without fluid coming through the pump less than 1 minute only
- Pump size (LxWxH) 119 x 31.5 x 50mm
- Reservoir size (LxWxH) 75 x 43.2 x 40.3mm
- Drink cycle 12ml
Part No. Content
- Part Name: REDBOX-COMPACT
- Description: REDBOX MINI COMPACT CONDENSATE PUMP
- Suitable for use on: AC MAX 7kW
- Quantity: 1
- Brand: REDBOX
- Max flow: at 0 head – 20LPH
- dB A: 21
- HZ: 50-60
- External dimensions height: 50mm
- External dimensions width: 31.5mm
- External dimensions depth: 119mm
