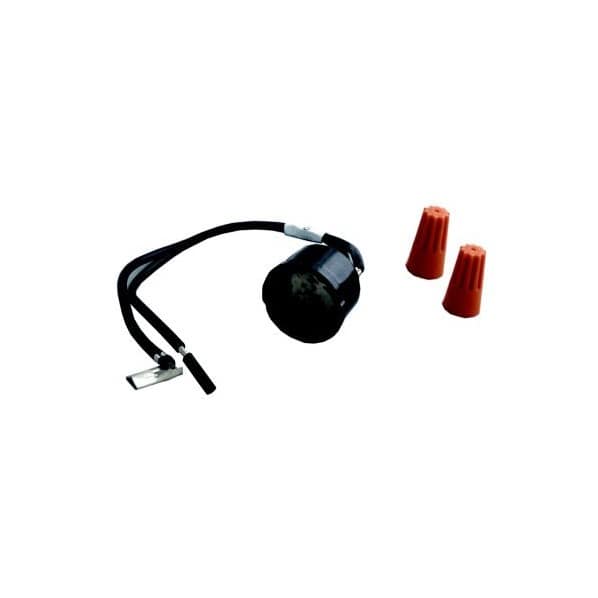

Supco Overload Universal Motor Protector provides thermal protection for HVAC and refrigeration motors to help prevent overheating.
Features
- Built in temperature activated disc opens and closes the motor overload protector’s contacts
- Protects compressor or motor from excessive high heat situations
- UL® & CSA Approved
- Universal replacement overload
Specifications
SUP-OV34
| Locked rotor amps: | 14.0-15.5 |
| hp @ 120 VAC: | 1/12 thru 1/5 |
| hp @ 240 VAC: | 1/10 thru 1/3 |
SUP-OV36
| Locked rotor amps: | 16.0-18.0 |
| hp @ 120 VAC: | 1/10 thru 1/4 |
| hp @ 240 VAC: | 1/5 thru 1/3 |
SUP-OV38
| Locked rotor amps: | 18.5-22.0 |
| hp @ 120 VAC: | 1/10 thru 1/4 |
| hp @ 240 VAC: | 15 thru 1/2 |
SUP-OV40
| Locked rotor amps: | 22.5-26.5 |
| hp @ 120 VAC: | 1/6 thru 1/4 |
| hp @ 240 VAC: | 1/4 thru 1 |
SUP-OV42
| Locked rotor amps: | 27.0-31.0 |
| hp @ 120 VAC: | 1/6 thru 1/4 |
| hp @ 240 VAC: | 1/4+ thru 1 |
Applications
- Electric motors
- Appliances
- Heating equipment
- Room air conditioners
- Refrigeration equipment
