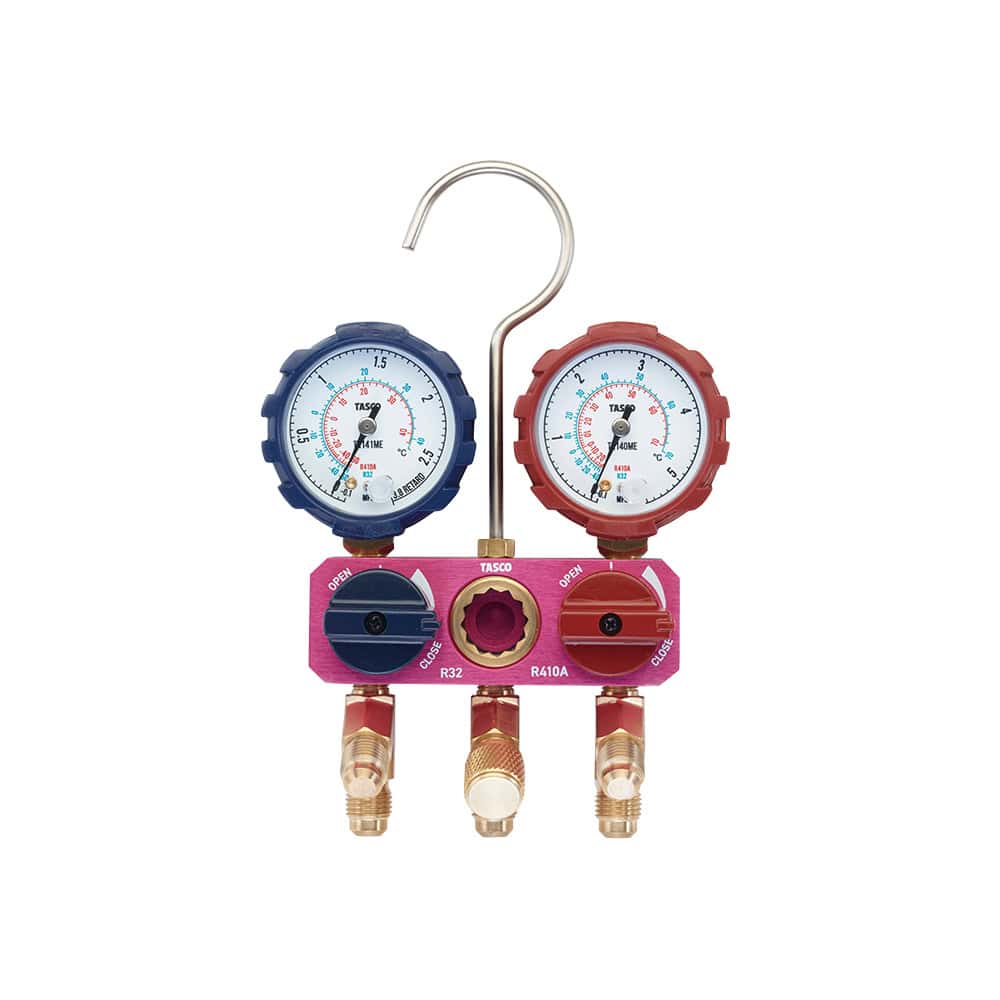

Compact and lightweight, the TA122ME-EXP is a mini ball valve manifold designed for R410A and R32 systems. It features easy-to-use quarter-turn ball valves, 5/16″ flare fittings, and accurate 52 mm gauges, making it ideal for quick, reliable pressure checks in tight spaces.
Features:
- Ball Valve Open / Close knob
- Easy to open and close
- Large diameter passage for shortening the vacuum and charging time
- 1/8″ NPT thread
- R32 / R410A : 5/16″(1/2-20UNF) fittings
- 52mm Gauges
Specifications:
| Feature | Specification |
|---|---|
| Design | Palm-sized manifold with large sight glass |
| Valve Type | Ball-valve switch valves |
| Pressure Gauge Port | 1/8″ NPT |
| Hose Connections | 5/16″ (½-20 UNF) flare connectors |
| Gauge Compatibility | TA140ME (–0.1 to 5.5 MPa); TA141ME (–0.1 to 3.8 MPa) |
| Refrigerants Supported | R410A, R32 with PSI/kPa scales |
Includes:
1 x TA122ME-EXP Mini Ball Valve Manifold with 55m Gauges
12 Month Warranty
