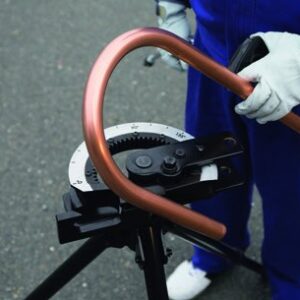

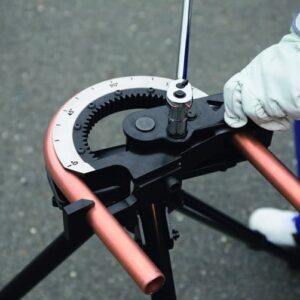

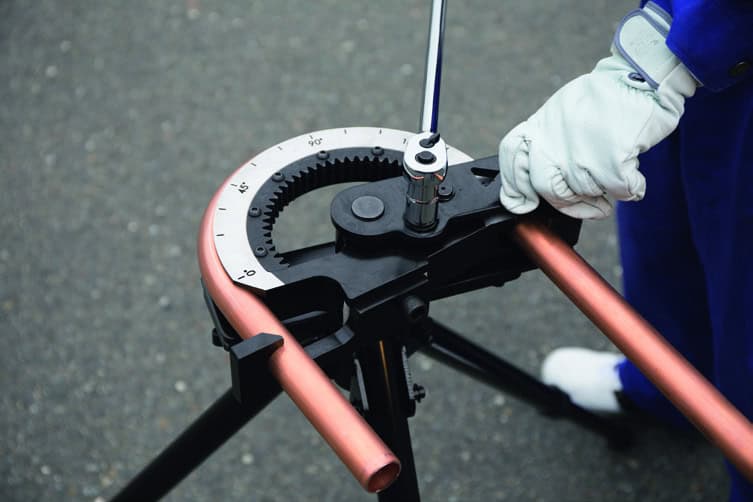

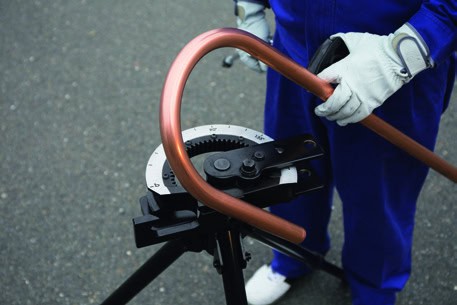

The Tasco TA515M-S1 is a manual, gear-driven straight tube bending kit designed for professional HVAC and refrigeration work, delivering clean, precise bends on copper tubingāeven without the need for electricity or motors.
Features:
- Easy bending for large O.D. tubes. Easy to carry and assemble
- Manual Gear Mechanism: Offers reliable, precise bending without electricityāperfect for remote or confined job sites where power supply is limited.

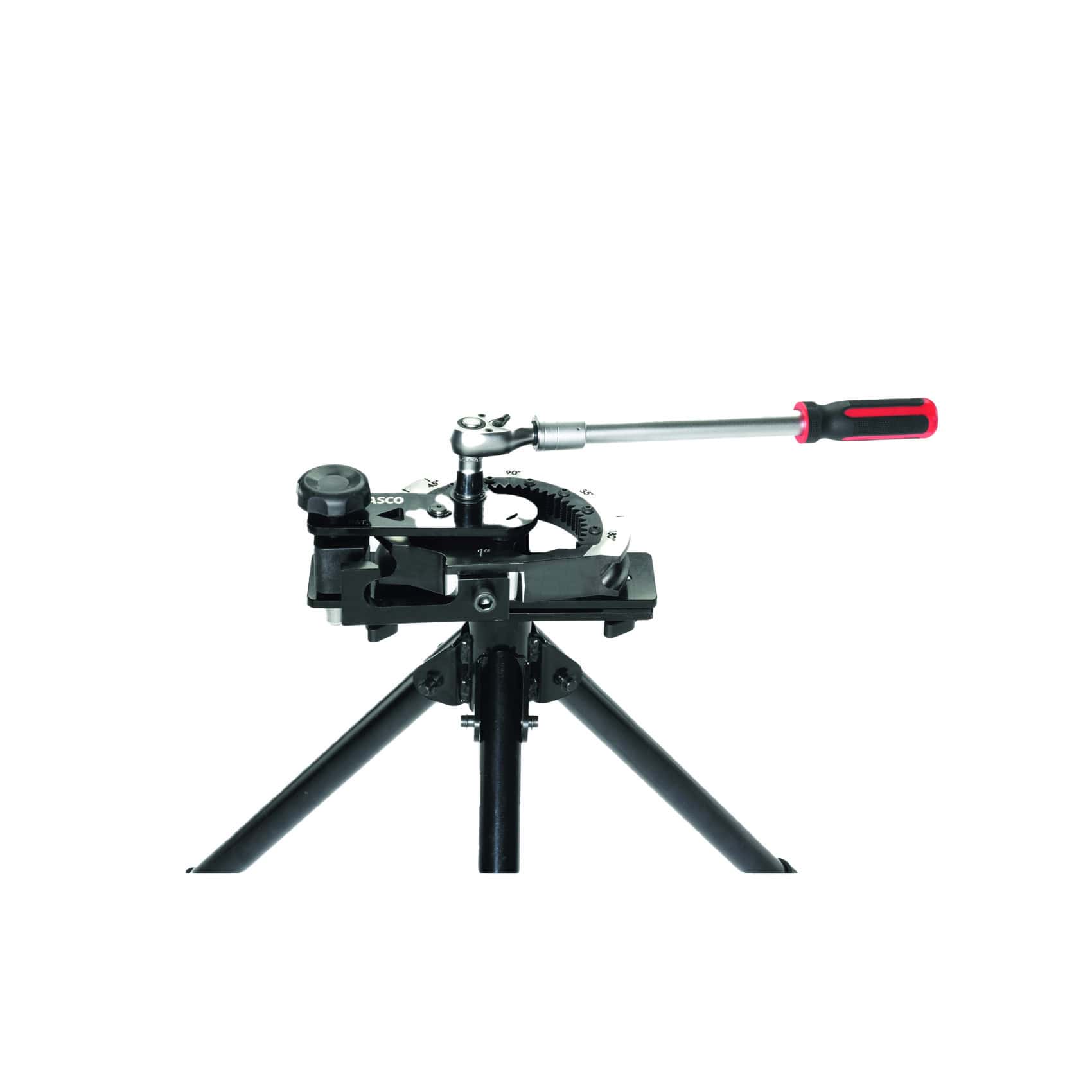

- Modular Flexibility: Interchangeable bender heads make it adaptable for multiple tube diameters, while the tripod mount stabilizes the tool for accurate bends with minimal effort.

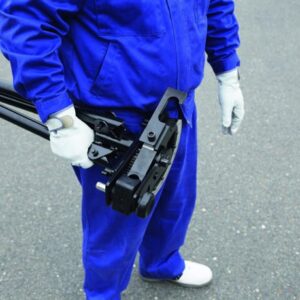

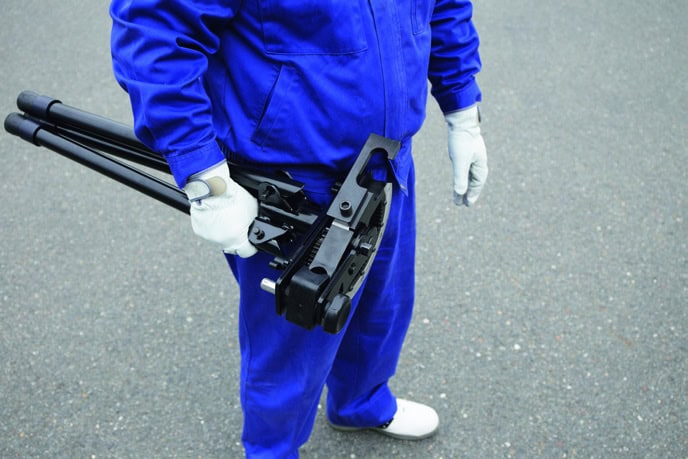

- Portable & Organized: Though robust, the entire set is designed for transport in a dedicated bag, facilitating mobility across worksites.
Specifications:
| PART NO | TA515M-S1 |
| Tubes | For soft and hard copper tubes |
| Radius | R=4D |
| Bend up to | 180Ā° |
| Length of tripod/weight | Min. 550 mm ļ½ Max. 790mm / 6.9kg |
| Weight of Former 7/8ā | 4.5kg |
| Weight of Former 1ā | 5.0kg |
| Weight of Former 1-1/8ā | 5.4kg |
| Dimensions of Carrying Case | W670ĆD330ĆH300 |
| Ratchet Wrench | Length: 420ļ½660mmĀ Drive Angle: 1/2 square with 17mm socket |

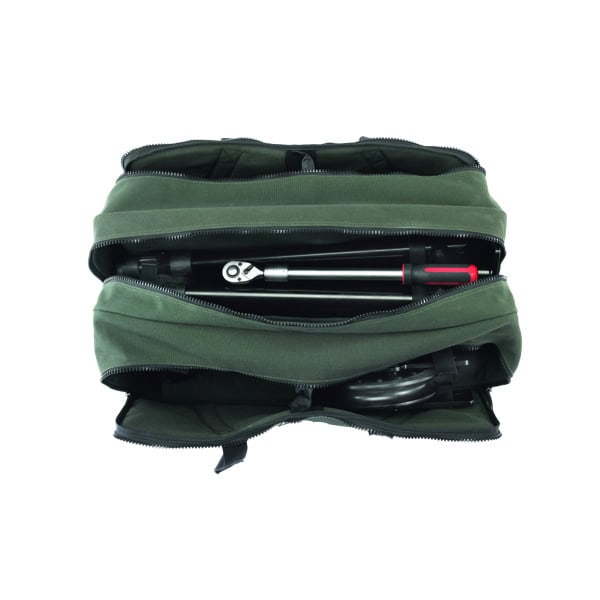

| Set contents | Bender former and guide: 7/8ć, 1ā, 1-1/8ļ¼, Tripod, Ratchet wrench, Carrying bag |
Includes:Ā
Bender former and guide: 7/8ć, 1ā, 1-1/8ļ¼, Tripod, Ratchet wrench, Carrying bag
