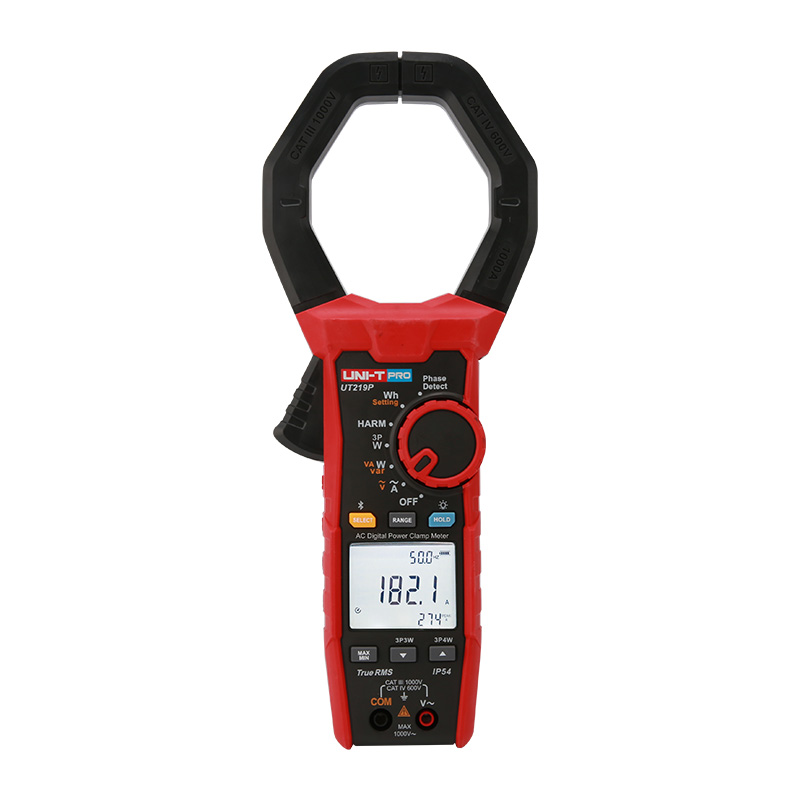

The UNI-T UT219P is a professional AC digital power clamp meter designed for electrical power measurement, troubleshooting, and maintenance. It combines current and voltage measurement with single-phase and three-phase power analysis, harmonic measurement, power factor, and phase sequence testing. Its large 75 mm jaw, True RMS measurement, and Bluetooth connectivity make it suitable for electrical equipment, distribution cabinets, photovoltaic systems, and industrial applications.
FEATURES
- True RMS measurement
- AC current measurement up to 1000 A
- AC voltage measurement up to 1000 V
- Single-phase and three-phase power measurement
- Three-phase power measurement up to 3000 kW
- Harmonic measurement up to 32nd order
- Total Harmonic Distortion (THD) measurement
- Power factor and phase sequence measurement
- AC/DC peak measurement
- Large 75 mm clamp jaw
- Bluetooth 5.0 connectivity
- 9999-count LCD display
- Data hold and Max/Min functions
- High-voltage and overload warnings
- CAT III 1000 V / CAT IV 600 V safety rating
- IP54 protection rating
INCLUDES
- 1 × UNI-T UT219P AC Digital Power Clamp Meter
SPECIFICATIONS
- AC Current Range: 1000 A
- AC Current Accuracy: ±(1.5% + 3)
- AC Voltage Range: 1000 V
- AC Voltage Accuracy: ±(0.7% + 3)
- Single-Phase Power: 1000 kW
- Three-Phase Power (3-Wire): 1732 kW
- Three-Phase Power (4-Wire): 3000 kW
- Power Frequency: 15 Hz–1000 Hz
- Phase Angle: -180° to 179.9°
- Power Factor: -1 to 1
- Jaw Opening: 75 mm
- Phase Detection: 80 V–1000 V
- Harmonic Measurement: Up to 32nd Harmonic
- Display Count: 9999
- Auto Power Off: Approximately 15 minutes
- Safety Rating: CAT III 1000 V / CAT IV 600 V
- Protection Rating: IP54
- Bluetooth: Bluetooth 5.0
