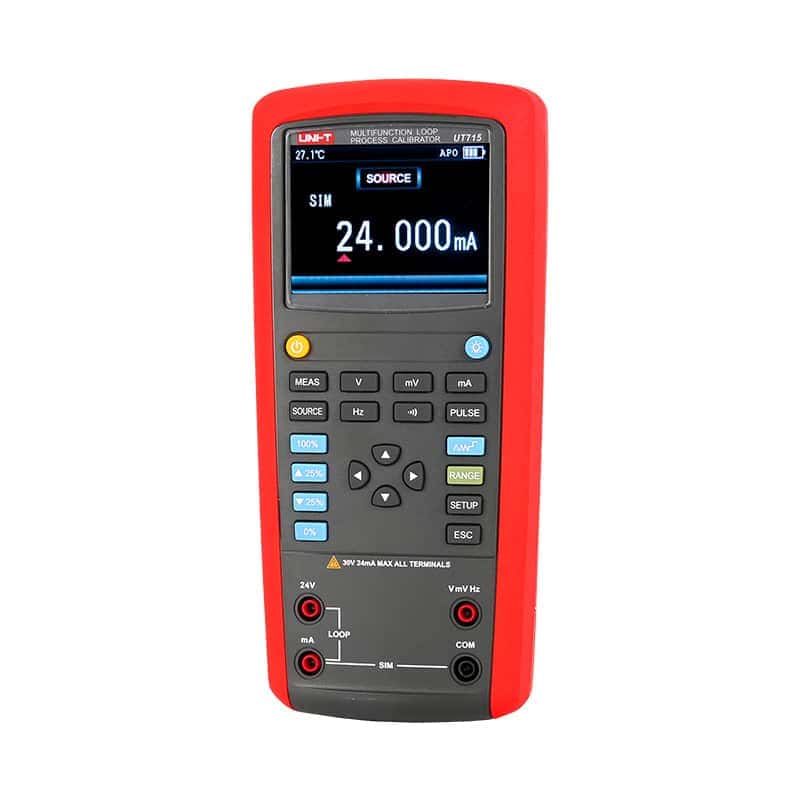

Uni-T UT715 Multifunction Loop Process Calibrator

UT715 multifunction loop process calibrator, measures and sources loop current and voltage.

Original price was: $1,385.99.Current price is: $1,247.39. incl GST

Please allow up to 14 days for item to be shipped

Everyday Low Trade Price
Free Delivery Within Australia*
30 Day Hassle Free Returns
SKU: UT715 Categories: , ,

The UT715 multifunction loop process calibrator, measures and sources loop current and voltage. It is designed with 0.02% accuracy, adjustable backlight and auto power off. It is a powerful tool for the calibration, repair, and maintenance of mA loops.

FEATURES:

  • Step/ramp functions
  • Source and measure accuracy up to 0.02%
  • Rechargeable battery
  • Contrast adjustment
  • Auto power off (Time adjustable)
  • Stores and recalls setups
  • USB communication
  • Provides 24V loop power to the transmitter while conducting mA current measurement at the same time.

INCLUDES:
1 x  UT715, Test lead, USB cable, power adapter, 1 x English manual and 12-month warranty.

SPECIFICATIONS:

Specifications Range UT715
Measurement
DC voltage (V) 200mV/30V ±(0.02%+2)
DC current (mA) 20mA ±(0.02%+2)
Loop current (mA) 20mA ±(0.02%+2)
Frequency (Hz) 100Hz/1kHz/10kHz/100kHz ±(0.01%+1)
Continuity test
Source
DC voltage (V)  100mV/1000mV/10V ±(0.02%+10)
DC current (mA) 20mA/20mA (SIM) ±(0.02%+2)
Frequency (Hz) 200Hz/2000Hz/20kHz ±(0.01%+1)
Pulses (Hz) 100Hz/1kHz/10kHz ±1
Loop power output 24V ±10%
Display count 20000
Operation temperature  -10°C~55°C
General Characteristics
Power 1.2V x 6 AA rechargeable battery
Product net weight 650g
Product size 195mm x 95mm x 58mm
Standard accessory Test lead, USB cable, power adapter, English manual
