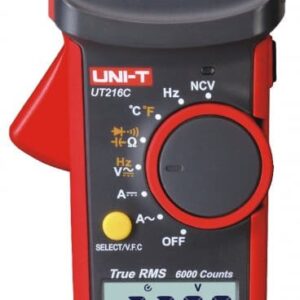

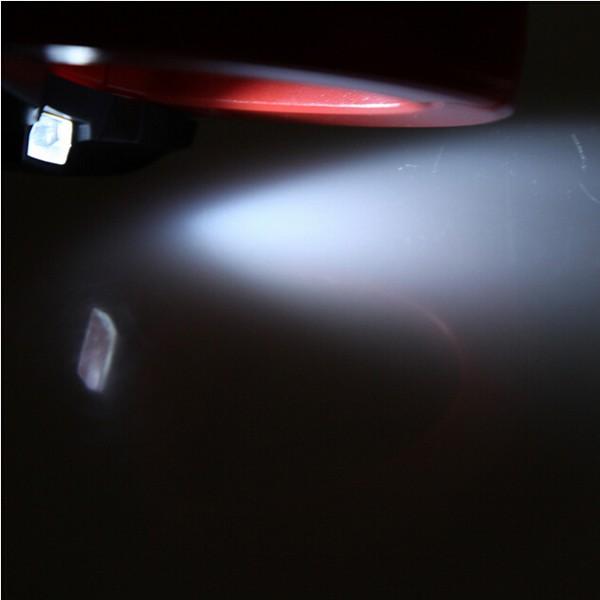

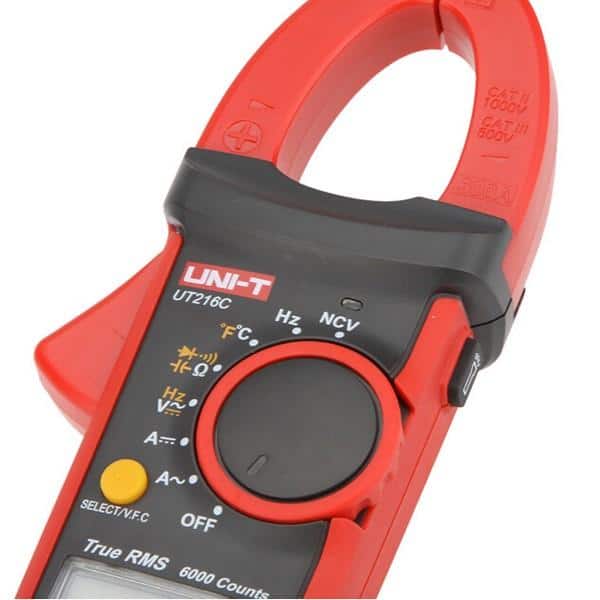

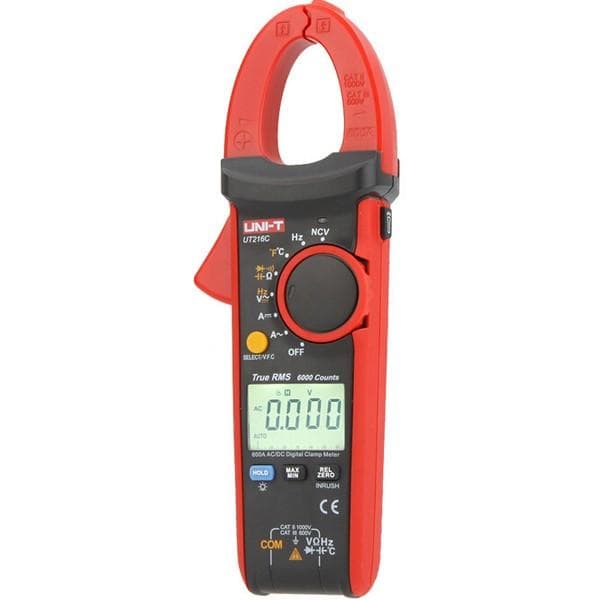

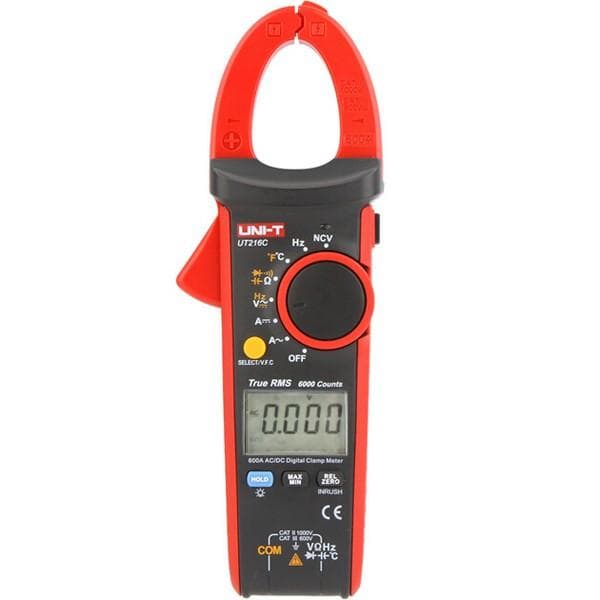

UNI-T’s UT216C is a 600A True RMS digital clamp meter with CAT III safety standards. These meters are designed with higher performance and safety ratings. a built-in flashlight also makes these meters useful tools when working in dark environments.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
UT216C 600A True RMS Digital Clamp Meter Features:
- CAT III 1000V / CAT IV 600V rating
- K-type temperature probe
- 600A AC/DC measurement
- Auto range
- 4000 display count, 3/s sampling rate
- True RMS
- NCV, non-contact voltage
- Frequency and duty ratio
- MAX/MIN/relative modes

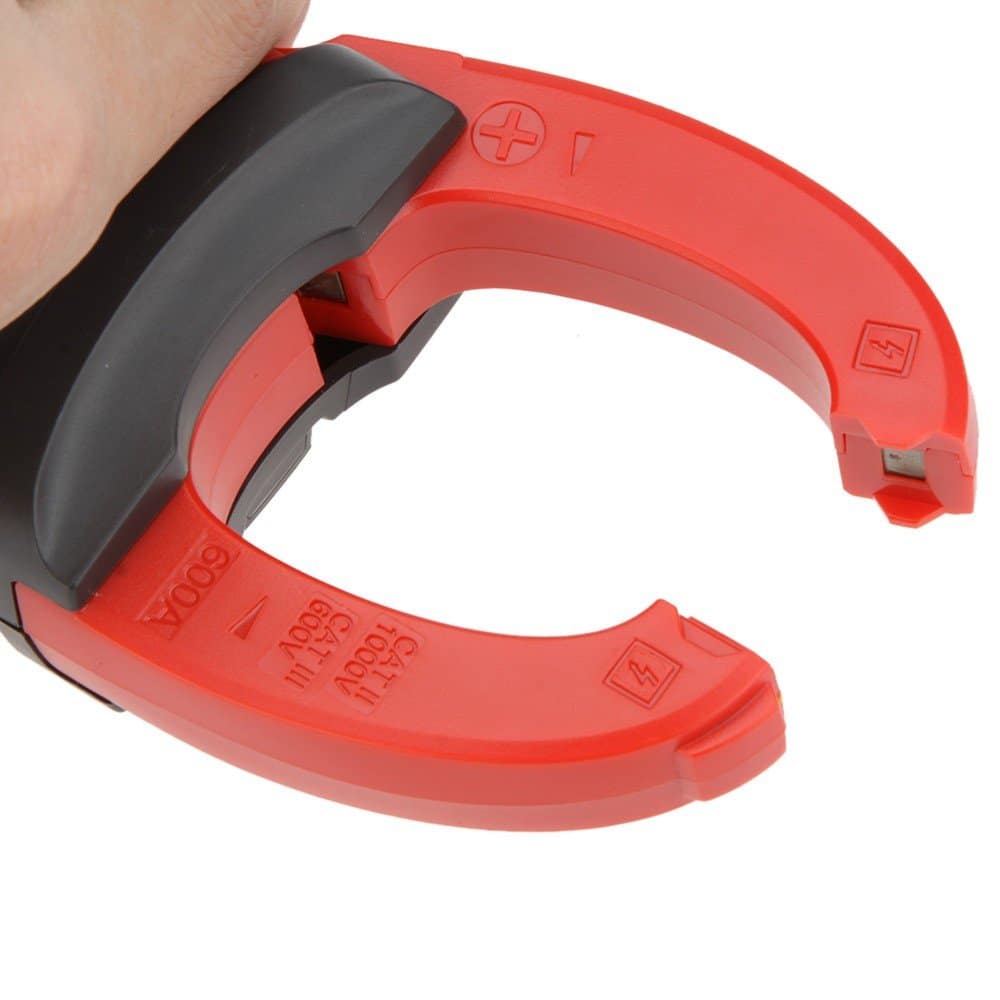

- 30mm large jaw
- Data hold; LCD backlight
- Auto power off
- 12-month warranty.

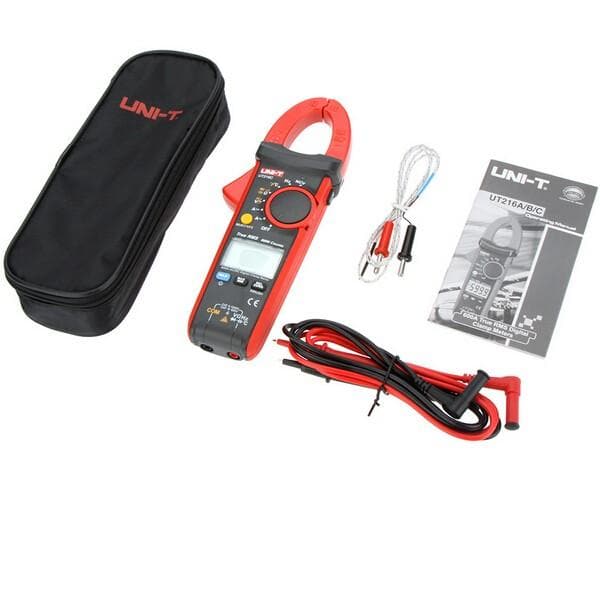

UT216C 600A True RMS Digital Clamp Meter Includes:

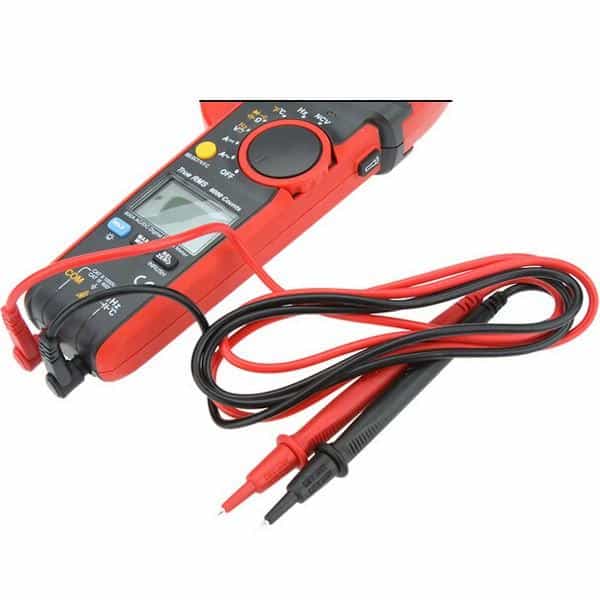

1 x UT216C, Batteries, Test Leads, 1 x Point Contact Temperature Probe, 1 x Carrying Bag, 1 x English user manual, and 12-month warranty.
UT216C 600A True RMS Digital Clamp Meter Specifications:
| Specifications | Range | UT216C |
| AC current (A) | 600A | ±(2.5%+5) |
| AC current frequency response | 40~400Hz | |
| DC current (A) | 600A | ±(2.5%+5) |
| AC voltage (V) | 750V | ±(1.2%+5) |
| AC voltage frequency response | 40~400Hz | |
| DC voltage (V) | 1000V | ±(0.8%+1) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Frequency (Hz) | 10Hz~1MHz | ±(0.1%+4) |
| Temperature | -40°C~1000°C | ±(2%+5) |
| -40°F~1832°F | ±(2%+10) | |
| Features | ||
| Display count | 6000 | |
| Auto range | √ | |
| Jaw opening | 30mm | |
| True RMS | √ | |
| Diode | Around 3.0V | √ |
| V.F.C. | √ | |
| NCV | √ | |
| Data hold | √ | |
| Relative mode | √ | |
| MAX/MIN | √ | |
| LCD backlight | √ | |
| Inrush current | √ | |
| OLED display | ||
| Analog bar graph | 61 | |
| Flashlight | √ | |
| Auto power off | √ | |
| Continuity buzzer | √ | |
| Low battery indication | ≤3.6V | √ |
| Input protection | √ | |
| Input impedance for DCV | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 38mm x 24mm | |
| Product color | Red and grey | |
| Product net weight | UT216C 231.7g | |
| Product size | 220mm x 75mm x 40mm | |
| Standard accessories | Batteries, test leads, point contact temperature probe (UT216C/UT216D) | |
| Standard individual packing | Carrying bag, English manual | |
