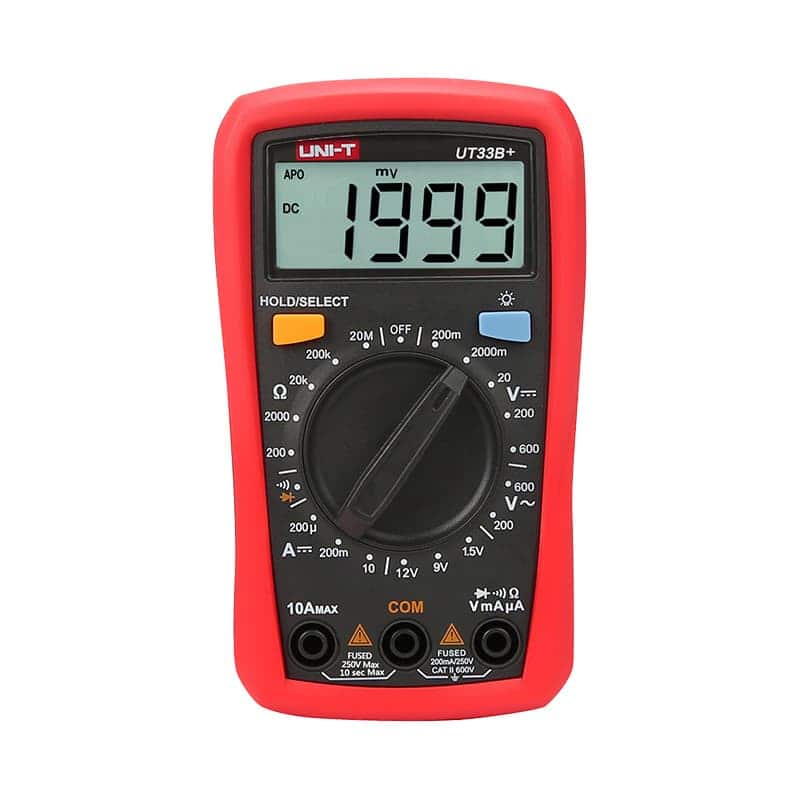

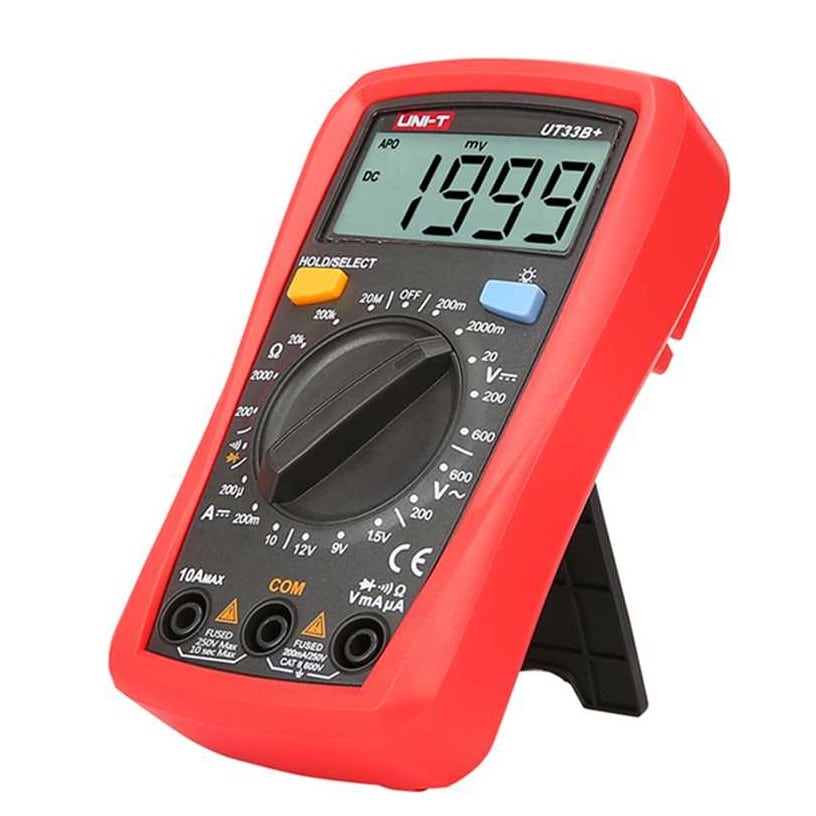

The new generation UT33B+ redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2-meter falls (drop-proof). The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
UT33B+ Palm Size Multimeter Features:
- Max LCD display count 2000
- CAT II 600V
- Manual Range
- AC/DC Voltage
- DC Current
- Diode Test
- 2m Drop Proof
- Test probe holder
- Continuity Buzzer
- Auto power off
- Auto backlight off
- Unique battery test feature: Displays ‘good’, ‘low’, and ‘bad’ statuses when testing 1.5V/9V/12V batteries
- 12 Month Warranty.
UT33B+ Palm Size Multimeter Includes:
1 x UT33B+ , 1 x manual, 1 x Batteries 1 x Test Leads.
UT33B+ Palm Size Multimeter Specifications:
| Specifications | Range | UT33B+ |
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) |
| AC voltage (V) | 200V/600V | ±(1.2%+3) |
| DC current (A) | 200μA/200mA/10A | ±(1%+2) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ /200kΩ/20MΩ | ±(0.8%+2) |
| Features | ||
| Display count | 2000 | |
| Auto power off/Auto backlight off | √ | |
| Diode test/Continuity buzzer | √ | |
| 2m drop test/ Test probe holder | √ | |
| Range selection | Manual | |
| Battery test | 1.5V/9V/12V | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 66mm x 51mm | |
| Product net weight | Red and grey | |
| Product colour | 206g (batteries included) | |
| Product size | 134mm x 77mm x 47mm | |
| Standard accessories | Batteries, test leads | |
