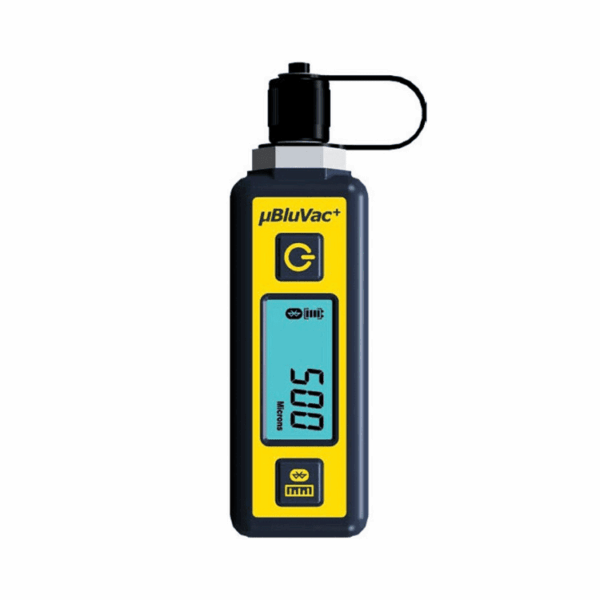

The low-cost AccuTools® BluVac+ Micro Wireless Digital Micron Gauge represents a breakthrough in economical vacuum measurement. Small and light enough to fit in a shirt pocket, the BluVac+ Micro has Bluetooth Smart® wireless capability and is a full-featured basic micron gauge that utilizes our famous patented BluVac+ technology to provide the highest accuracy and dependability at the lowest possible cost. The BluVac+ Micro accurately and quickly measures vacuum in Microns, Pascals, Millibar, mmHg, and Torr with a resolution down to 1 micron. Sporting a large back-lit display, the BluVac+ Micro operates for up to 100 hours on two AAA batteries and at temperatures below freezing.
The BluVac+ Micro can be operated stand-alone or in conjunction with an iOS or Android compatible app.
Innovative Oil Sensor and Self-Diagnostics ensure accuracy. The BluVac+ series of Micron Gauges are the only field-calibratable vacuum gauges that require no special equipment for calibration.
AccuTools products are designed and manufactured in the U.S.A. under strict design and quality specifications. With a commitment to products that are designed for the real world and the real challenges of HVAC/R, AccuTools will help you get the job done quicker and more efficiently.
BluVac+ Micro Wireless Digital Vacuum Gauge Features:
- Bluetooth Smart® Wireless Capability
- 0 to 25,000 Micron Range with 1 Micron Resolution
- Measures Vacuum in Microns, Pascals, Millibar, mmHg, and Torr
- Large, high-visibility back-lit LCD display
- Long Battery Life — Up to 100 Hours on Two ‘AAA’ Alkaline Batteries
- Wide Operating Temperature Range — Operates Below Freezing
- Automatic Oil Sensor
- Rugged, Compact Design — Fits in a Shirt Pocket
- Calibration Self Test — Can Be Field Calibrated with No Special Equipment
- Sensor withstands overpressure up to 500 PSI
- Ideal for HVAC/R Service, Industrial, and Scientific Use.
ANDROID & APPLE APP FEATURES:
- View vacuum on digital gauge or graph
- Leak check feature
- Record evacuation process
- Export as graphical PDF
- Export as comma-delimited CSV.
BluVac+ Micro Wireless Digital Vacuum Gauge Includes:
1 x BluVac+ Micro Wireless Digital Micron Gauge, Female-to-Female ¼” Flare Coupler, Storage/Carrying Pouch, Batteries (Two ‘AAA’ Alkaline), Instruction Manual and a 12-Month Warranty.
BluVac+ Micro Wireless Digital Vacuum Gauge Specifications:
| Range | 0 – 25,000 Microns (3330 Pa, 33.3 mBar, 25 mmHg, 25 Torr) |
| Vacuum Accuracy | ±5% of Reading ± 5 Microns |
| Vacuum Resolution | 1 Micron at less than 1000 Microns 10 Microns between 1,000 and 10,000 Microns 100 Microns between 10,000 and 25,000 Microns |
| Maximum Overpressure | 500 PSI |
| Warm-up Time | Instant |
| Response Time | Instant |
| Power | Two ‘AAA’ Alkaline Batteries |
| Battery Life | Up to 100 Hours |
| Operating Temperature | 10°F – 122°F (-12°C – 50°C) |
| Weight | 2.7 oz. (77g) Including Batteries |
| Dimensions | 4.3” x 1.3” x 1” (11cm x 3.3cm x 2.5cm) |
| Vacuum Port Fitting | ¼” Male Flare Anodized Aluminum for Weight & Durability Captured Dust Cap Included |
| U.S. Patent Nos. | 8,504,313 and 8,768,633 |
