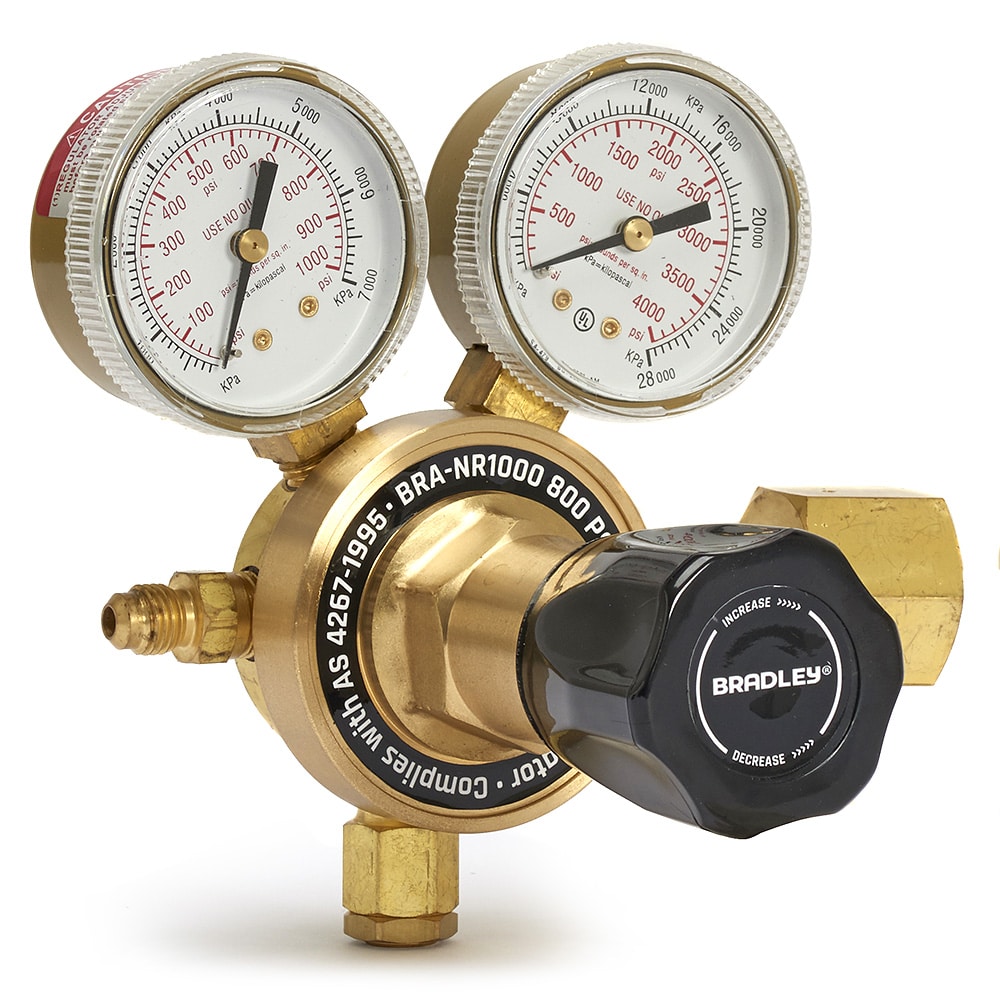

Bradley NR1000 0 – 800 psi Nitrogen Regulator
The Bradley NR1000 Nitrogen Regulator is specifically designed for HVAC/R technicians, testing up to 800 psi for all your testing and evaluating needs. Suitable for high pressure AC systems including R410A and R32. The regulators feature a piston actuated seat for durability and quality neoprene diaphragms.
The NR1000 nitrogen regulator has easy-to-read psi and KPa scale 50mm gauges, with steel case construction and polycarbonate lenses. The regulators include a porous metal inlet filter and a fine mesh filter screen between the inlet and seat. Regulation is by a convenient heavy duty control knob well packaged in a convenient eva foam carry case for easy storage.
FEATURES:
- Single stage construction
- Forged brass body & bonnet
- Neoprene diaphragms
- Safety relief valve
- Inlet filter to trap impurities
- 0 – 800 psi working pressure
- Complies with AS 4267-1995
- 12 month warranty.
INCLUDES:

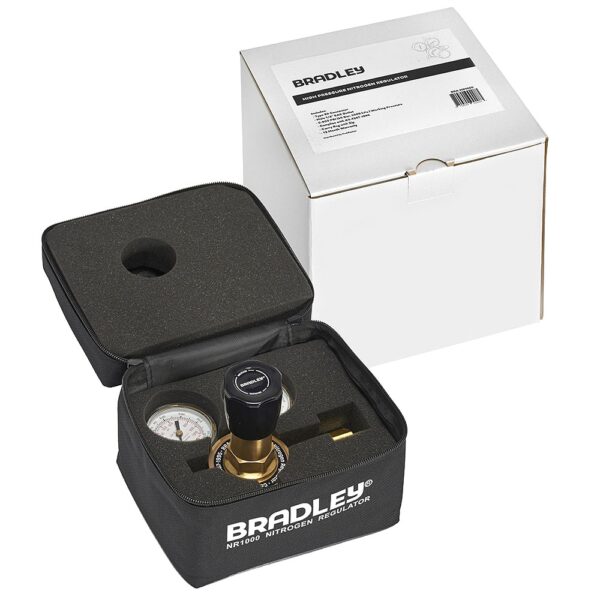

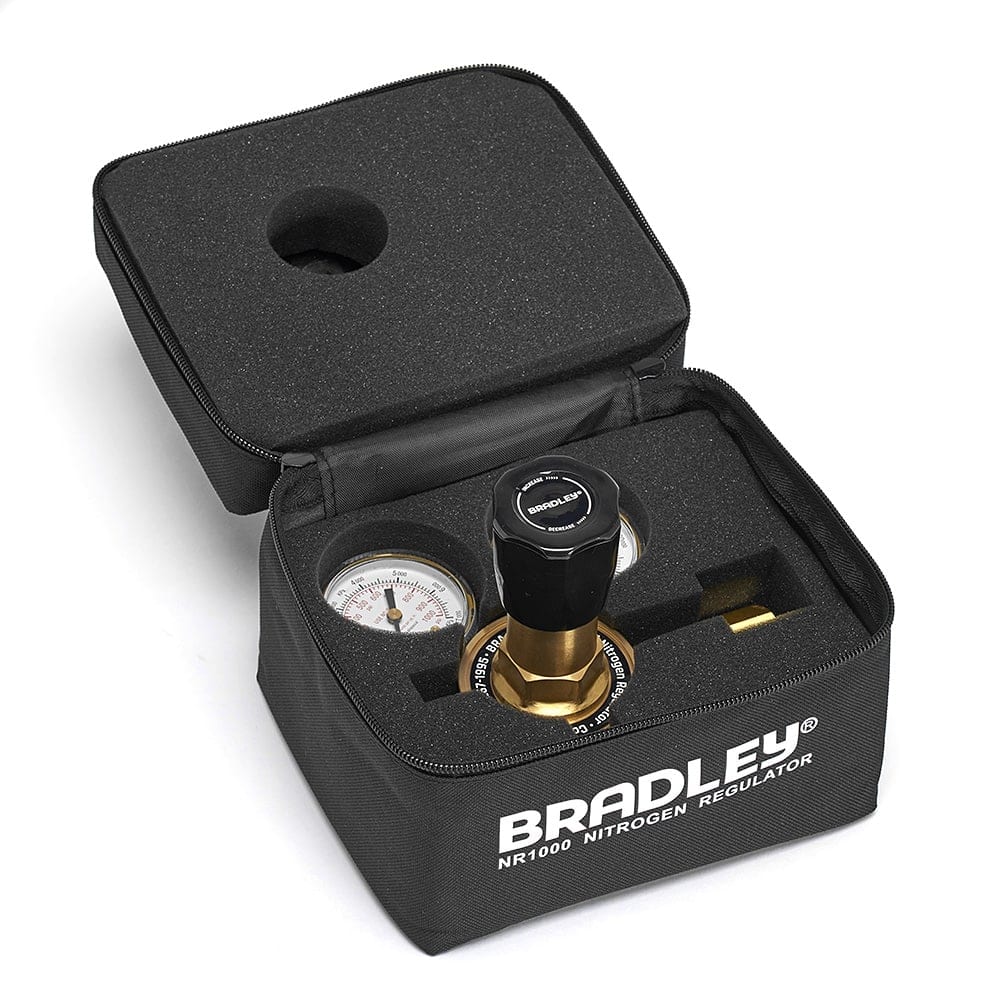

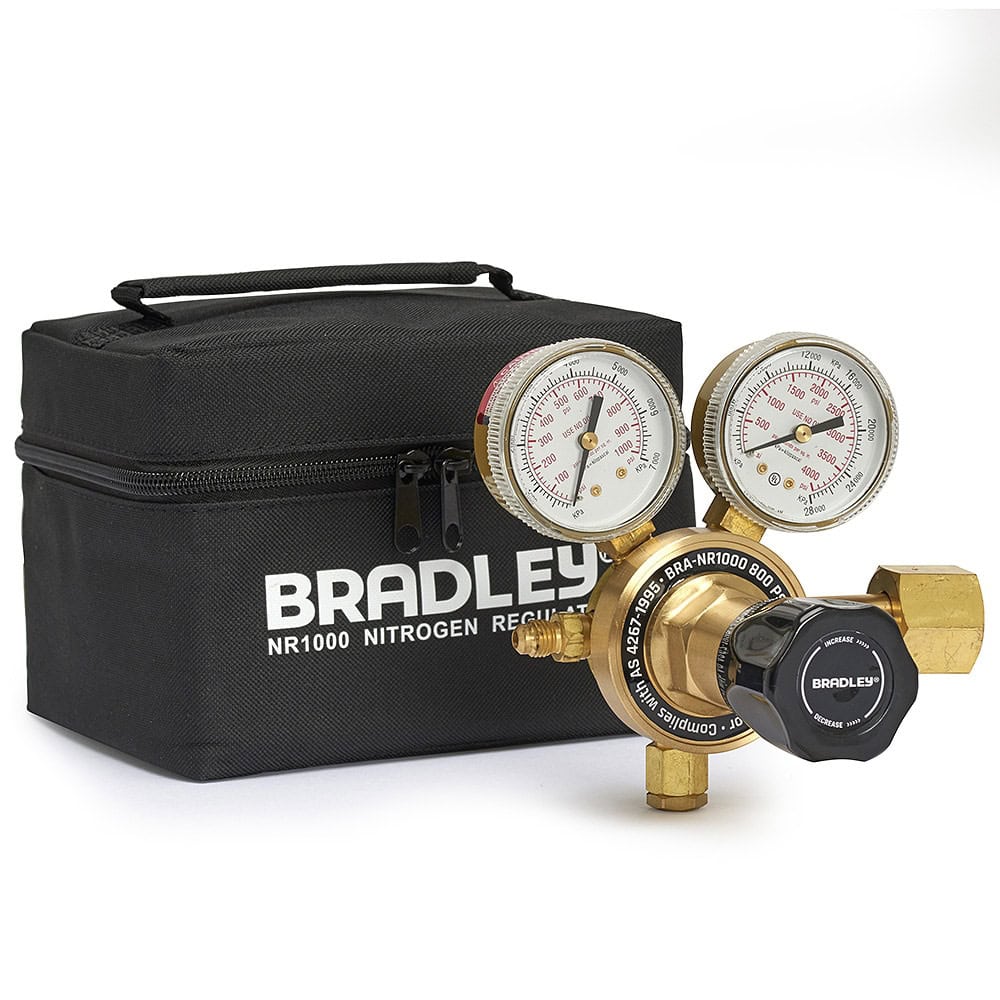

1 X BRA-NR1000 Nitrogen Regulator, 1 x Instruction Manual, 1 x Carry Bag with Zip, 1 x 12 Month Warranty.
SPECIFICATIONS:
INLET FITTING: Type 50 Connector
OUTLET FITTING: Male 1/4″ SAE
WORKING PRESSURE: 0-800 psi (55 (5500 kPa)
GAUGE MEASUREMENTS: psi & kPa.
SAFETY VALVE MAX PRESSURE: 800 psi
MATERIALS: Brass and Alloy
COUNTRY OF ORIGIN: Taiwan
BRAND: BRADLEY
WARRANTY: 12 Months
PRODUCT WEIGHT: 1.35 KG without case, 1.70 Kg with case.
DIMMENSIONS: 180mm x 150mm x 135mm.
