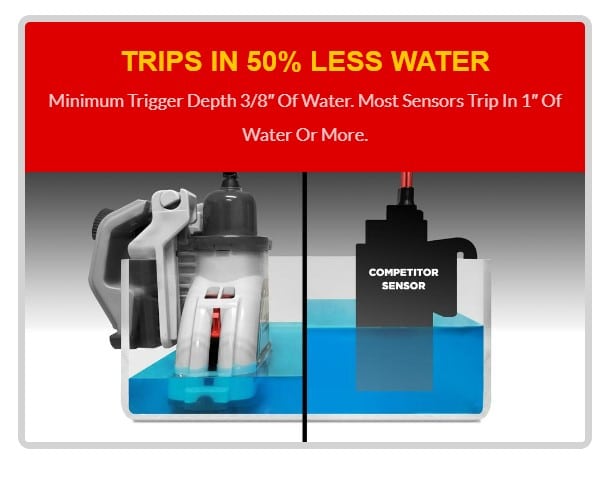

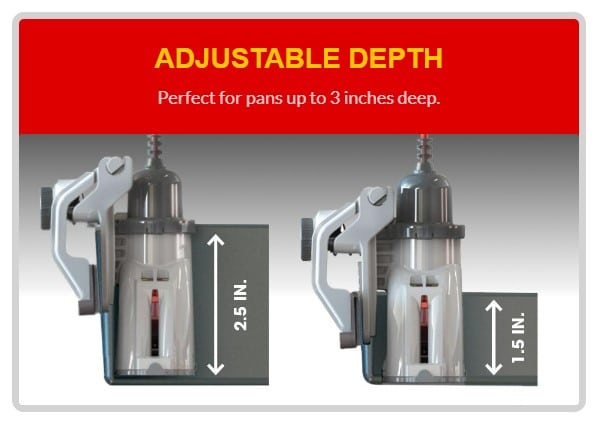

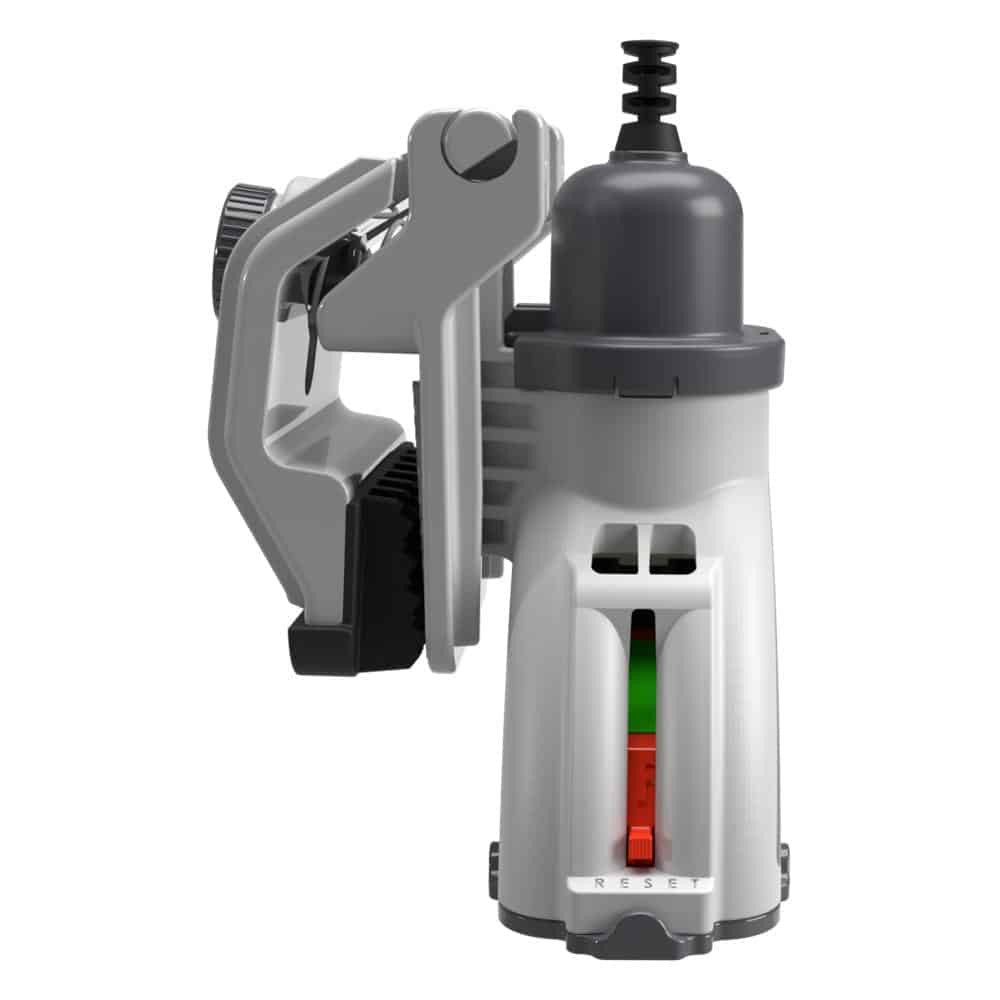

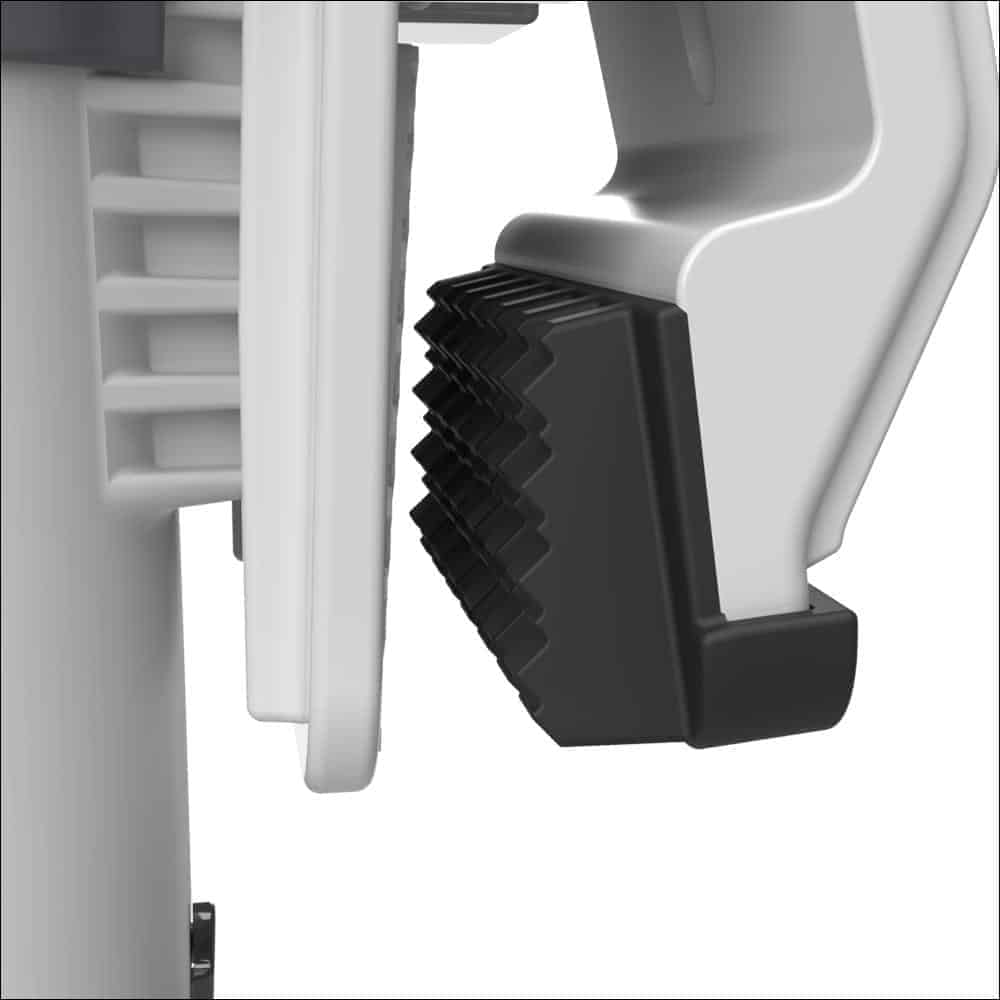

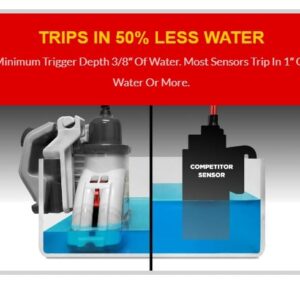

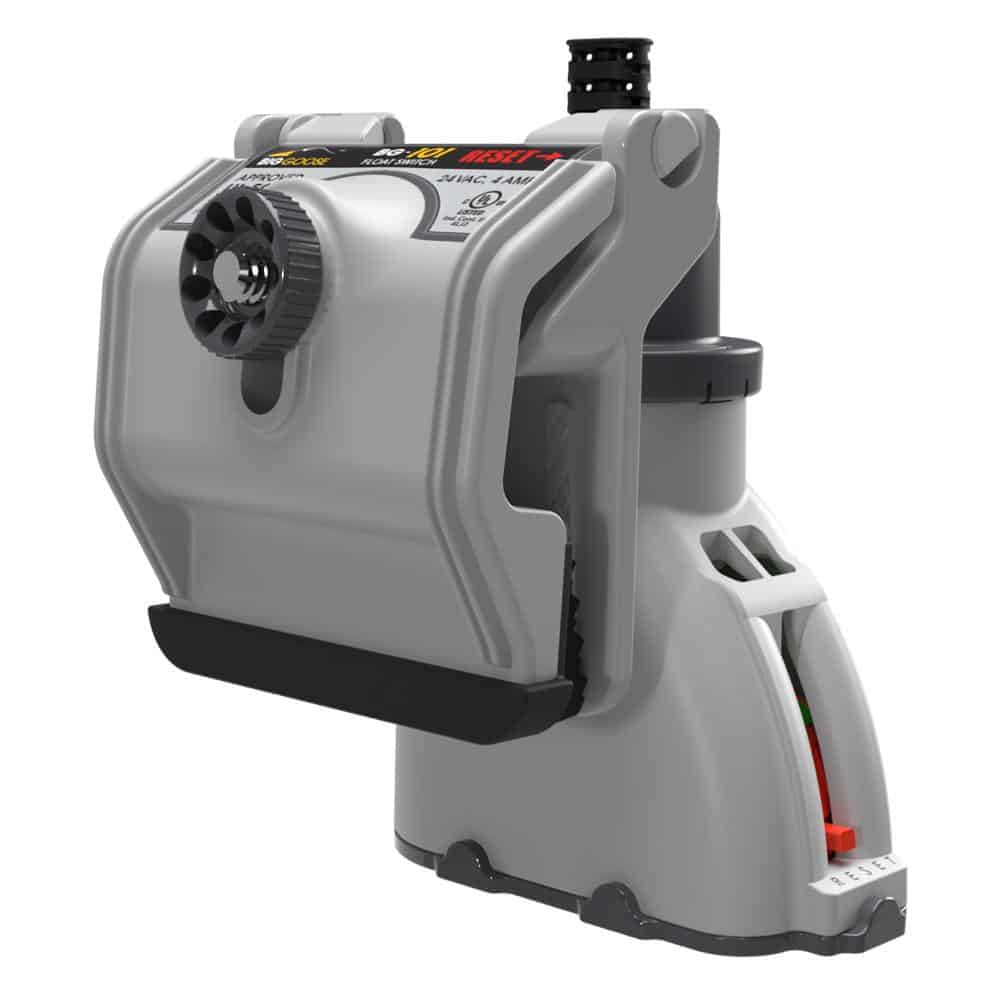

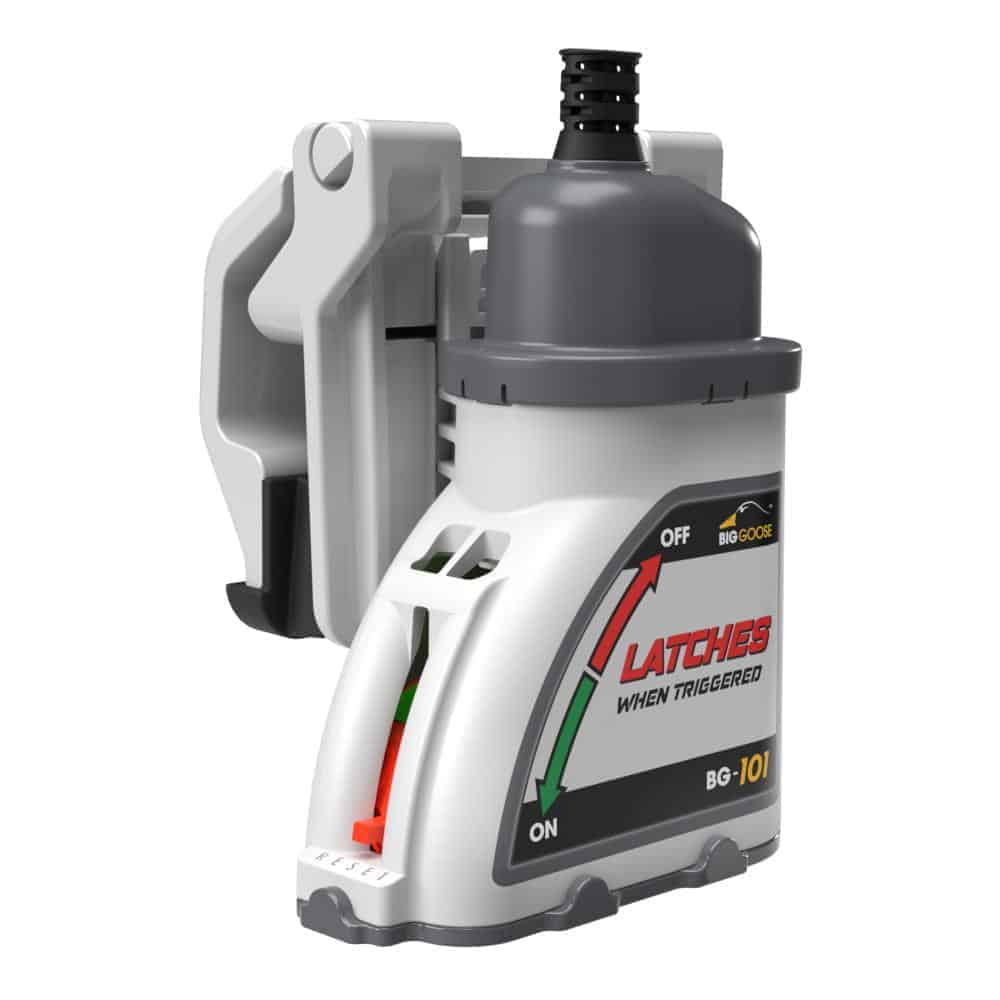

The BG-101 is a revolutionary latching float switch designed with industry-leading innovation and quality. The BG-101 is attached to the side of the secondary drain pan, clamps in place for a secure hold, and it adjusts to the deepest pans on the market. With a triggered depth of 9 mm or .375″ inches, the HVAC system as well as property and valuables will be safe.

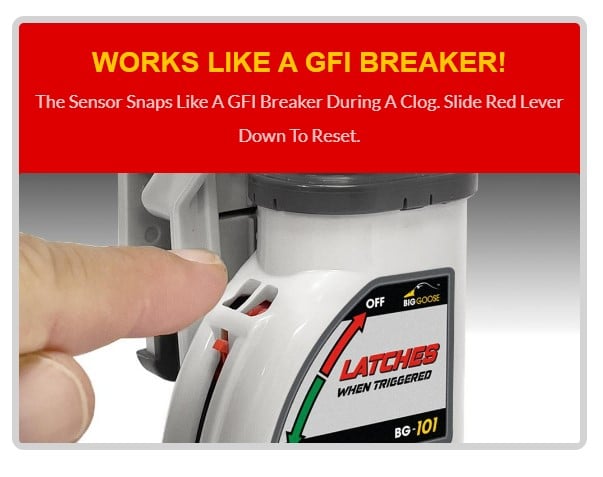

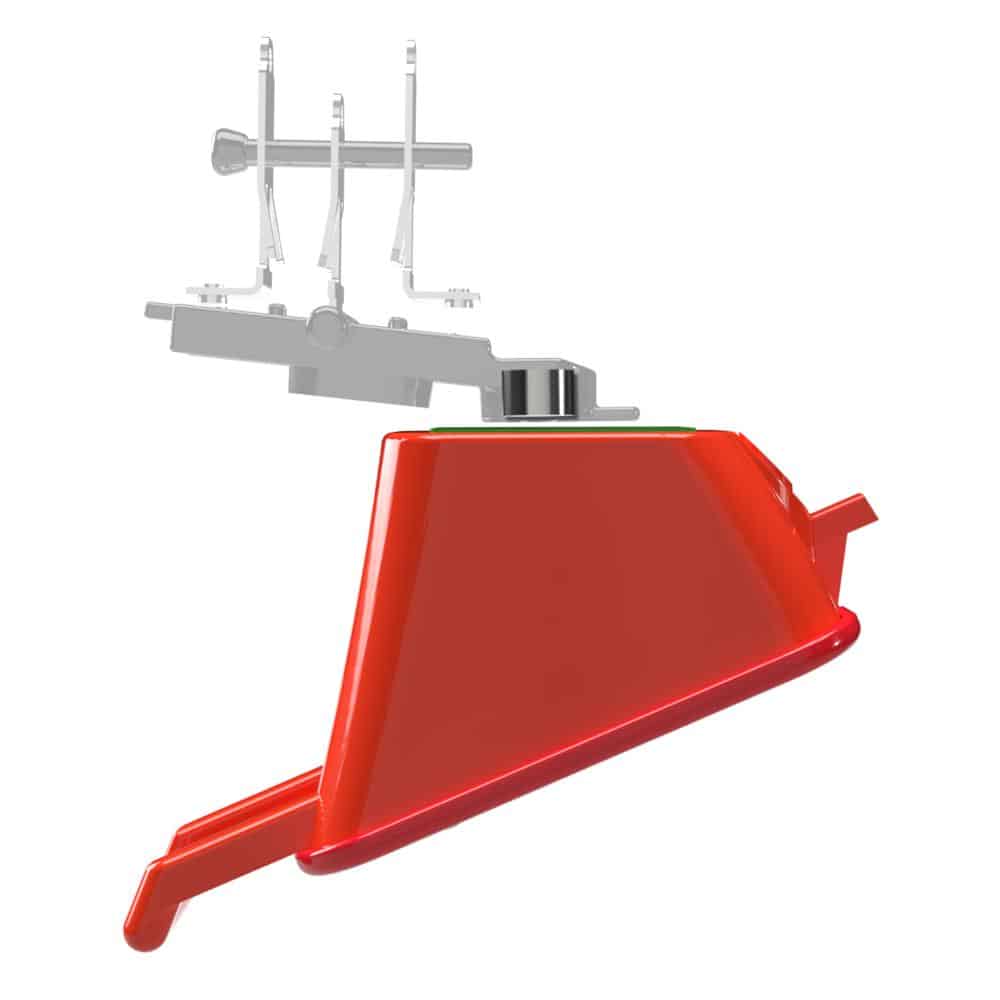

The BG-101 connects and protects the HVAC circuit by eliminating intermittent condensate tripping thanks to a reliable latching snap action. Once the latch mechanism is triggered, the power to your air handler will be interrupted, and the system will shut down. The BG-101 will stay latched and the system will remain off, even if the water has receded until it is physically reset by hand.
FEATURES:
- No more short cycling
- No more intermittent condensate tripping
- Easier to diagnose, saving time & money
- Reliable switch action based on Water level measure
- Will not false trip due to positive or negative air pressure
- Latching snap float switch.
INCLUDES:
1 x BG-101 Secondary Drain Pan Condensate Sensor, 1 x English manual and 12-month warranty.
SPECIFICATIONS:
- 24 VAC, 4 AMP
- UL 508 Approved
- Wire Length: 60 inches (stripped wires)
- Trigger Depth: 3/8 inch.
- Brand: BigGoose by DiversiTech
