Inficon Compass Refrigerant Leak Detector

Suitable for R22, R32, R134a, R404a, R407c, R410a, R422b, R448a, R449a, R452a, R452b, R507 (AZ50), and R1234yf.

$1,091.19 incl GST

Out of stock

Want to be notified when this product is back in stock?

SKU: INF-717-202-G6 Categories: , ,

COMPASS HANDHELD LEAK DETECTOR WITH HEATED DIODE TECHNOLOGY

The Compass Refrigerant Leak Detector features a patented heated diode sensor, specifically designed for residential and commercial Air Conditioning leak detection application.

The Compass provides the optimal balance of features, function and value. This easy-to-use hand-held refrigerant leak detector delivers excellent sensitivity to all refrigerants, up to 0.15 oz/year.

Unlike some other leak detectors available on the market, this clever unit can pinpoint the leak source quickly through the high/low sensitivity adjustment; LED?s illuminate progressively to convey leak size and a water-resistant filter protects the sensor from job site contaminants such as dust, dirt and oil.

FEATURES:?

  • Sensitivity: 0.15 oz/year
  • Detects all CFCs, HCFCs, HFCs, and HFOs
  • No false alarms from soap solutions
  • Runs on rechargeable battery or AC adapter
  • Patented heated diode sensor provides excellent sensitivity
  • Advanced filter keeps out water, dirt, and oil
  • High/low sensitivity adjustment allows you to decrease sensitivity to pinpoint the leak source
  • Automatic background adjustment (?zeroing?) compensates for the refrigerant build-up
  • LEDs illuminate progressively to show leak size
  • Power indicator flashes when the battery is low
  • Water-resistant filter protects the sensor from moisture and contaminants
  • Easy one-button operation
  • Headphone jack (headphones sold separately).

INCLUDES:

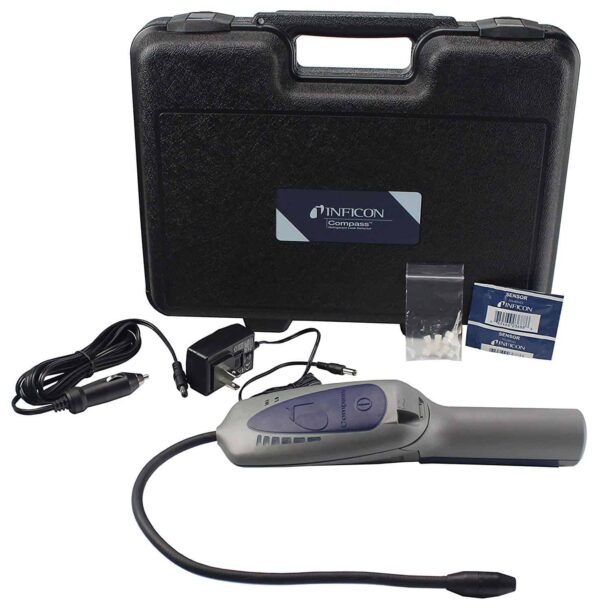

1 x Compass Leak Detector, Heated Diode Sensor, 1 x Hard plastic carry case, 1 x NiMH battery, 1 x AC wall charger (NZ Plug), 1 x 12 V car charger, Spare filters (5).

SPECIFICATIONS:

  • Compatible refrigerants R22, R32, R134a, R404a, R407c, R410a, R422b, R448a, R449a, R452a, R452b, R507 (AZ50), R1234yf and more
  • Operating Temperature: -20 to 50 ?C (-4 to 122 ?F)
  • Minimum sensitivity: 0.15 oz/year (4 g/a)
  • Power source: NiMH battery or AC adapter
  • Battery life: 5.5 hours
  • Dimensions: 44 x 34 x 12 cm
  • Weight with batteries: 1.15 lb. (0.522 kg)
  • Probe length: 15 in. (38 cm)
  • Certifications: CE marking per safety and EMC
  • Country of Origin: USA by INFICON
  • Warranty: 2 Year? Warranty.
