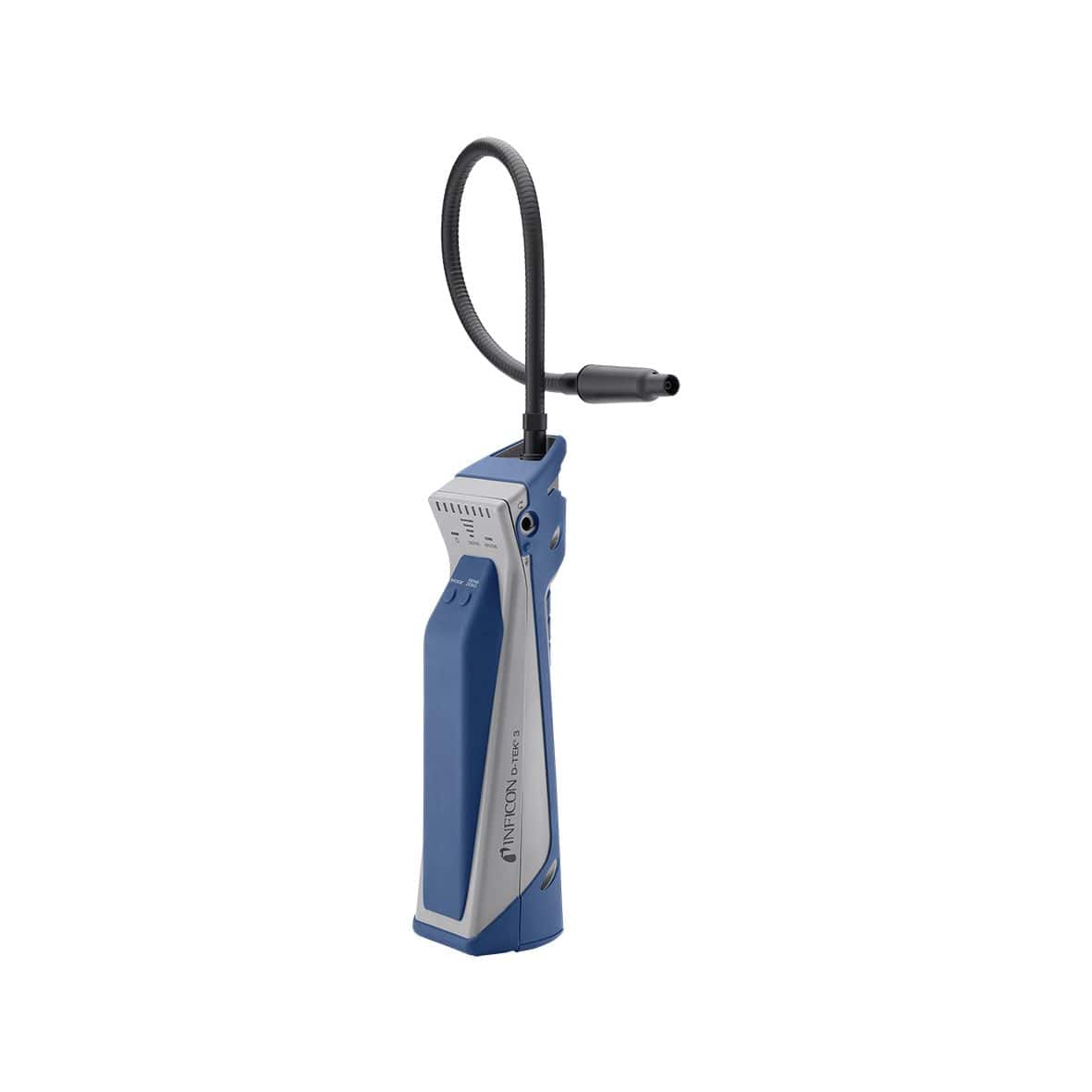

D-TEK 3 builds on the proven performance of D-TEK leak detectors with added features to help you get your job done faster. An easy-to-change sensor, quick-charge lithium-ion battery, and a new ergonomic design make D-TEK 3 a versatile tool for everyday RAC maintenance and repair. Plus, a new optional CO2 sensor gives you two instruments in one. Upgrade your toolbox with this accurate and reliable leak detector.
INFICON D-TEK 3 REFRIGERANT / CO2 LEAK DETECTOR FEATURES:
- All-new redesigned long-life infrared sensor with the longest sensor life in the industry
- Designed for field use and very easy to use
- Low, Medium, High, and Super sensitivity settings
- Automatic and manual zero modes
- Rugged carrying case included Detects all CFCs, HCFCs, HFCs, HFOs, and blends (including A2Ls)
- Detects CO2 with optional CO2 sensor
- Optional extra-long probe for hard-to-reach areas
- Two-year replacement warranty.
INFICON D-TEK 3 REFRIGERANT / CO2 LEAK DETECTOR INCLUDES:
1 x Infrared sensor, 1 x Lithium-ion battery, Spare filters, 1 x AC wall charger NZ/AU Plug, 1 x Carrying case and 24-Month Warranty.

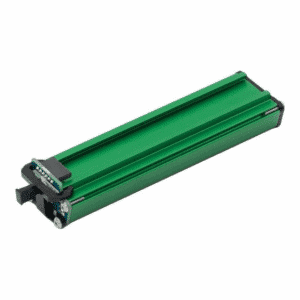

Optional: INF-724-701-G2 CO2 Sensor
Typical Applications:
- Industrial AC/Refrigeration
- Residential AC/Refrigeration
INFICON D-TEK 3 REFRIGERANT / CO2 LEAK DETECTOR SPECIFICATIONS:
| Type | D-TEK 3 Leak Detector INF-721-202-CN41 | |
|---|---|---|
| Includes | Infrared sensor Lithium-ion battery Spare filters AC wall charger Carrying case |
|
| Compatible refrigerants | R22, R32, R134a, R404a, R407c, R410a, R422b, R448a, R449a, R452a, R452b, R507 (AZ50), R1234yf, CO2 (requires CO2 sensor), ammonia, SF6, and more | |
| Minimum sensitivity | 0.03 oz./yr. (1 g/a) | |
| Sensitivity per EN14624 | 1 g/a | |
| Sensitivity to R744 (CO2) | 0.07 oz./yr. (2 g/a)*requires CO2 sensor | |
| Power source | Lithium-ion battery (rechargeable)
Micro USB (can operate while charging) |
|
| Battery life | 10 hours | |
| Weight with battery | 0.97 | |
| Certifications | CE EN14624:2012 A2L Certified |
|
| Patents (pending) | Application #10 2018 208 826.8 | |
| Probe length (standard probe) | 17 in. | |
