Description

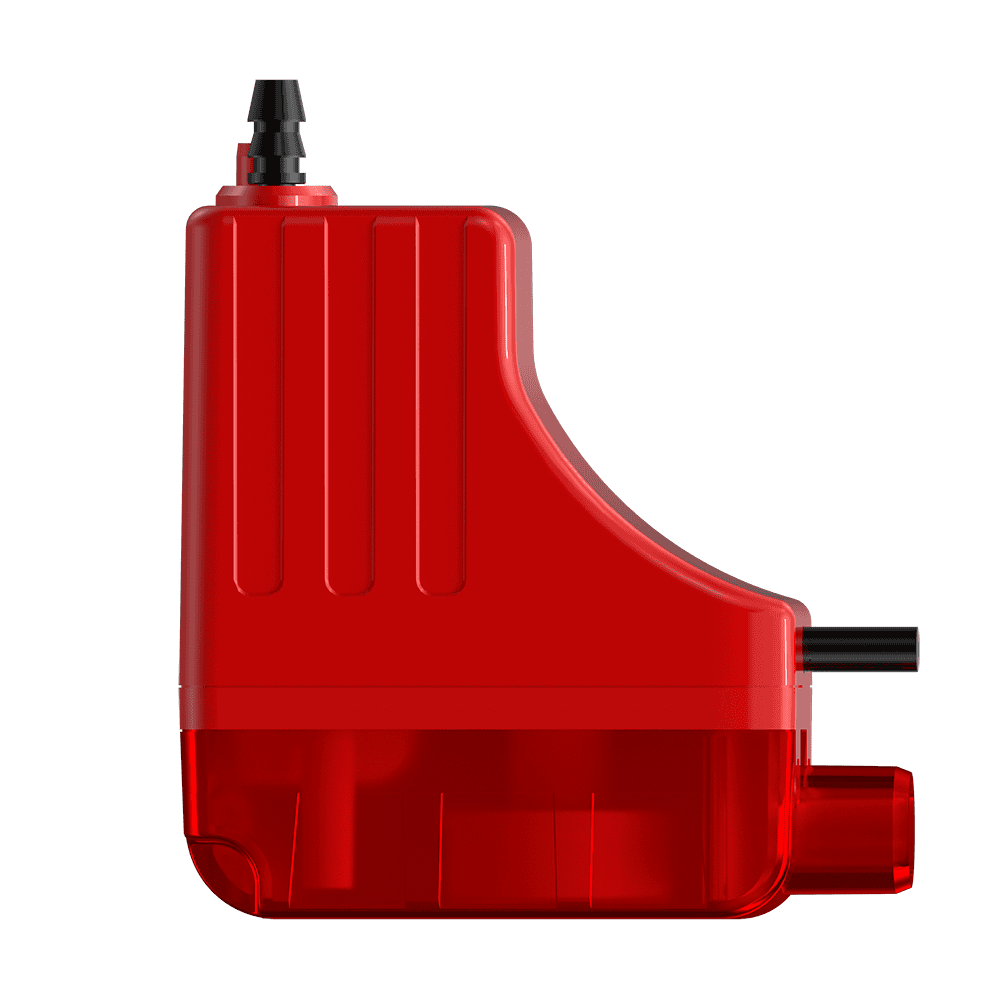

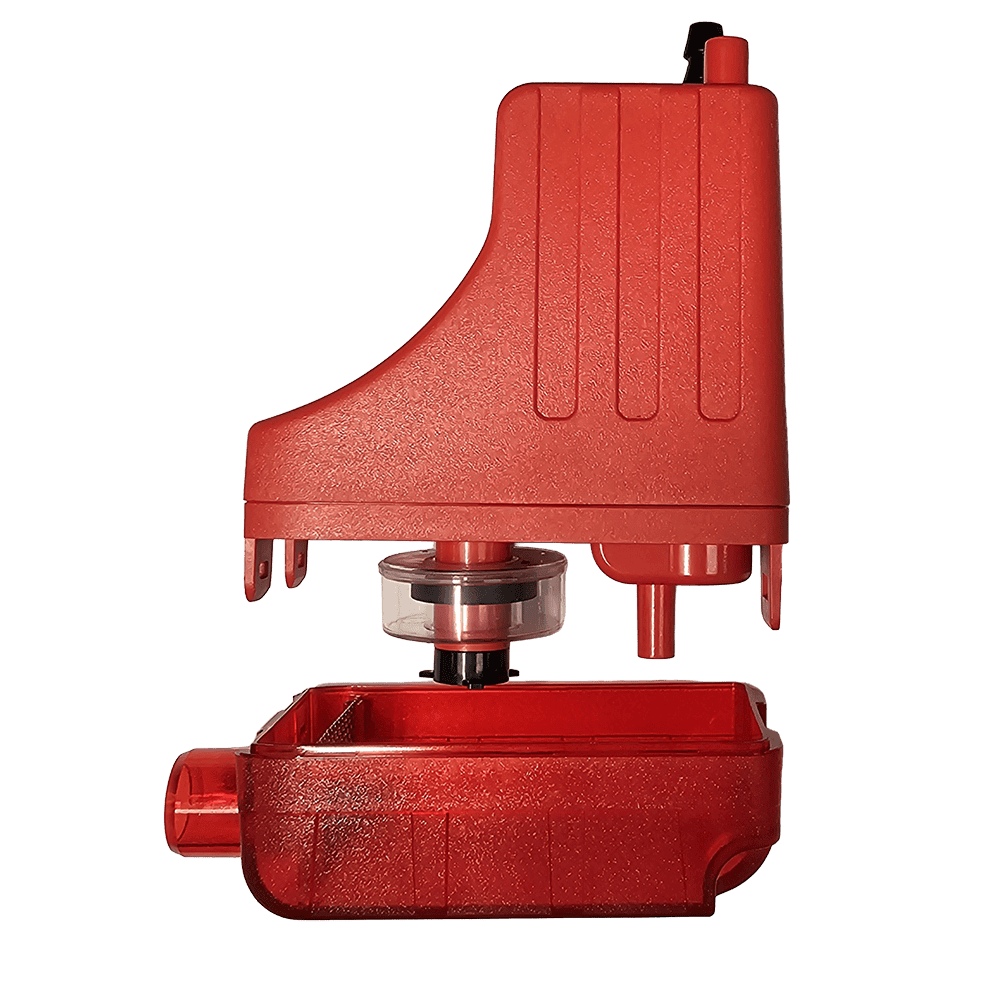

A mini condensate pump in the REDBOX series of pumps.
Designed to automatically remove the drainage liquid produced by air conditioners of a maximum 7kW cooling capacity.
Key Features
- Use with Air conditioner (Max. 7kW)
- Fluid Fresh water of 1~40°C
- Power supply 100-240V, 50-60Hz
- Non-continuously rated operating time 5 min on / 1 min off
- Electrical output 3W
- Decibel rating 21 DB(A)
- Safety switch contacts Max. 3A
- Pump size (LxWxH) 95.4 x 44 x 109.7mm
- Max. discharge head 15m
- Reservoir size (LxWxH) 81 x 44 x 24.9mm
- Max. flow rate at zero head 20 LPH
- Drink cycle 16ml
Part No. Content
- Part Name: REDBOX-UNIVERSAL
- Description: REDBOX MINI UNIVERSAL CONDENSATE PUMP
- Suitable for use on: AC MAX 7kW
- Quantity: 1
- Brand: REDBOX
- Max head: 15m
- Max flow: 20 LPH
- dB A: 21
- External dimensions height: 109.7mm
- External dimensions width: 44mm
- External dimensions depth: 95.4
