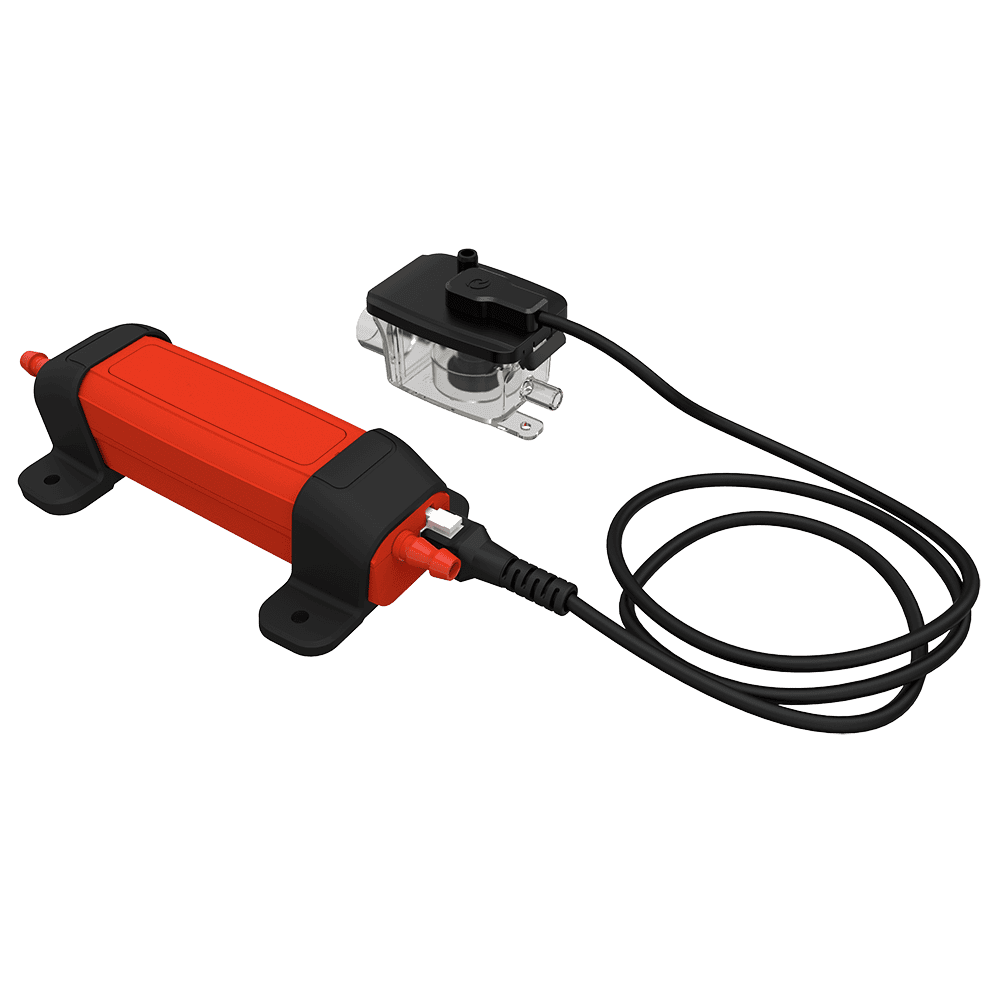

A mini condensate pump in the REDBOX series of pumps.
Designed to automatically remove the drainage liquid produced by air conditioners of a maximum 7kW cooling capacity.
Key Features
- Use with Air conditioner (Max. 7kW)
- Fluid Fresh water of 1~40°C
- Power supply 100-240V, 50-60Hz
- Non-continuously rated operating time 3 minutes
- Electrical output 3W
- Decibel rating 21 DB(A)
- Safety switch contacts Max. 3A
- Working without fluid coming through the pump Less than 1 minute only
- Max. suction head 3m
- Pump size (LxWxH) 159.8 x 36.8 x 31mm
- Max. discharge head 15m
- Reservoir size (LxWxH) 75 x 43.2 x 40.3mm
- Max. flow rate at zero head 20 LPH
- Drink cycle 10ml
Part No. Content
- Part Name: REDBOX-TUBE
- Description: REDBOX MINI TUBE CONDENSATE PUMP
- Suitable for use on: AC MAX 7kW
- Quantity: 1
- Brand: REDBOX
- Max flow: 20 LPH
- dB A: 21
- External dimensions height: 31mm
- External dimensions width: 36.8
- External dimensions depth: 159.8
