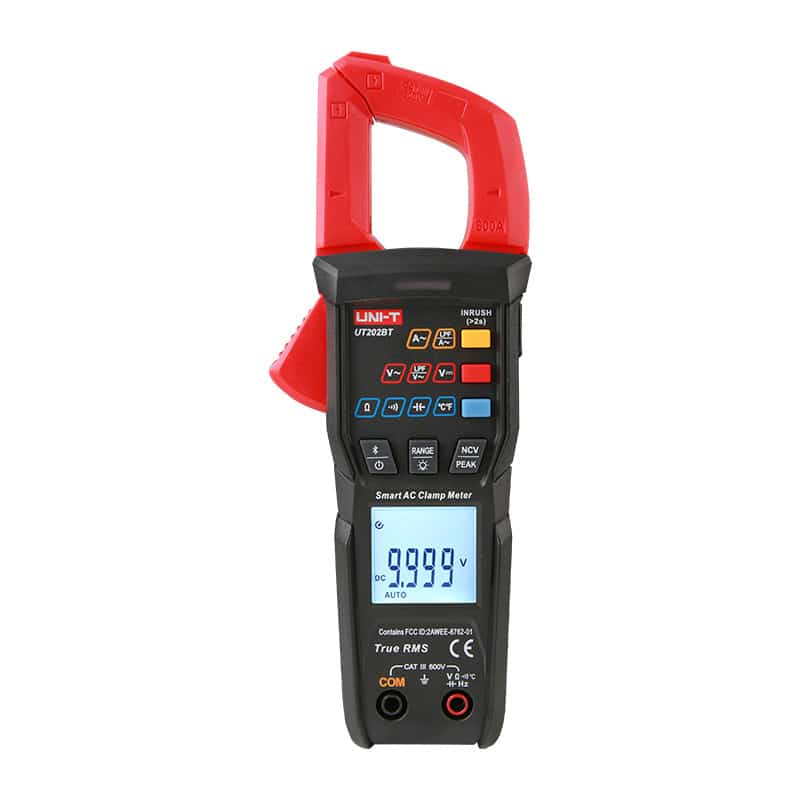

UT202BT is a Bluetooth smart clamp meter designed with low pass filter mode, and inrush current detection, peak hold, and other traditional clamp meter functions. UT202T is a simple-to-use smart clamp meter that can automatically detect the most common parameters.
FEATURES:
- Button-design clamp meter
- One-hand operation and easy to use
- True RMS / 9999 counts
- Jaw opening: 28mm
- 600V AC/DC voltage measurement
- 600A AC current measurement
- Dual display: V+HZ and A+HZ
- Bright backlight / Flashlight
- Non-contact voltage (NCV)
- CAT III 600V.
INCLUDES:
1 x UT202BT, Test leads, batteries, temperature probe and 12-month warranty.
SPECIFICATIONS:
Specifications | Range | UT202T | UT202BT |
Certificates | CE/UKCA/cETLus | ||
DC voltage (V) | 600V | ±(0.5%+3) | ±(0.5%+3) |
AC voltage (V) | 600V | ±(0.8%+3) | ±(0.8%+3) |
AC current (A) | 600A | ±(2.5%+5) | ±(2.5%+5) |
Resistance (Ω) | 6MΩ | ±(0.8%+3) | |
100MΩ | ±(0.8%+3) | ||
Frequency (Hz) | 40Hz~1000Hz | ±(1.0%+5) | ±(1.0%+5) |
Capacitance (F) | 100mF | ±(4%+5) | ±(4%+5) |
Temperature (℃/℉) | -40℃~1000℃/-40℉~1832℉ | ±5/±9 | |
Features | |||
Jaw opening | 28mm | 28mm | |
Display count | 9999 | 9999 | |
Dual display | √ | √ | |
Auto range | √ | √ | |
NCV | √ | √ | |
Continuity | √ | √ | |
PEAK hold | √ | ||
Low pass filter | √ | ||
Inrush current | √ | ||
Audible visual indication | √ | √ | |
Low battery indication | <2.4V approximately | √ | √ |
Data hold | √ | √ | |
Auto power off | Approximately 15 minutes | √ | √ |
Flashlight | √ | √ | |
Bluetooth | √ | ||
Safety rating | CAT Ⅲ 600V | ||
General Characteristics | |||
Power | AAA 1.5V x 2 | ||
Product colour | Red+Gray | ||
Product net weight | UT202BT: 251g (Including batteries) | ||
Product size | 201.5 x 47 x 28mm | ||
Standard accessories | Test leads, batteries, temperature probe | ||
Standard individual packing | Box, carrying bag, English manual |
