Features of UT-L Series Test Leads

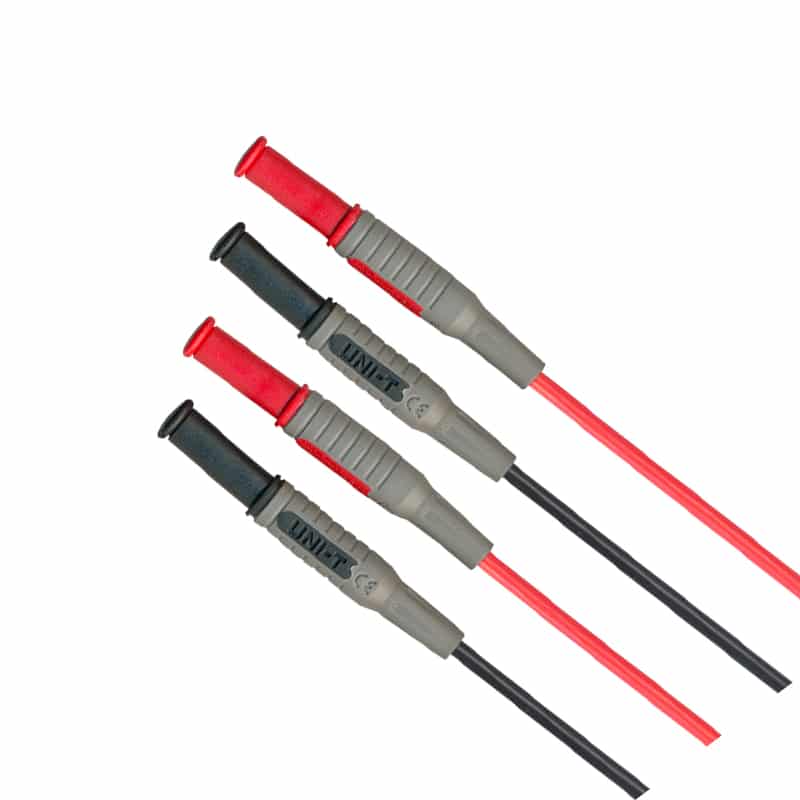

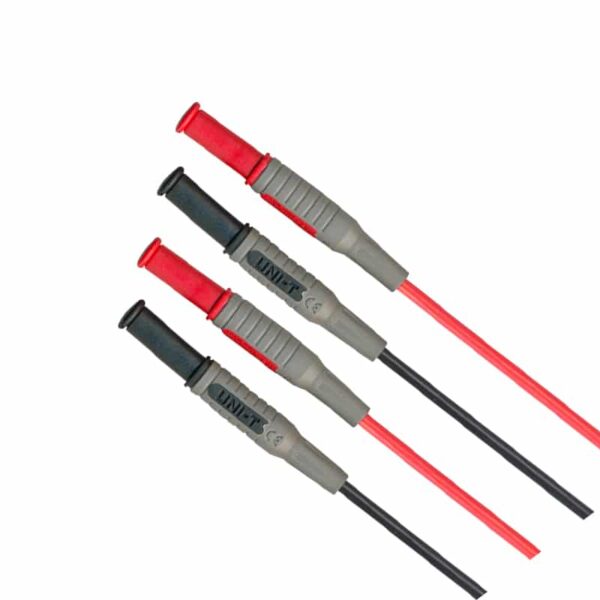

UT-L06 Dual head connectors
- Length: test leads 1200mm
- Safety level:CAT III 1000V 10A
- Application:Multifunctional connectors, all multimeters and clamps
- Includes: 1 pair dual-head connectors

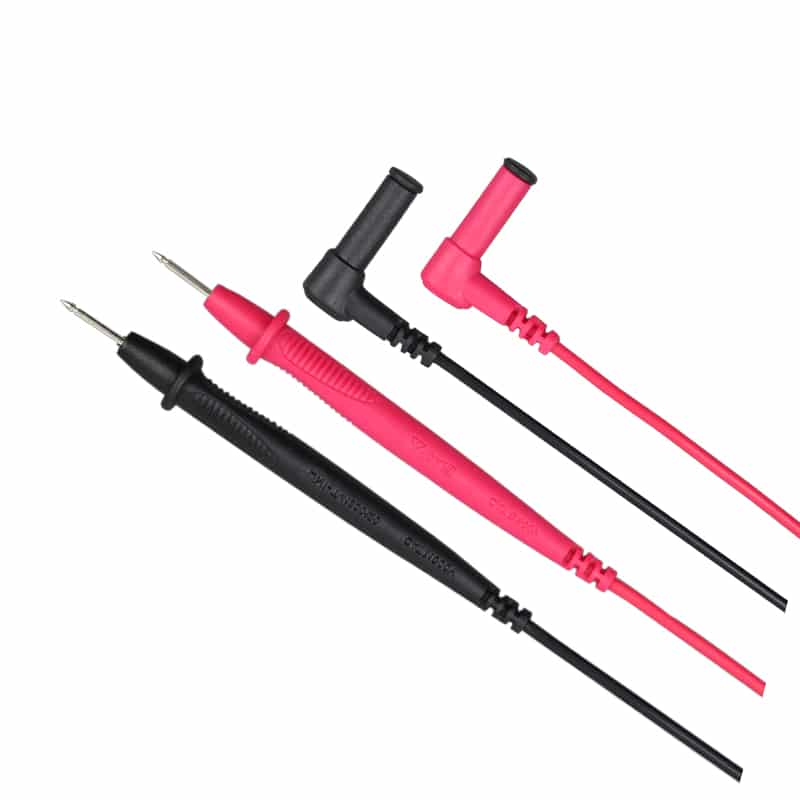

UT-L20 Probes
- Leads length: 900mm, Rod length: 101mm
- Tip length: 16.5mm
- Safety level: CAT I 1000V/CAT II 600V 10A
- Features and application: Cross plug with shield sleeve, general type probes, all multimeters and clamps measuring within spec
- Includes: 1 pair

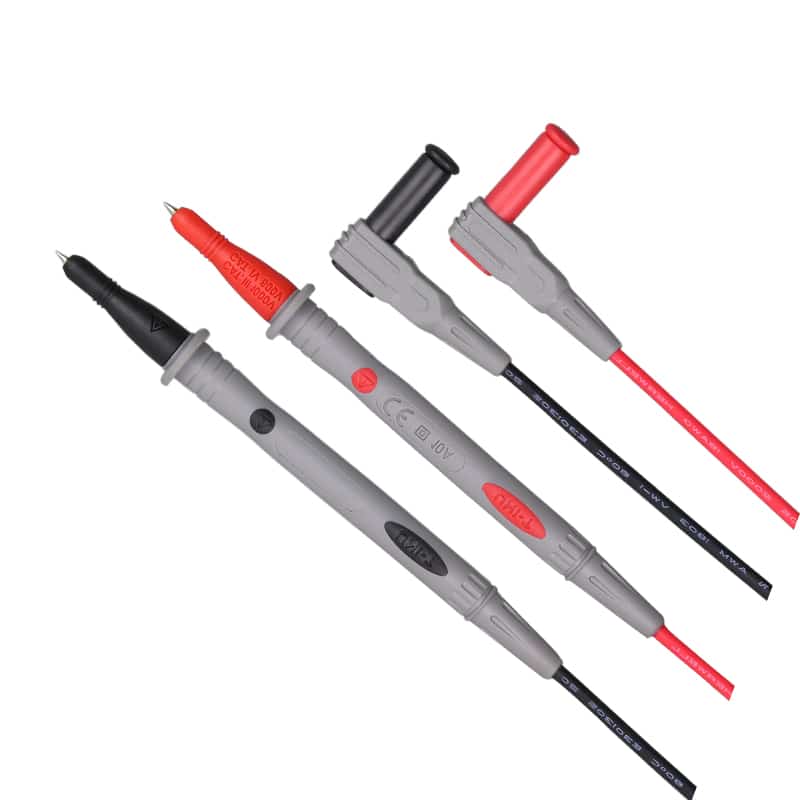

UT-L27 Probes
- Leads length: 900mm, Rod length: 130mm
- Tip length: 16.3mm, threaded
- Safety level: CAT III 1000V/CAT IV 600V 10A
- Safety certificate: EN 61010-031 2015
- Features and application: Double insulated UL authenticated material, removable tip shield sleeve, lantern plug input terminal, general type probes, all multimeters and clamps measuring withing spec
- Includes: 1 pair

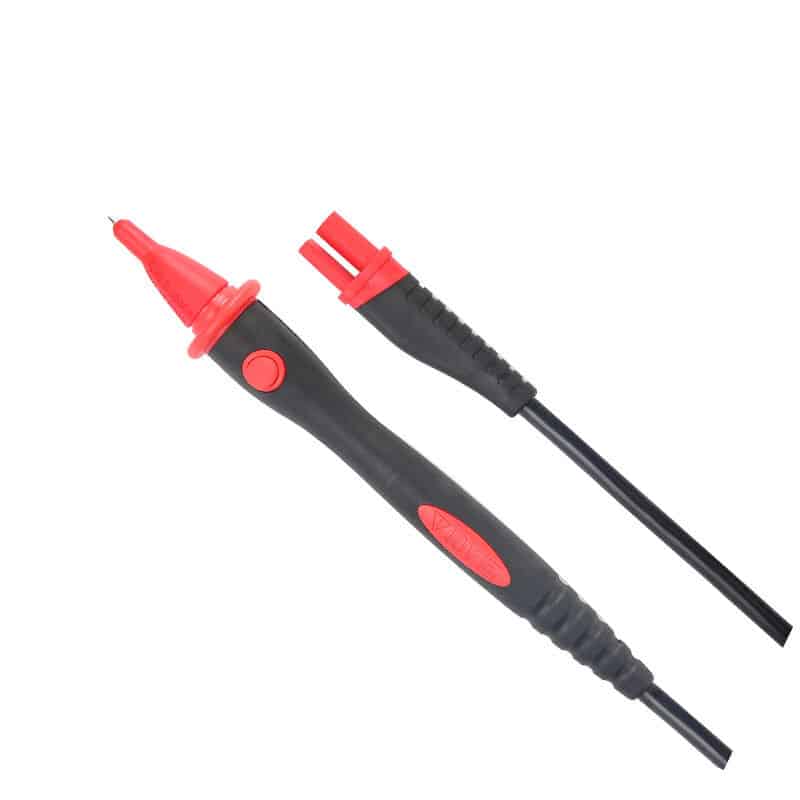

UT-L31 Probes
- Line length: 1300mm
- Tip length: 18.5mm
- Safety level: CAT III 1000V/CAT IV 600V 10A
- Features and application: rod with switch, removable tip shield sleeve, used for UT505B
- Includes: 1PC
UT-L34 Group test leads
- Combinations: combined with 1PCS green, 1PCS black and 1PCS red alligator clip test leads
- Total length: 1500±20mm
- Safety level: CAT III 1000V/CAT IV 600V 10A
- Application: UT513, UT513A
- Includes: 1 Group

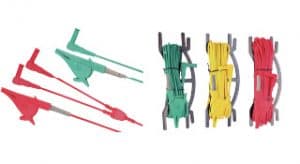

UT-L35 Group test leads
- Combination:(1) 1.6m test lead (green+red) 1pair (2) 5m green test lead 1PCS (3) 10m yellow test lead 1PCS (4) 20m red test lead 1PCS
- Material: UL authenticated material
- Safety level: CAT III 1000V/CAT IV 600V 10A
- Application: UT521, UT522, UT572
- Amount: 1 Group

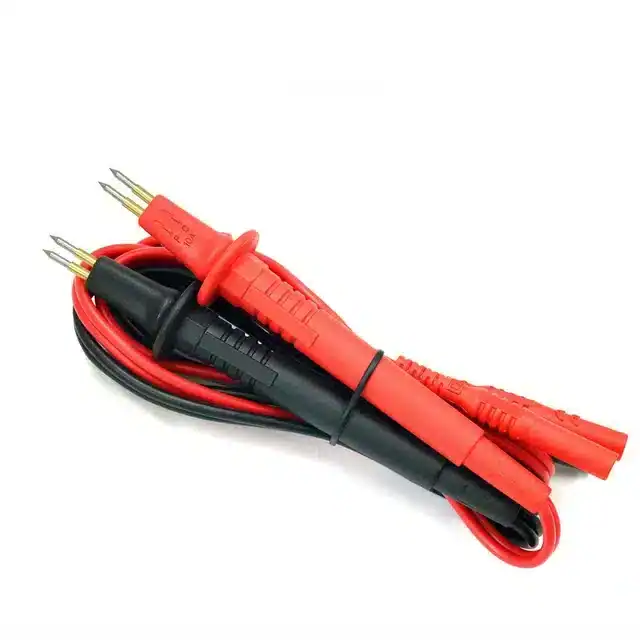

UT-L46 Four-wire test probes
- Leads material: 182-core double shielded wire
- Lead length: 1000mm
- Includes: 1 pair
