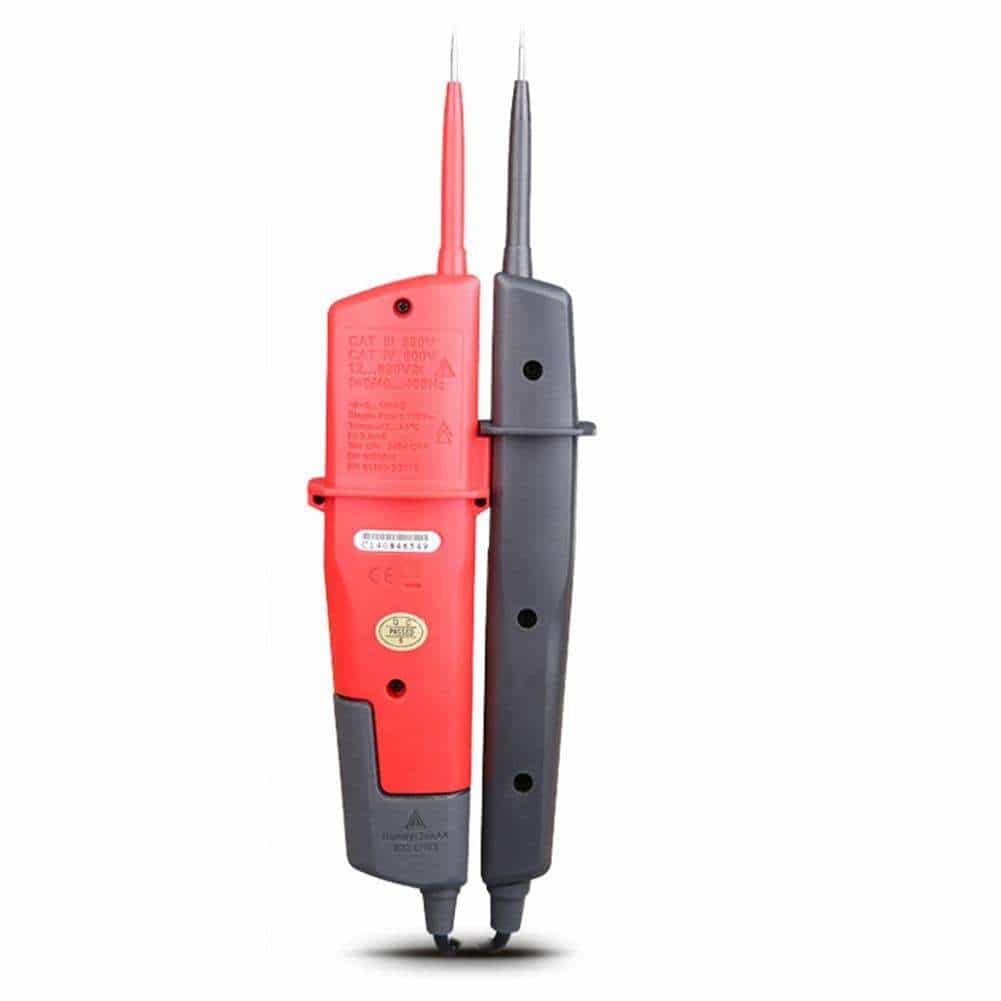

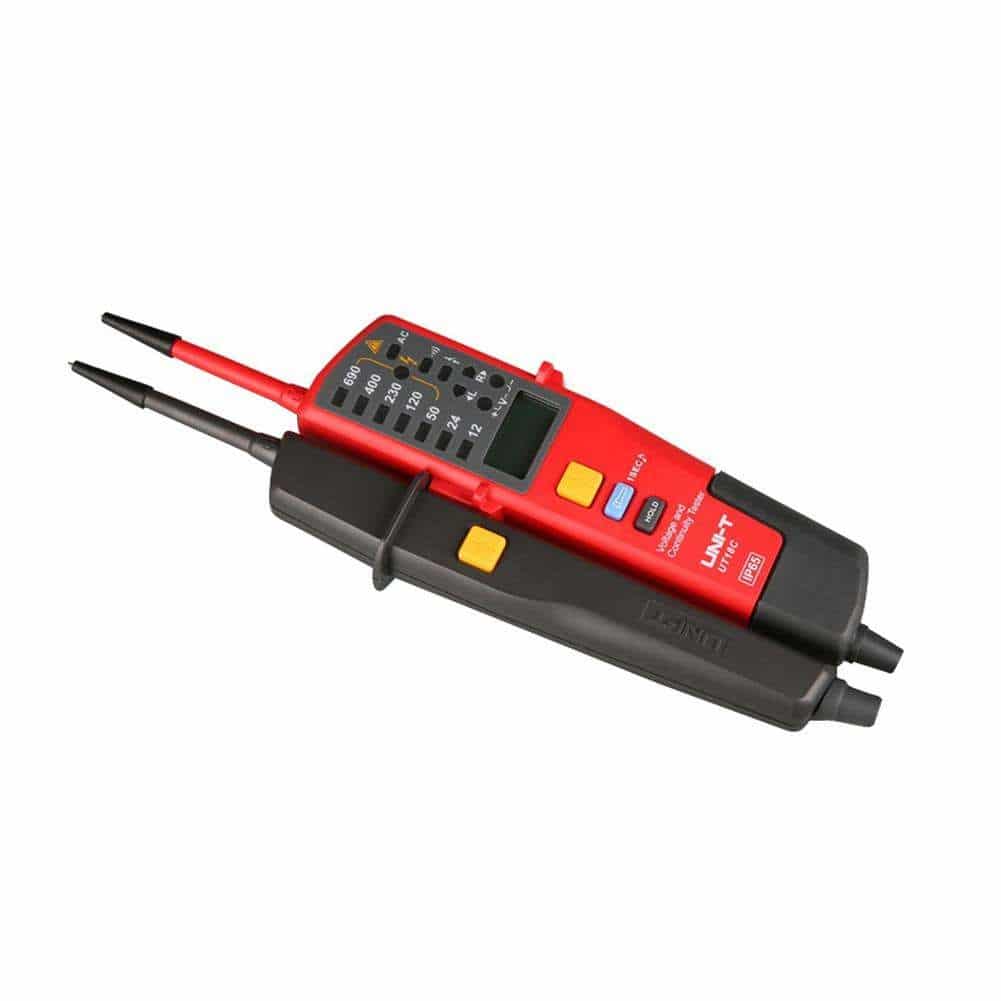

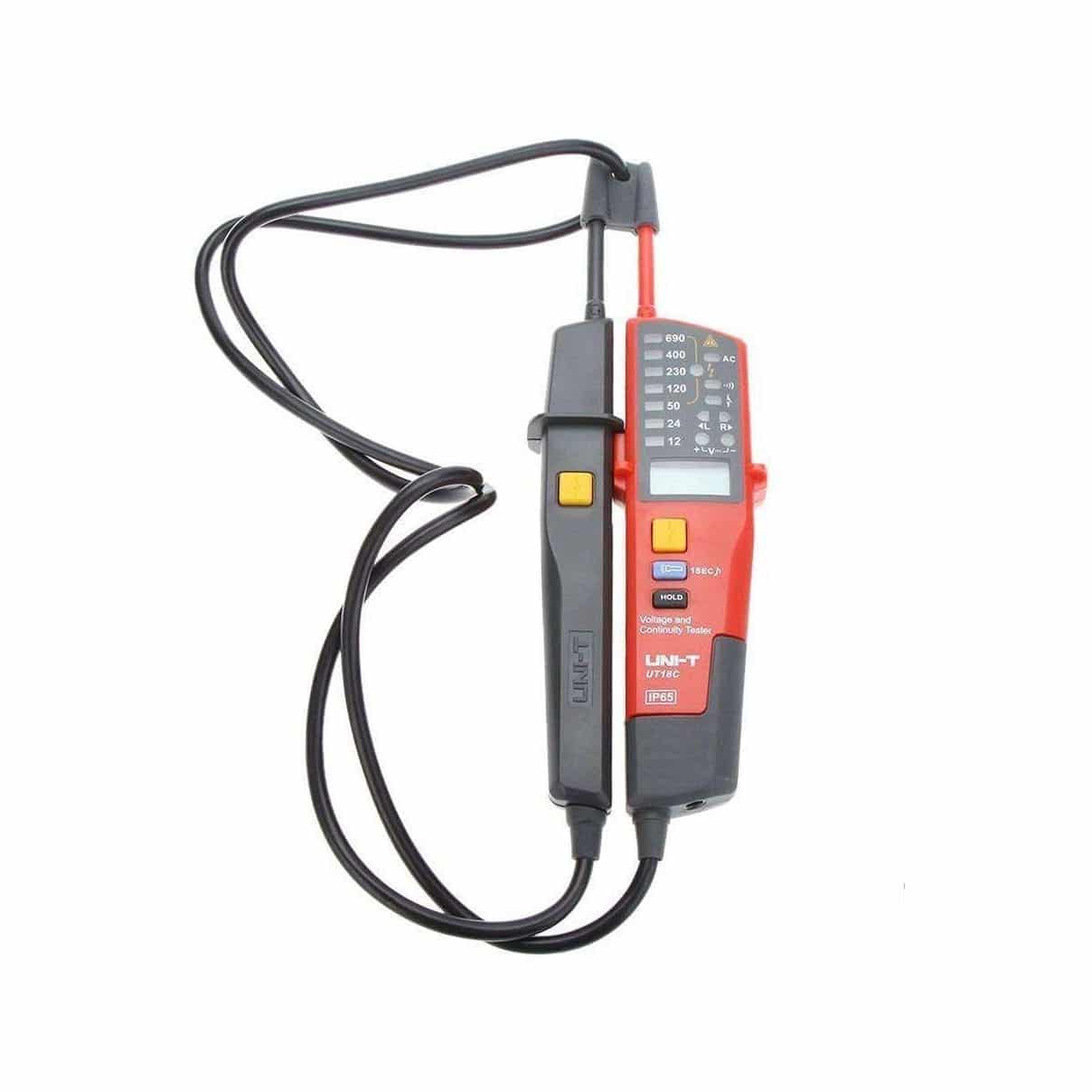

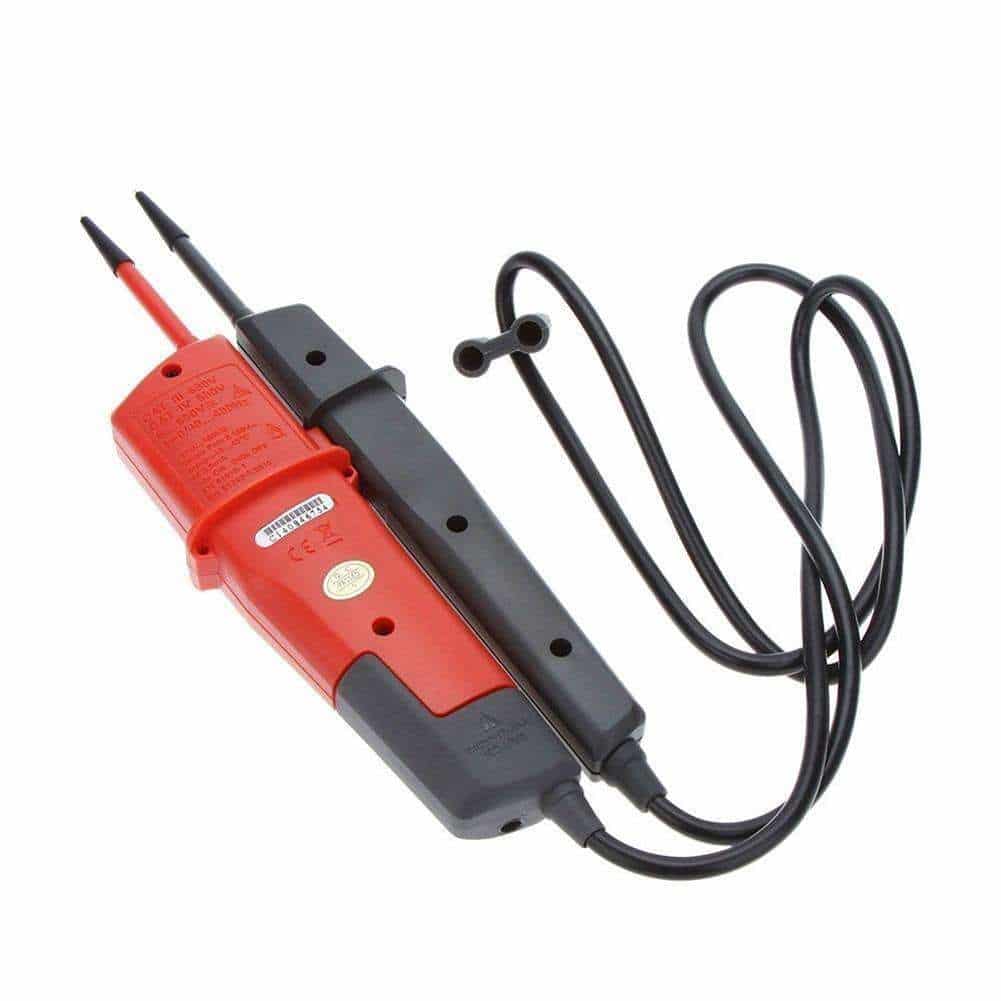

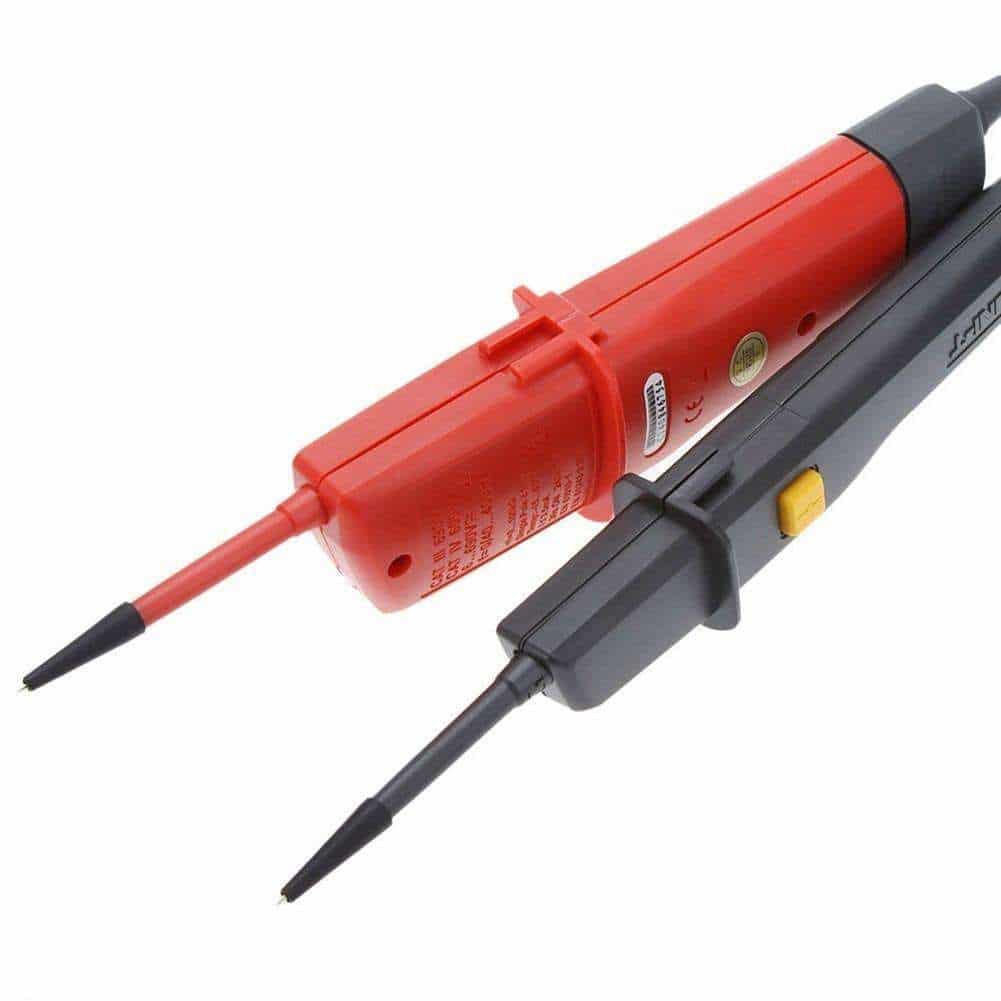

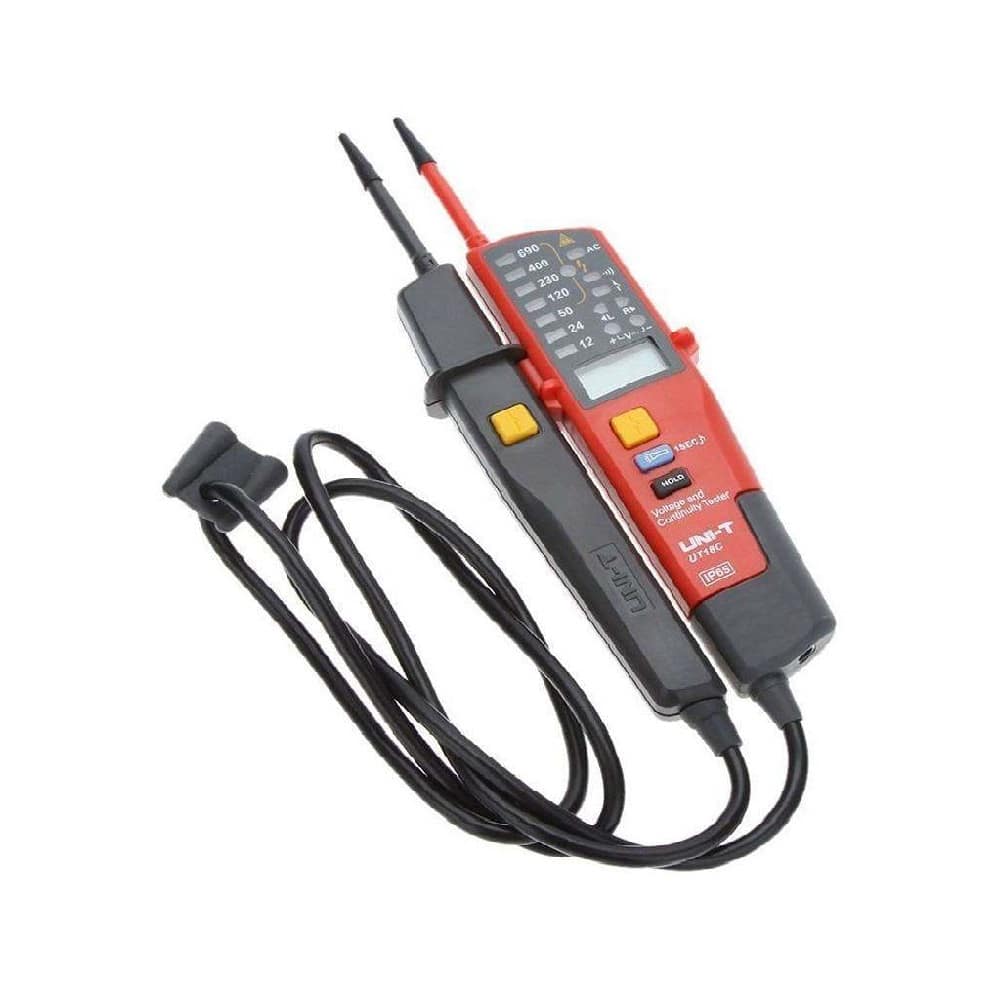

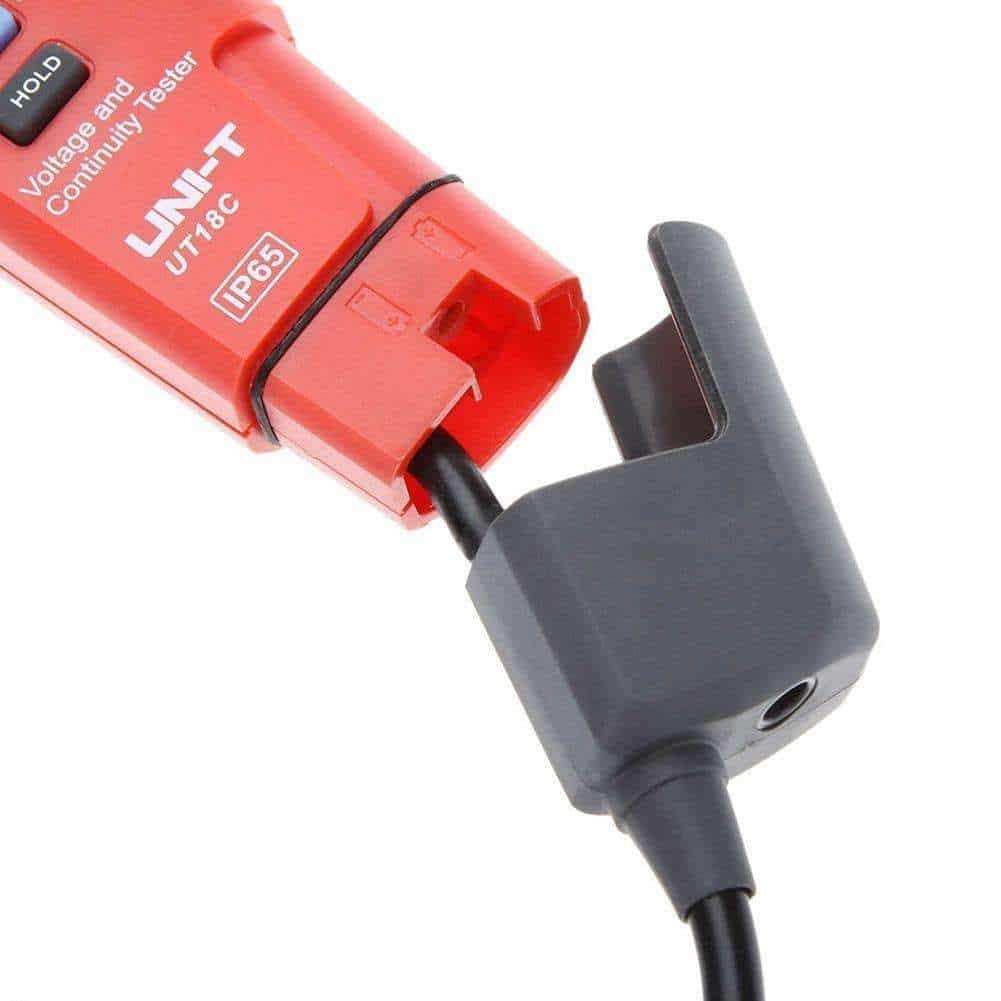

This device is categorized as CAT IV 600V and meets IP65 standard. Application fields for UT18C include smelting, electronics, manufacturing, and electrical. It is a perfect tool for electricians, to quickly measure voltage levels in any harsh environments. It should NOT be used in 110V electrical systems.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
UT18C Voltage And Continuity Tester Features:
- CAT IV 600V rating
- Auto power off, the conductor to be measured is greater than 12V
- Phase rotation test
- Continuity test with buzzer and LED indication
- RCD: Detecting leakage protective switch
- Low battery Indication and over-voltage prompt
- LED prompt
- Flashlight
- Test live voltage without batteries
- Buzzer and silent mode
- Auto standby mode
- Auto range/Inspection
- Voltage, frequency display
- Data hold
- Polarity indication
- 12-month warranty.
UT18C Voltage And Continuity Tester Includes:
1 x UT18C, 1 x English user manual, 1 x Batteries and 12-month warranty.
UT18C Voltage And Continuity Tester Specifications:
| Specifications | Range | UT18C | UT18D |
| Voltage (V) | 6V | 5V±1V | |
| 12V | 8V±1V | 8V±1V | |
| 24V | 18V±2V | 18V±2V | |
| 50V | 38V±4V | 38V±4V | |
| 120V | 94V±8V | 94V±8V | |
| 230V | 180V±14V | 180V±14V | |
| 400V | 325V±15V | 325V±15V | |
| 690V | 562V±24V | 562V±24V | |
| Phase rotation test | 57Vac～400Vac (3 phase) | √ | √ |
| Frequency: 50Hz~400Hz | |||
| Single lead (L2) voltage detection |
Operating voltage: 100V~690V | √ | √ |
| Frequency: 50Hz~400Hz | |||
| Continuity test | Resistance: 0Ω~100kΩ (+50% accuracy) | √ | √ |
| Beeper and LED light indication | |||
| RCD test | Operating voltage: 230V (50Hz~400Hz) | √ | √ |
| Polarity detection | Positive & Negative | √ | √ |
| Self-inspection | All LED or LCD | √ | √ |
| No power test | Operating voltage: 100~690V | √ | |
| Features | |||
| Voltage indication | LED | LCD | |
| Exceed voltage | Voltage range: 713V~788V | √ | √ |
| Auto standby | Standby current＜10μA | √ | √ |
| Silent mode | All range | √ | √ |
| Work light | √ | √ | |
| Low battery indication | Around 2.5V | √ | √ |
| LCD backlight | √ | ||
| LCD display (voltage) | 6V~690V | ±(1.5%+5) | ±(1.5%+5) |
| LCD display (Frequency) | 40Hz~400Hz | ±(3%+5) | ±(3%+5) |
| IP65 | √ | √ | |
| General Characteristics | |||
| Power | 1.5V battery (R03)×2 | ||
| Display | UT18C: 31mm x 20mm; UT18D: 73.5mm x 35.5mm | ||
| Product colour | Red and grey | ||
| Product net weight | 280g | ||
| Product size (W x H x D) | 272mm x 85mm x 31mm | ||
| Standard accessories | Batteries | ||
| Standard individual packing | Blister, English manual | ||
