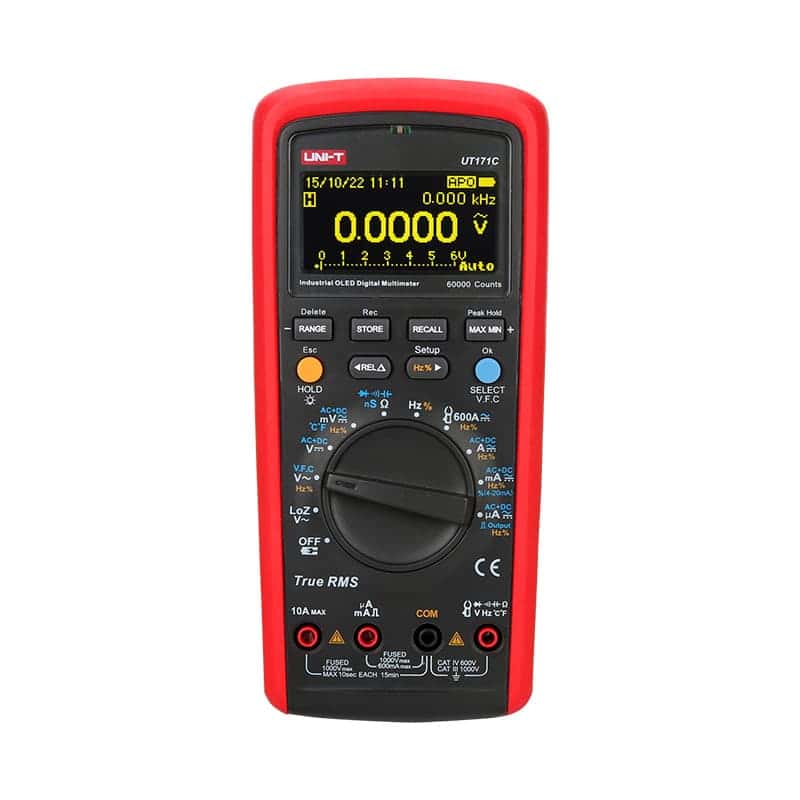

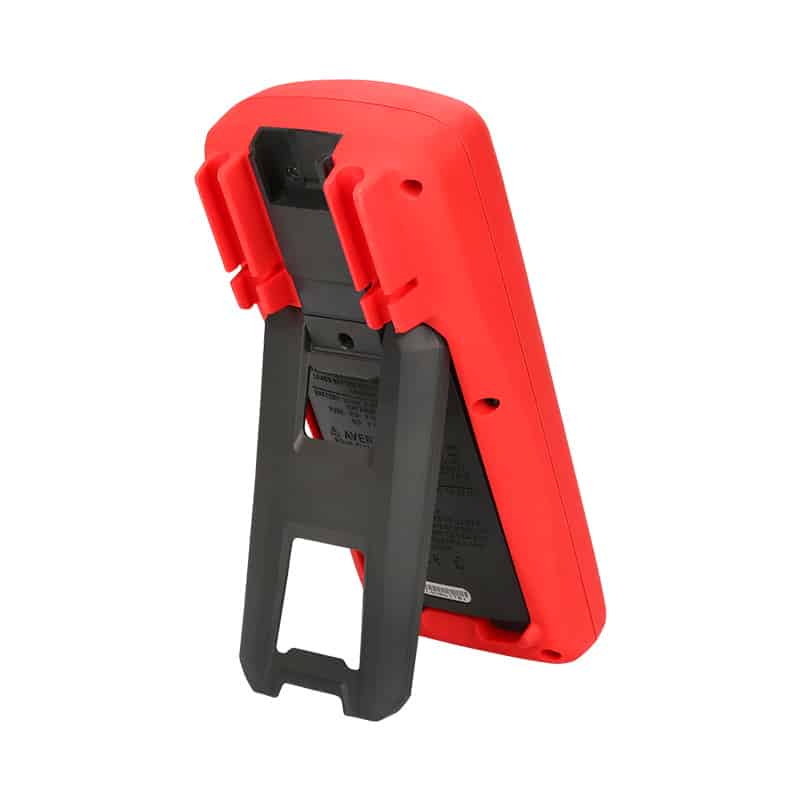

UT171C is an industrial-grade multimeter used by professionals. Its built-in square wave output is useful for troubleshooting industrial control signals. Its LoZ (ACV) feature can be used to identify residual (ghost) voltage in large capacitors.
FEATURES:
- AC+DC measurement
- Peak hold
- Rechargeable battery
- VFC low-pass filtering
- USB/Bluetooth communication.
APPLICATIONS:
- Capacitance measurement
- Resistance measurement.
INCLUDES:
1 x UT171C, 1 x carrying bag, 1 x English manual and 12-month warranty
SPECIFICATIONS:
Specifications | Range | UT171B | UT171C |
DC voltage (V) | 1000V | ±(0.025%+5) | ±(0.025%+5) |
AC voltage (V) | 1000V | ±(0.4%+40) | ±(0.4%+40) |
DC current (A) | 10A | ±(0.15%+2) | ±(0.15%+2) |
AC current (A) | 10A | ±(0.75%+5) | ±(0.75%+5) |
Resistance (Ω) | 40MΩ | ||
60MΩ | ±(0.05%+2) | ±(0.05%+2) | |
Admittance (nS) | 60nS | ±(1%+10) | ±(1%+10) |
Capacitance (F) | 40mF | ||
60mF | ±(2.5%+40) | ±(2.5%+40) | |
Frequency (Hz) | 10Hz~10MHz | ±(0.01%+5) | ±(0.01%+5) |
Temperature (°C) |  -40°C~1000°C | ±(1%+30) | ±(1%+30) |
Temperature (°F) |  -40°F~1832°F | ±(1.5%+50) | ±(1.5%+50) |
Features | |||
Display count | 60000 | 60000 | |
Auto/Manual range | √ | √ | |
True RMS | √ | ||
Bandwidth (Hz) | 100kHz | √ | √ |
4~20mA loop | 0~100% | √ | √ |
LoZ (ACV) | Around 3kΩ | √ | √ |
Diode | Around 3V | √ | √ |
Continuity buzzer | √ | √ | |
Duty cycle | 0.1%~99.9% | √ | √ |
NCV/Data hold/MAX/MIN | √ | √ | |
Relative mode | √ | √ | |
Data storage | 9999 | 9999 | |
Display type | EBTN | OLED | |
Analog bar graph | 31 | 31 | |
LCD backlight | √ | √ | |
Mis-plug alarm | √ | √ | |
Low battery indication | √ | √ | |
Auto power off | √ | √ | |
Input protection | √ | √ | |
Input impedance for DCV | √ | √ | |
Input impedance for DCV | Around 1GΩ | √ | √ |
General Characteristics | |||
Power | 7.4V 2000mAh Li-ion battery | ||
Display | 70.6mm x 35.3mm | ||
Product colour | Red and grey | ||
Product net weight | 384g | ||
Product size | 206mm x 95mm x 55mm | ||
Standard accessories | Batteries, test leads, point contact temperature probe, USB interface cable, power adaptor (UT171B/C), PC software CD |
||
Standard individual packing | Box, carrying bag, English manual |
