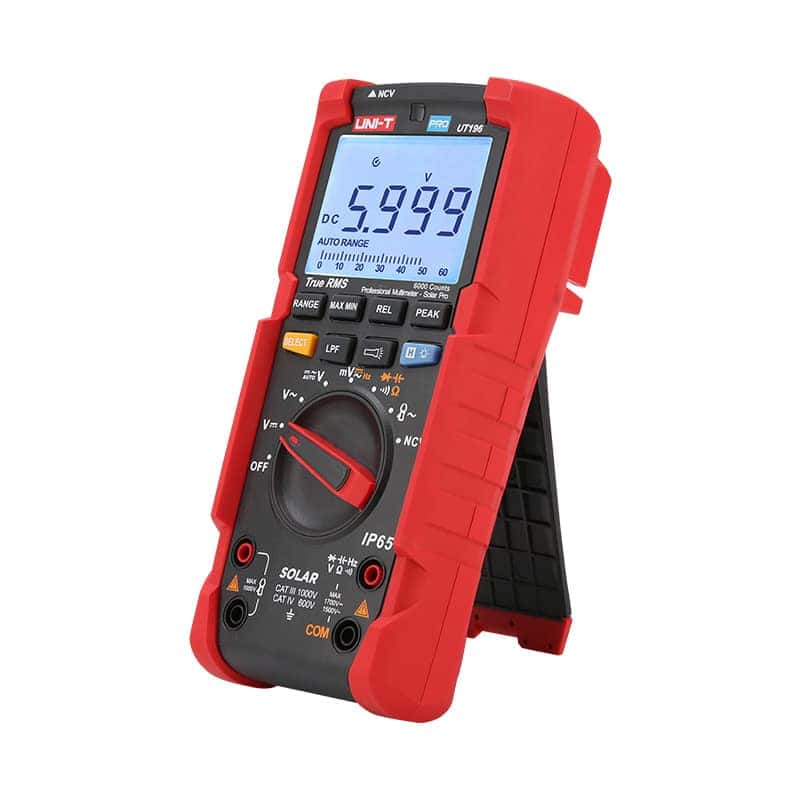

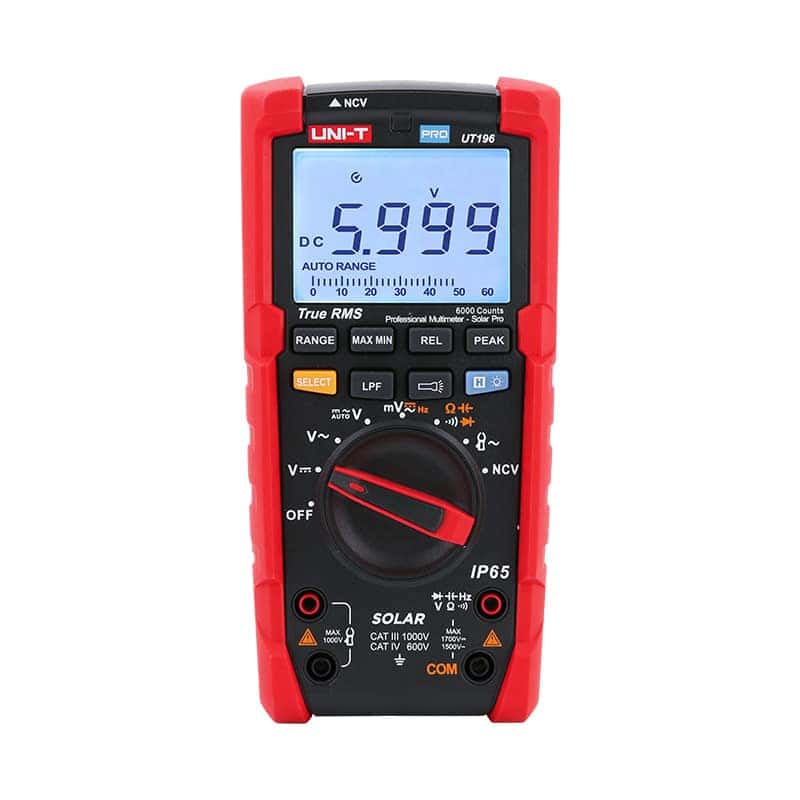

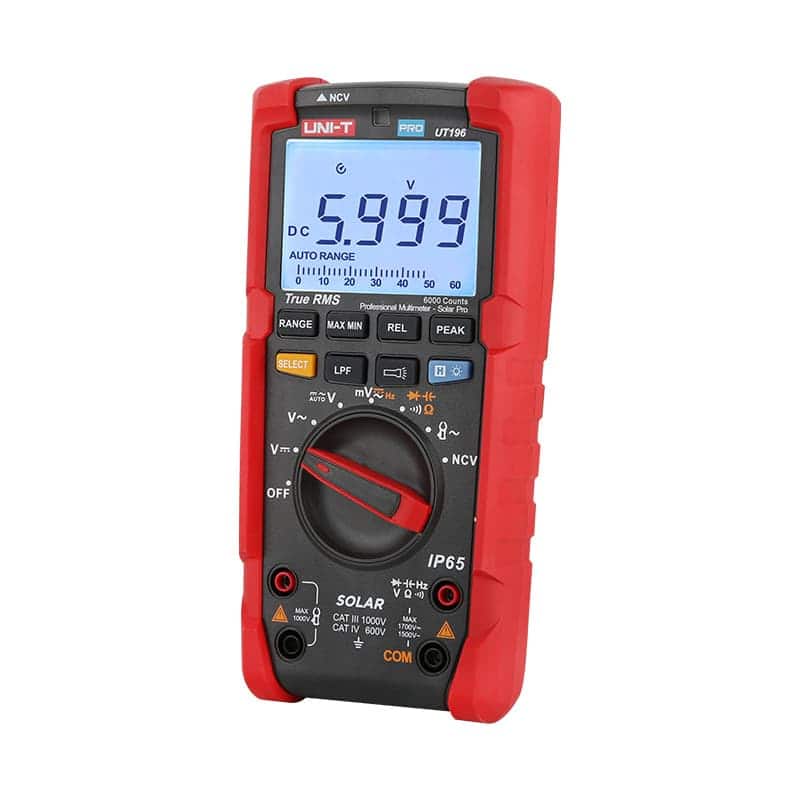

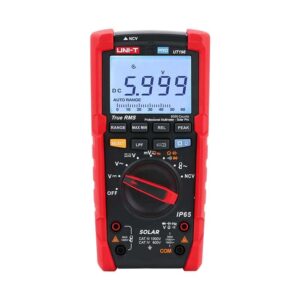

UT196 True RMS solar digital multimeter is an ideal tool for solar power system maintenance. This rugged meter is designed for technicians who work in rugged outdoor environments. UT196 can measure up to 1700V DC and 1500V AC voltages, and 3000A AC current with an external current clamp sensor.
UT196 solar digital multimeter is designed with 1700V DC, 1500Vrms AC overload protection and tested for safe usage in CAT III 1000V, CAT IV 600V environments.
FEATURES:
INCLUDES:
1 x UT196, Test leads, Battery, 1 x Carrying bag, English Manual and 12-Month Warranty.
SPECIFICATIONS:
Specifications | Range | UT196 |
DC voltage(V) | 1700V | ±(0.2%+5) |
AC voltage(V) | 1500V | ±(0.8%+3) |
Frequency (Hz) | 1MHz | ±(0.08%+4) |
Resistance(Ω) | 60MΩ | ±(0.8%+2) |
Capacitance (F) | 60mF | ±(1.9%+5) |
Features | ||
Display count | 6000 | |
True RMS | √ | |
Dual display | √ | |
Auto range | √ | |
NCV | √ | |
Diode test | √ | |
Continuity | √ | |
Relative mode | √ | |
Max/Min | √ | |
Peak hold | √ | |
Low pass filter(LPF) | √ | |
Audible visual indication | √ | |
Low battery indication | <7.5V approximately | √ |
Data hold | √ | |
Analog bar graph | √ | |
Auto power off | Approximately 15 minutes | √ |

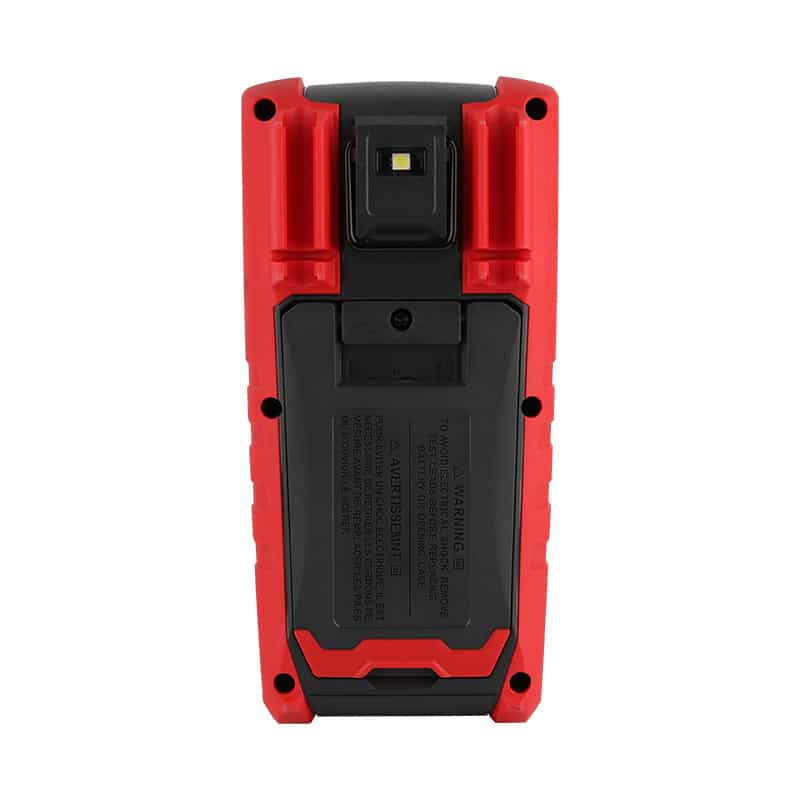

Flashlight | √ | |
IP rating | IP65 | |
Drop test | 2m | |
Safety rating | CAT III 1000V, CAT IV 600V | |
General Characteristics | ||

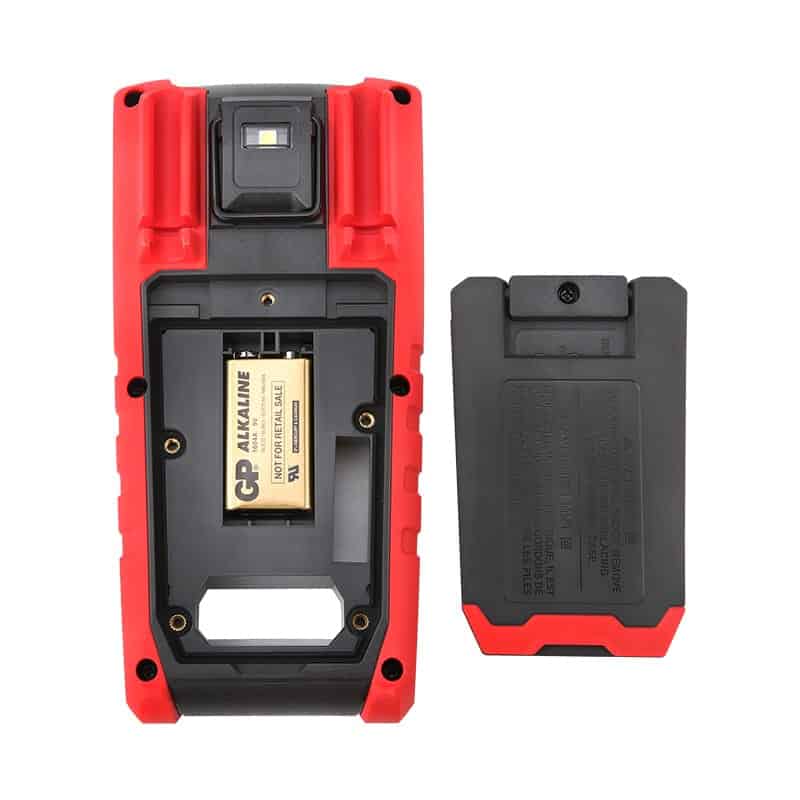

Power | 9V battery | |
Product color | Red+Gray | |
Product net weight | 485g | |
Product size | 195 x 95 x 58mm | |
Standard accessories | English manual, test leads, battery. | |
Standard individual packing | Box, carrying bag. |
