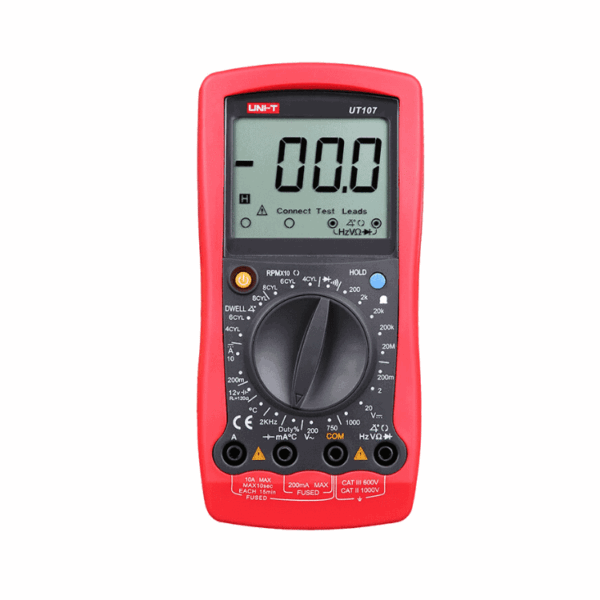

The UNI-T digital automotive multimeter provides a sophisticated measurement technology at a very good price/performance ratio. The automotive Multimeter UT107 effectively helps diagnosing problems with the electronic components of an automobile. This part gives a special introduction as to how the Meter UT107 is used to diagnose any trouble with a fuse, switch, solenoid, relay, starting and charging systems, ignition system, fuel system and engine sensor.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
UT107 Automotive Multimeter Features:
-
- CAT III 600V / CAT II 1000V
- 2000 display count
- Temperature measurement
- Load-free battery test
- Battery power consumption test when the engine is off
- Switch test
- Solenoid or relay test
- Trigger voltage battery load test
- Voltage drop test
- Continuity test
- Dwell/tach test.
UT107 Automotive Multimeter Includes:
1 x UT107, Battery, test leads, holster, point contact temperature probe and a 12-month warranty.
UT107 Automobile Multimeter Specifications:
| Specifications | Range | UT107 |
| DC voltage (V) | 200mV/2V/20V/1000V | ±(0.5%+2) |
| AC voltage (V) | 200V/750V | ±(0.8%+5) |
| DC current (A) | 200mA/10A | ±(0.8%+5) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/20MΩ | ±(0.8%+5) |
| Frequency (Hz) | 2kHz | ±(2%+5) |
| Temperature (°C) | -40°C~1000°C | ±(2%+8) |
| Features | ||
| Display count | 2000 | |
| Manual range | √ | |
| Battery test | 12V | ±(3%+5) |
| Duty cycle | 1%~90% | ±(4%+5) |
| Input impedance for DCV | Around 10MΩ | √ |
| Dwell/Tach | 4CYL/6CYL/8CYL | ±(3%+5) |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 60mm x 54mm | |
| Product colour | Red and grey | |
| Product net weight | 351g (including holster) | |
| Product size | 179mm x 88mm x 39mm | |
| Standard accessories | Battery, test leads, holster, point contact temperature probe | |
| Standard individual packing | Box, English manual | |
