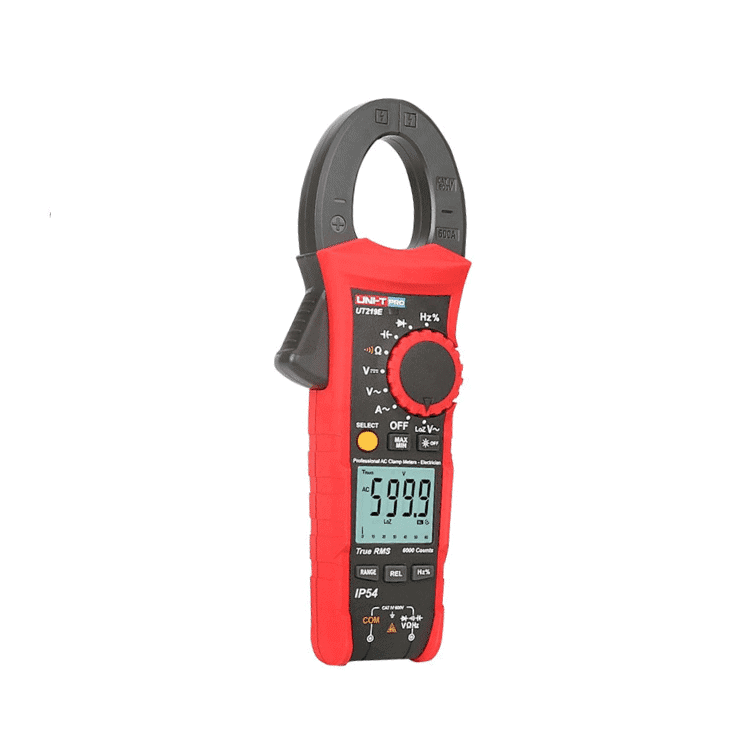

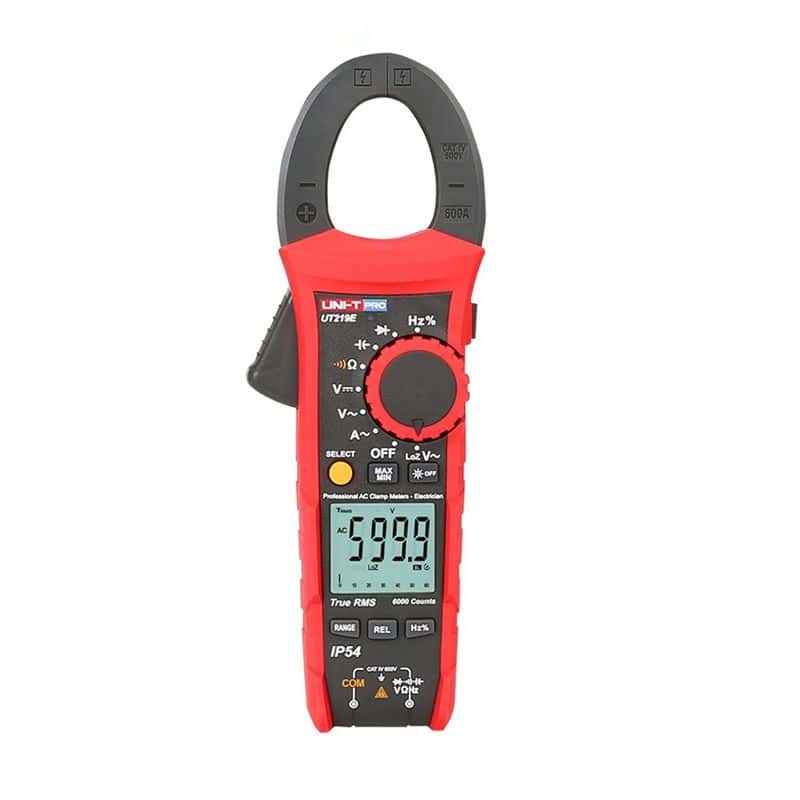

It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.

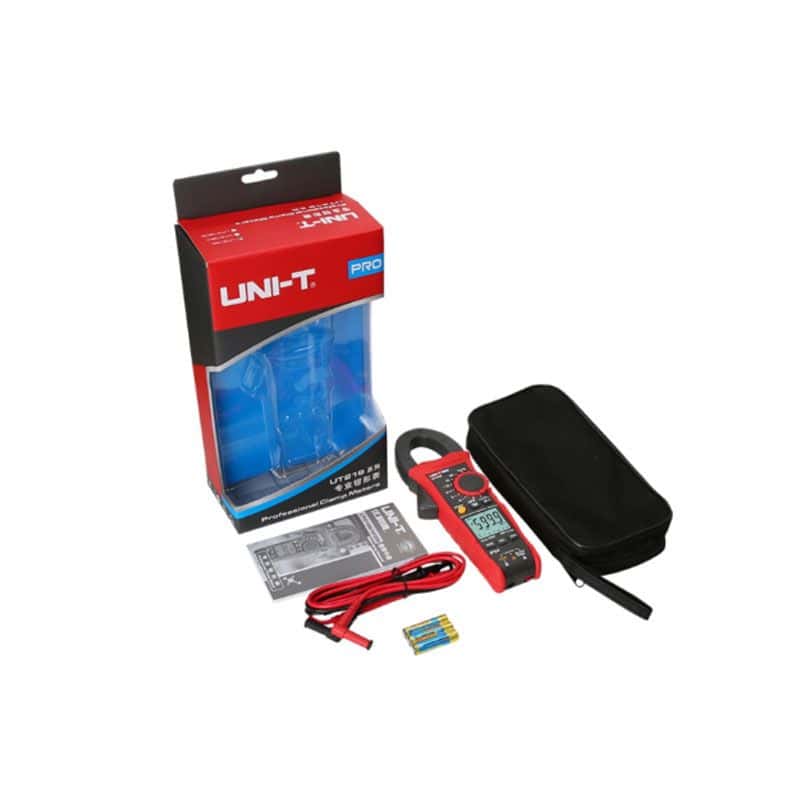

The UT219E is part of the professional 219 series clamp meters, also see the UT219M and UT219DS.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
UT219E Professional Clamp Meter Features:
-
- CAT III 1000V / CAT IV 600V rating
- Large 6000-digit LCD display
- True RMS
- LoZ voltage test, for ghost voltage measurement
- Auto/Manual range
- MAX/MIN/REL testing mode
- Data hold
- Function selection (SELECT)
- Auto backlight
- Auto power off
- Low battery indication
- Drop-proof up to 2 meters
- IP54 protection
- 12-month warranty.

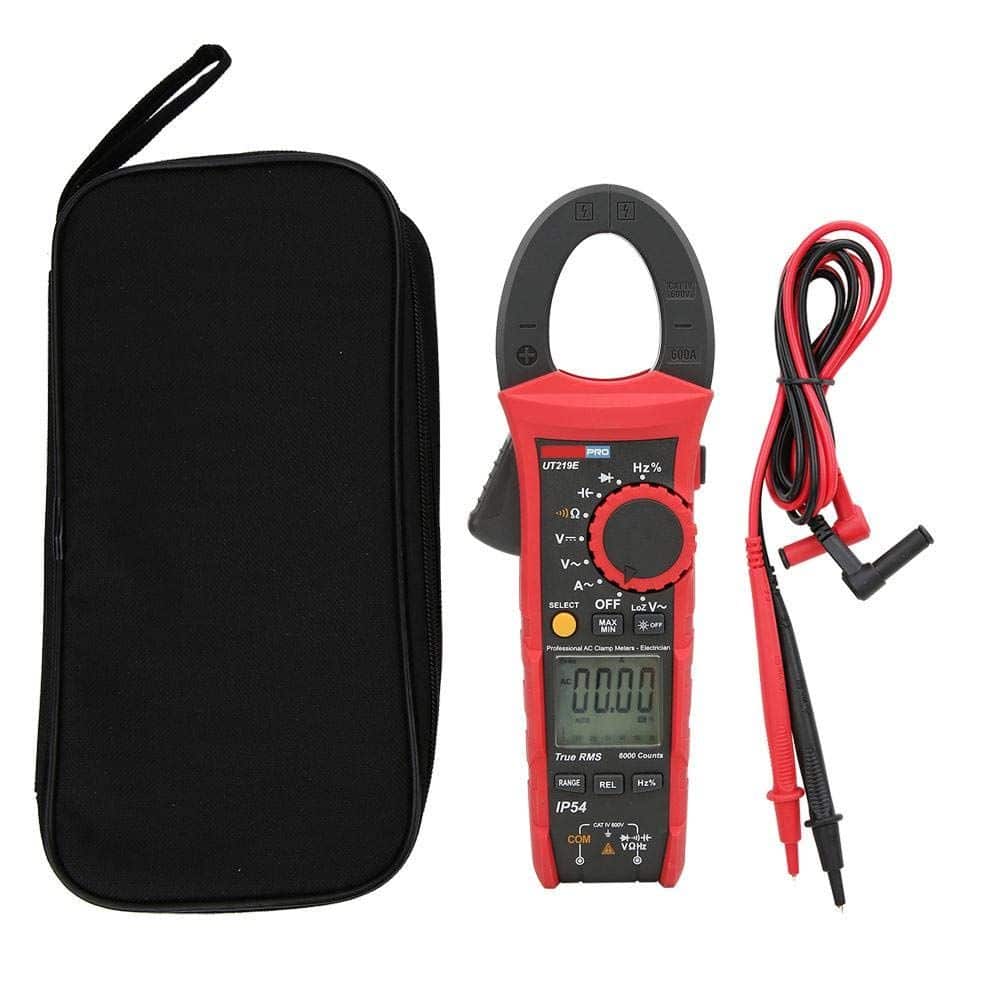

UT219E Professional Clamp Meter Includes:
1 x UT219E, Test leads, batteries, carrying bag, and a 12-month warranty.
UT219E Professional Clamp Meter Specifications:
Specifications | Range | UT219E | UT219M | UT219DS |
AC current (A) | 600A | ±(1.8%+6) | ±(1.8%+6) | ±(1.8%+6) |
DC current (A) | 600A | ±(1.8%+6) | ||
AC voltage (V) | 600V | ±(1%+6) | ±(1%+6) | ±(1%+6) |
DC voltage (V) | 600V | ±(0.6%+3) | ±(0.6%+3) | ±(0.6%+3) |
LoZ ACV | 600V | ±(2.5%+6) | ±(2.5%+6) | ±(2.5%+6) |
Resistance (Ω) | 60MΩ | ±(1%+3) | ±(1%+3) | ±(1%+3) |
Capacitance (F) | 60mF | ±(4%+7) | ±(4%+7) | ±(4%+7) |
Frequency (Hz) | 10Hz~10MHz | ±(0.1%+6) | ||
600Hz~40MHz | ±(0.1%+5) | ±(0.1%+6) | ||
Duty cycle | 0.1%~99.9% | ±(2.6%+7) | ±(2.6%+7) | |
Temperature | -40~1000℃ | ±(2%+5℃) | ±(2%+5℃) | |
-40~1832℉ | ±(2%+9℉) | ±(2%+9℉) | ||
Features | ||||
Display count | 6000 | 6000 | 6000 | |
Auto/Manual range | √ | √ | √ | |
Jaw opening | 33mm | 33mm | 33mm | |
True RMS | √ | √ | √ | |
AC current frequency response | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | |
AC voltage frequency response | 40Hz~400Hz | 40Hz~400Hz | 40Hz~1kHz | |
3-phase motor sequence test | 600V | √ | √ | |
Low pass filter | 1kHz, 3db attenuation | √ | ||
V+A displays voltage and current at the same time | √ | |||
Diode test | 3V | 3V | 3V | |
Measurement sampling rate | 3 times/s | 3 times/s | 5 times/s | |
Analog bar sampling rate | 10 times/s | 20 times/s | ||
Analog bar | 31 segment | 31 segment | ||
Display interface (LCD) | Single | Single | Dual | |
Auto power off/MAX/MIN | √ | √ | √ | |
Low battery indication | √ | √ | √ | |
Data hold (H)/Relative mode (REL) | √ | √ | √ | |
ZERO mode | √ | √ | √ | |
Function selection (SELECT) | √ | √ | √ | |
Auto backlight/2m drop test | √ | √ | √ | |
IP rating | IP54 | IP54 | IP54 | |
Input impedance | ≥10MΩ | √ | √ | √ |
General Characteristics | ||||
Power | 1.5V battery (R03) x 3 | |||
Display | 35mm x 31mm | |||
Product colour | Red and grey | |||
Product net weight | 310g | |||
Product size | 234.6mm x 82mm x 47mm | |||
Standard accessories | Test leads, batteries, carrying bag, Â PC software CD, point contact temperature probe (UT219M/UT219DS) | |||
Standard individual packing | Box, blister, English manual |
