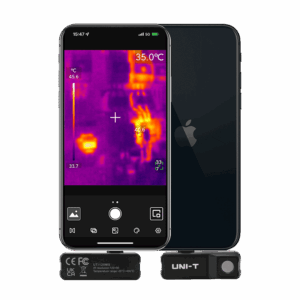

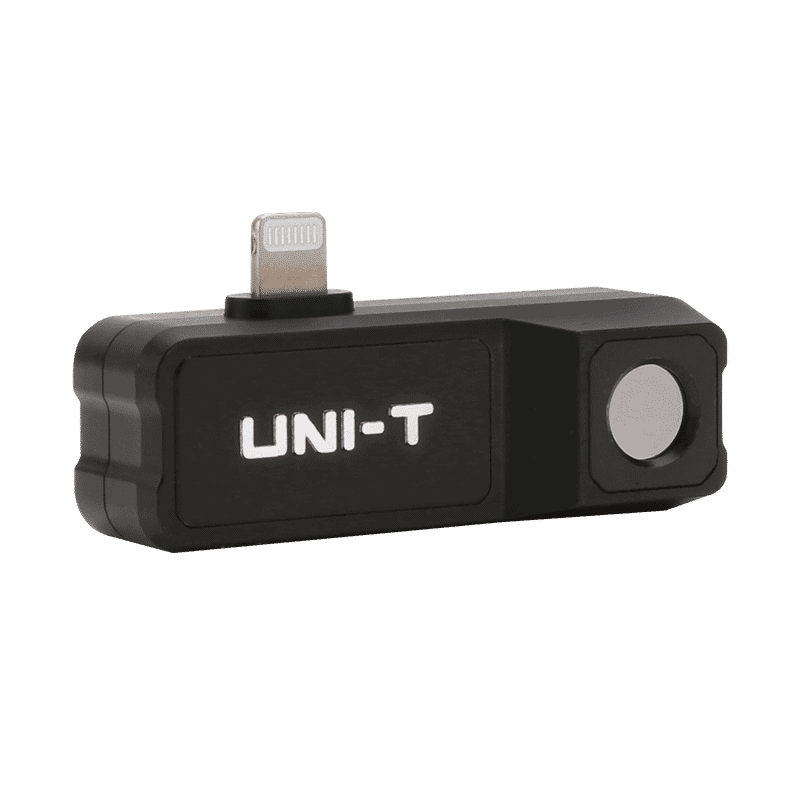

UTi120MS is a professional smartphone thermal camera module for iPhone, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120MS provides clear images with a fast response, and can detect temperatures up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners, outdoor lovers, engineers, contractors, builders, etc.
APPLICATIONS:
- Manufacturing
- Machine Inspection
- PCBA Inspection
- Freezer Inspection
- Electricity Inspection
- Pipeline Inspection
- Motor Inspection.
FEATURES:
- IR resolution: 120×90
- Temperature measurement range: -20℃to 400℃  / -4℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On-screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6
- Image capture
- Video recording
- Image modes: Thermal, Fusion, PIP
- Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
- Phone: iPhone (USB LightningType-C interface)
- 1m extension cable
- 2m drop proof.
INCLUDES:
1 x UTi120MS, Documents download operation guide card, 1 x English manual and 12-month warranty.
SPECIFICATIONS:
| Technical Data | |
| IR resolution (Pixels) | 120×90 |
| Field of view(FOV) | 50°×38° |
| Thermal sensitivity(NETD) | ≤60mK @25℃ |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus free |
| Lens focal length | 2.28mm |
| Temperature measurement range |  -20℃ ~ 400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Colour palettes | 7 (White hot, Lava, Ironbow, Black hot, Red hot, Rainbow, Rainbow HC) |
| Image modes | Thermal, Fusion, PIP |
| On-screen analyzer | 6 Points/6 Lines/6 Rectangles/6 Circles |
| Hi/Lo temperature alarm | √ |
| Video recording | √ |
| General Characteristics | |
| USB | Lightning |
| Drop-proof | 1m |
| Image/Video storage format | JPEG, MP4 |
| Certificates | CE,UKCA, FCC,RoHS, MFi |
| Product net weight | 25g |
| Product size | 53mm×18.2mm×18.5mm |
| Packing Details | |
| Standard accessories | English manual, Documents download operation guide card |
| Standard individual packing | Box |
