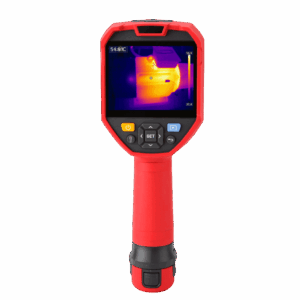

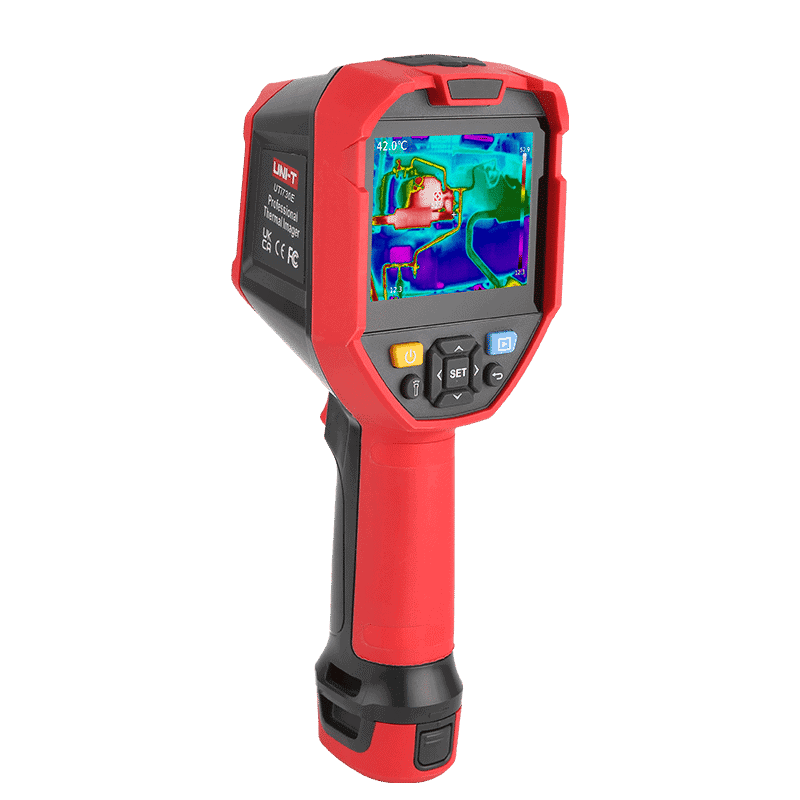

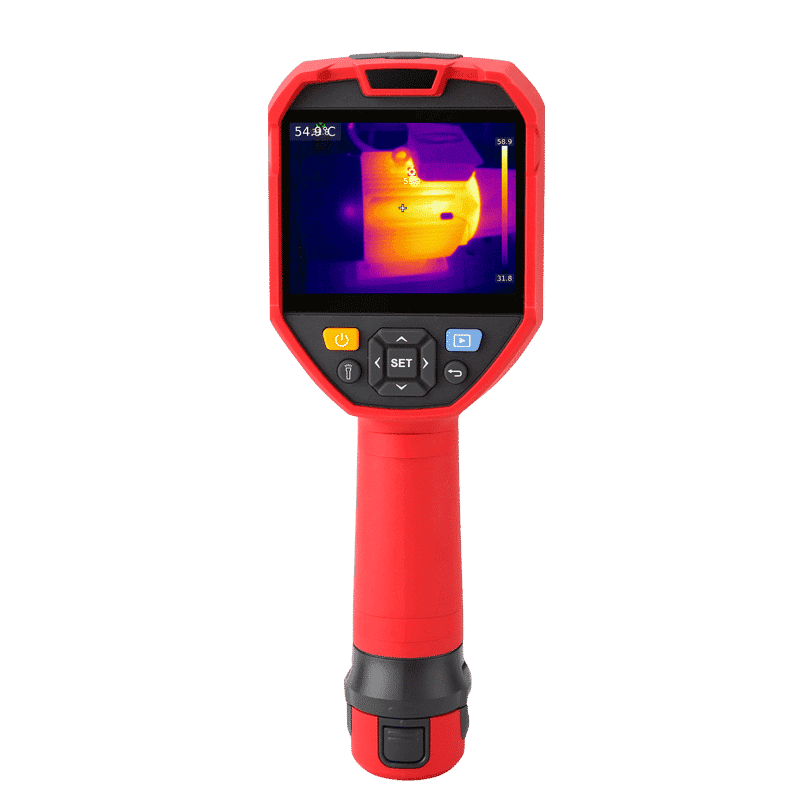

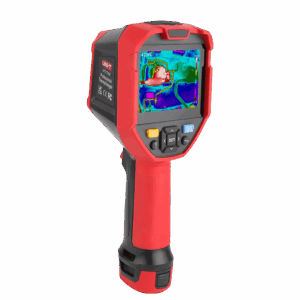

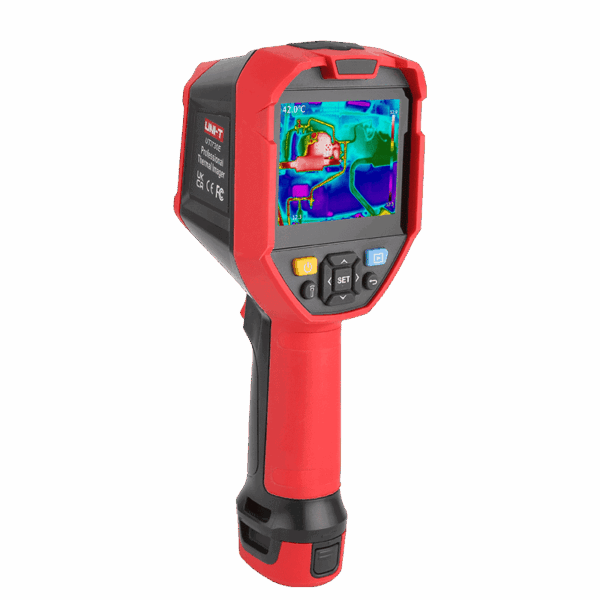

UTi730E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 320×240 thermal resolution 2MP visual camera, or a blended image of both. UTi730E’s detachable battery pack is also convenient for easy and quick battery change, allowing continuously work for long periods of time.
Features :
- 3.5” IPS display screen (640×480 Pixels)
- IR resolution: 320×240
- Temperature measurement range: -40℃ to 400℃ / -40℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On display screen analyzer : Point 5/Line 1/Rectangle 3/Circle 3
- Image capture
- Digital camera resolution: 2MP
- Digital zoom: 2x, 4x
- Image modes: Thermal,Visual image,Fusion,PIP
- Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
- Isotherm (Auto/Ratio/Below/Above/Section/Manual)
- LED flashlight
- Wi-Fi connection through Mobile APP
- QR Code – photo management
- PC software: analysis and real-time image projection
- 5200mAh replaceable battery pack (Type C rechargeable)
- 1/4”tripod mounting hole
- IP54
- 2m drop proof

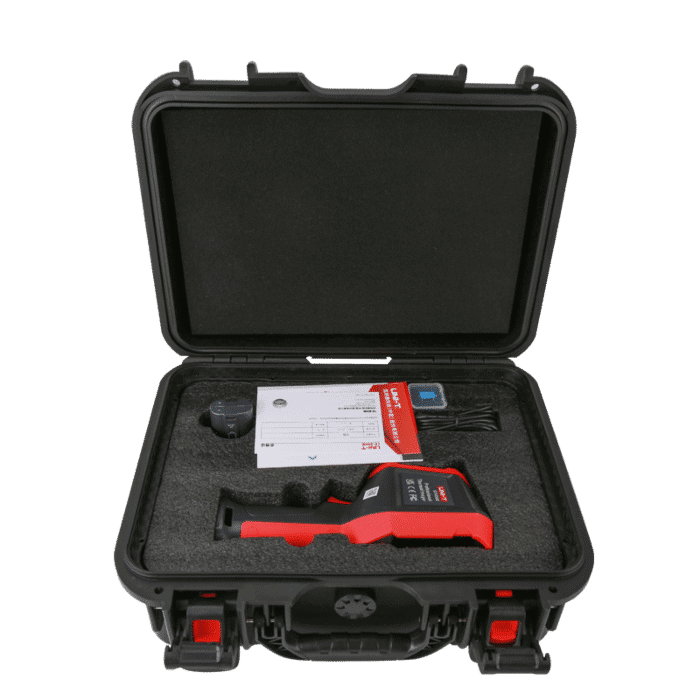

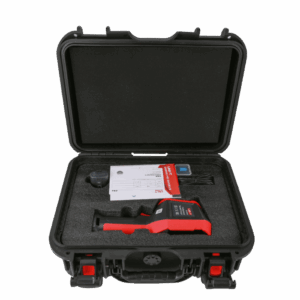

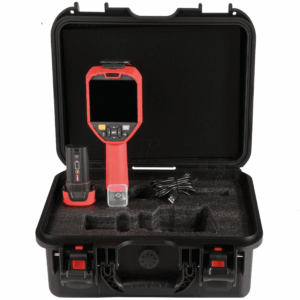

Includes:
1 x UTi730E, 1 16 Micro SD card,1 x Type-C USB cable, 1 x English manual, 1 x Li-ion battery pack, 1 x 12 Month Warranty
Specifications:
Technical Data | |
IR resolution (Pixels) | 320×240 |
Display | 3.5‘’IPS (640*480) |
Field of view(FOV) | 56°×42° |
Thermal sensitivity(NETD) | ≤65mK @25℃ |
Spatial resolution(IFOV) | 3mrad |
Frame rate | ≤9Hz |
Focus | Focus Free |
Temperature measurement range | -40℃~400℃ |
Accuracy | ±2℃ or ±2% whichever is greater |
Emissivity | 0.01~1.00 adjustable (0.95 default) |
Functions | |
Color palettes | 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava) |
Image modes | Thermal,Visual image,Fusion,PIP |
On screen analyzer | Point 5/Line 1/Rectangle 3/Circle 3 |
Digital camera resolution | 2MP |
Digital zoom | 2x, 4x |
Hi/Lo temperature alarm | Icon,LED flashlight |
Isotherm | 6 (Auto/Ratio/Below/Above/Section/Manual) |
PC software analysis | √ |
Wi-Fi | √ |
General Characteristics | |
Battery | Detachable Li-ion battery pack(3.7V 5200mAh) |
Battery operation time | ≥ 4 hours (without Wi-Fi) |
USB | Type-C |
IP rating | IP54 |
Drop proof | 2m |
Storage | 16G Micro SD card |
Image/Video storage format | JPEG |
Certificates | CE,UKCA,FCC,RoHS |
Product net weight | 630g |
Product size | 260mm×97mm×99mm |
Packing Details | |
Standard accessories | Micro SD card,Type-C USB cable, English manual, Li-ion battery pack |

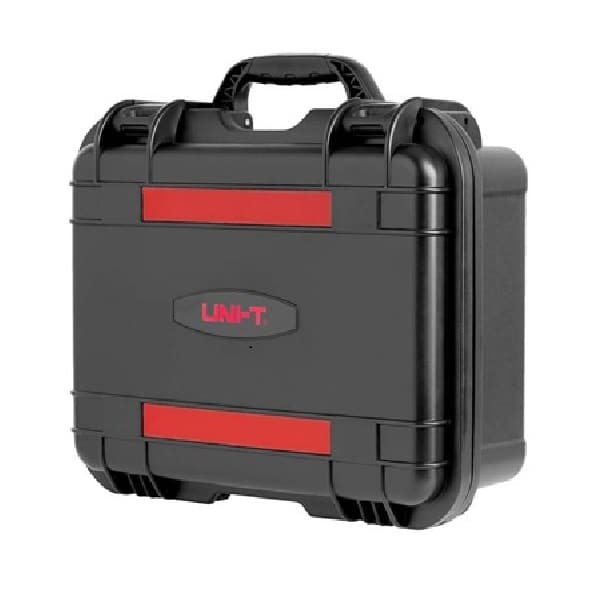

Standard individual packing | Toolbox,Gift box |
Standard Qty per carton | 1 |
Standard carton size | 400mm×185mm×345mm |
Standard carton G.W. | 3.6kg |
