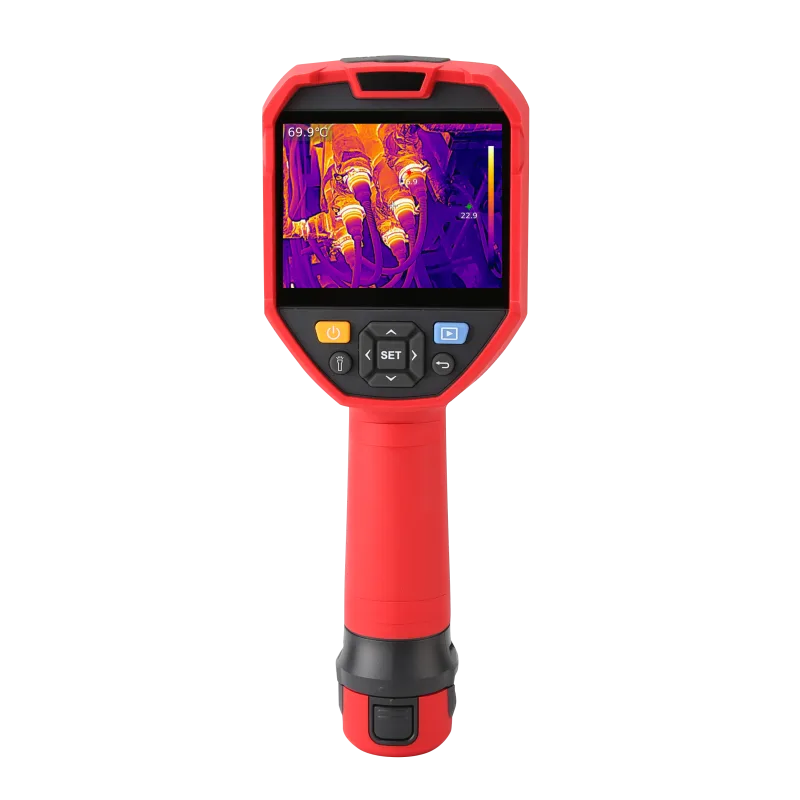

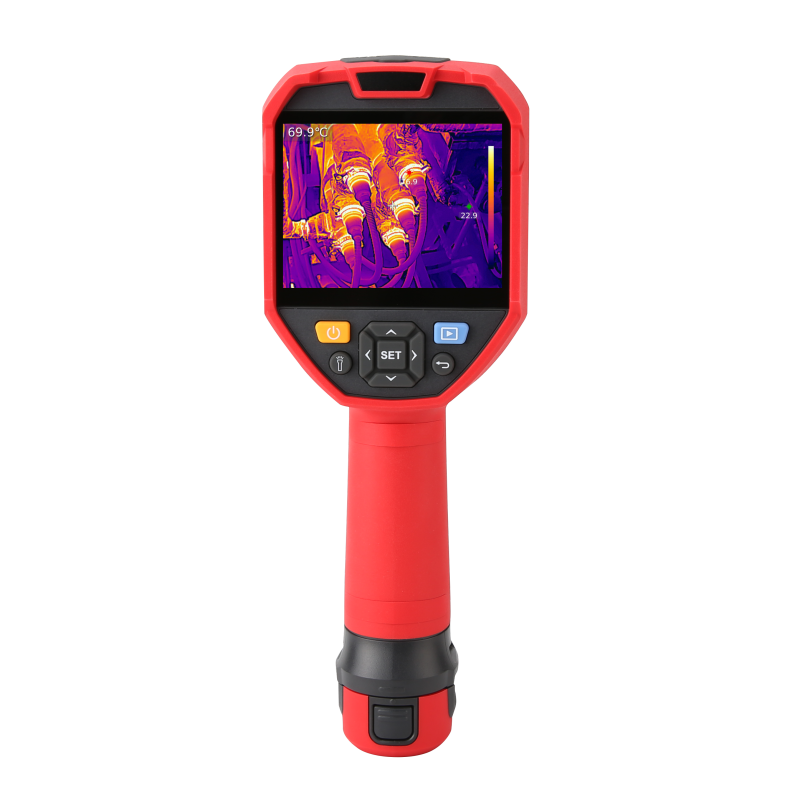

The UNI-T UTi740E is a professional handheld thermal imager designed for electrical maintenance, HVAC inspection, building diagnostics, and industrial applications. It combines high-resolution infrared imaging with visual imaging and advanced image-fusion modes to help technicians identify temperature differences and potential problems quickly. With 384 × 288 infrared resolution, 30 Hz refresh rate, a wide temperature measurement range, and built-in Wi-Fi and video recording, it provides a practical solution for detailed thermal inspection and reporting.
FEATURES
- 384 × 288 infrared resolution
- Up to 768 × 576 super-resolution imaging
- 30 Hz refresh rate for smooth thermal imaging
- Temperature measurement range of -20°C to 650°C
- High measurement accuracy up to ±1.5°C / ±1.5%
- T-Mix 2.0 image fusion for enhanced thermal and visual image comparison
- Thermal, visual, fusion, and picture-in-picture (PIP) image modes
- 5MP digital camera
- 2× and 4× digital zoom
- Built-in Wi-Fi and Wi-Fi live streaming
- Video recording capability
- High/low temperature alarm and tracking
- Built-in LED lighting
- IP54 protection and 2 m drop resistance
- PC and mobile app analysis software support
INCLUDES
- Type-C USB Cable
- SD Card
- 2 × Li-ion Battery Packs
- Quick Start Guide
- Operation Guide / Documentation
- Toolbox and Gift Box
SPECIFICATIONS
- IR Resolution: 384 × 288
- Super Resolution: Up to 768 × 576
- Temperature Measurement Range: -20°C to 650°C
- Measurement Accuracy: Up to ±1.5°C / ±1.5%
- Refresh Rate: 30 Hz
- Image Modes: Thermal, Visual Image, T-Mix Fusion, PIP
- Digital Camera Resolution: 5MP
- Digital Zoom: 2×, 4×
- Image Storage Format: Radiometric JPEG
- Video Format: MP4
- Storage: 32GB SD Card
- Display: IPS LCD
- Battery: 5200mAh Detachable Li-ion Battery Pack (UT-M17)
- Battery Life: ≥4 Hours with Wi-Fi Off
- Interface: USB Type-C
- Protection Rating: IP54
- Drop Resistance: 2 m
- Dimensions: 260 × 97 × 99 mm
- Weight: 700 g
- Certifications: CE, FCC, RoHS
