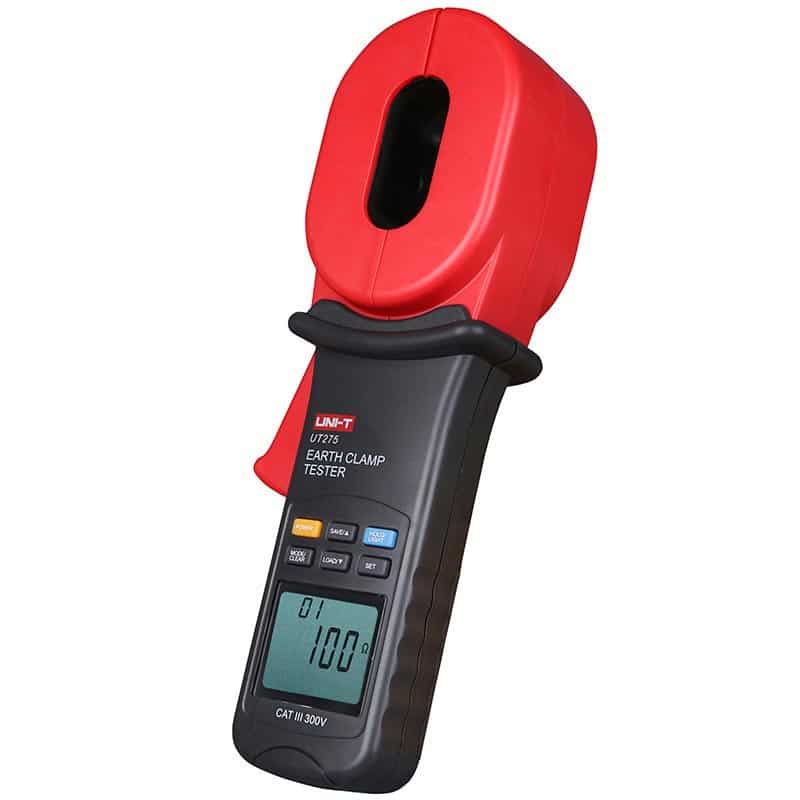

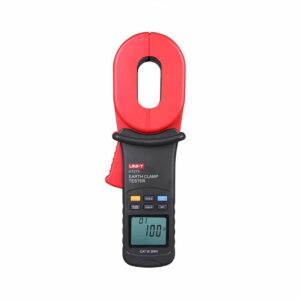

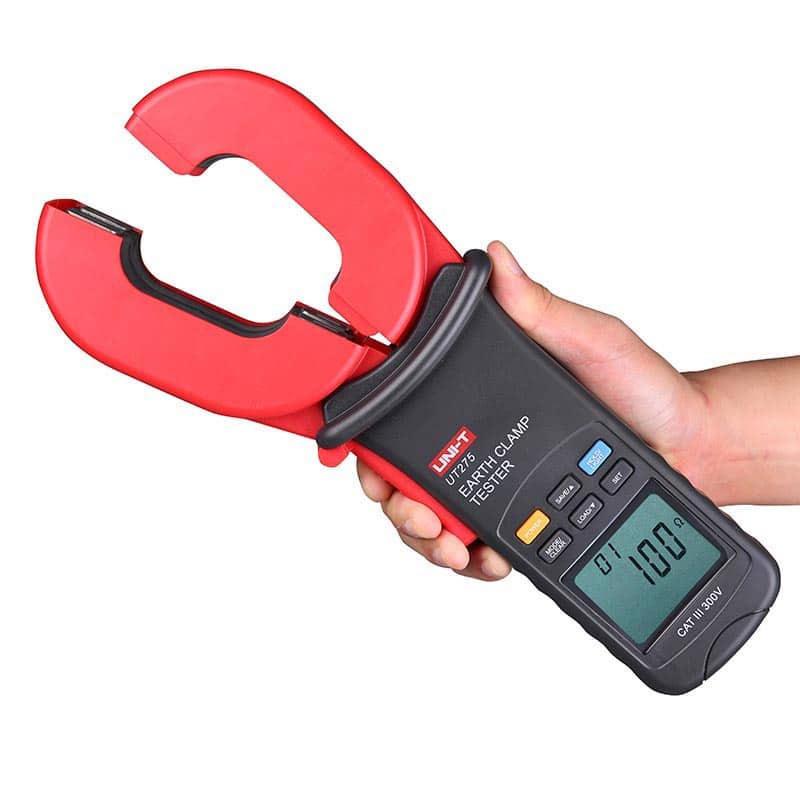

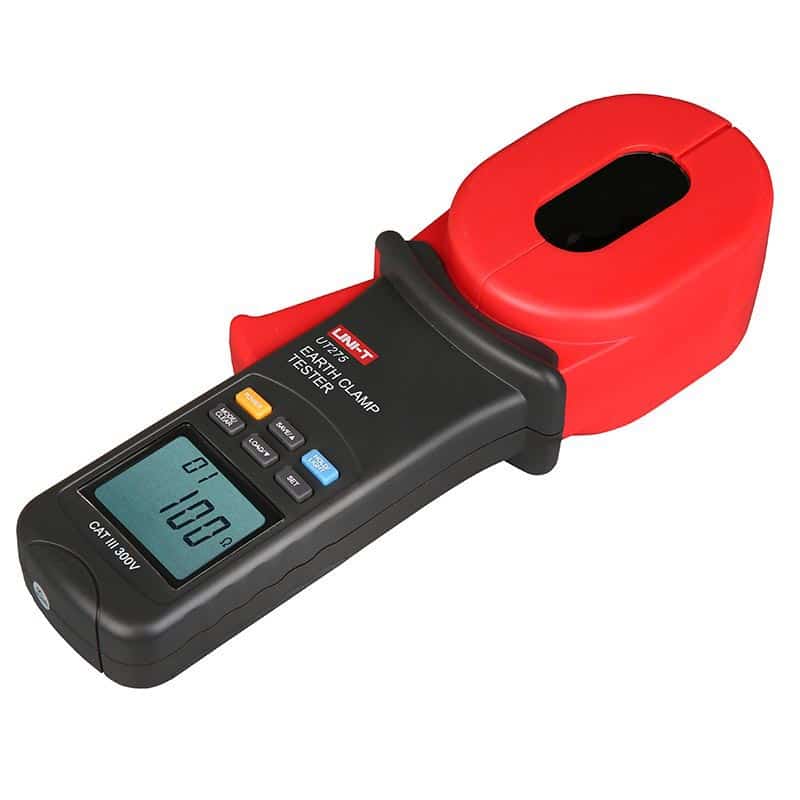

UT270 series can quickly and safely measure the grounding system without disconnecting circuit ground lines or the need of auxiliary electrodes. It can measure resistance from 0.01Ω with a resolution of 0.001Ω. UT275 can also measure leakage current up to 30A. These clamps double insulation design makes them durable tools for outdoor work and effective in blocking interference signals from the environment.
Applications:
Electric power, telecommunication, meteorology, oil field, building and industry.
FEATURES:
- Resistance limit alarm
- Auto range
- Low battery indication
- Data hold
- Data recall
- LCD backlight
- Auto calibration.
INCLUDES:
1 x UT275, box, test ring, batteries, English manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT275 |
| Earth Ground Resistance (Ω) | 0.01~0.099Ω | ±(1%+0.01) |
| 0.1~0.99Ω | ±(1%+0.01) | |
| 1~49.9Ω | ±(1.5%+0.1) | |
| 50~99.5Ω | ±(2%+0.5) | |
| 100~199Ω | ±(3%+1) | |
| 200~395Ω | ±(10%+5) | |
| 400~590Ω | ±(20%+10) | |
| 600~1000Ω | ±(25%+20) | |
| Leakage current (A) | 0mA~299mA | ±(2.5%+2mA) |
| 0.3A~2.99A | ±(2.5%+100mA) | |
| 3A~30A | ±(2.5%+300mA) | |
| Features | ||
| Display count | 10000 | |
| Jaw opening | 28mm | |
| Auto power off | √ | |
| Data storage | 30 | |
| General Characteristics | ||
| Power | 1.5V battery (LR6) x 4 | |
| Display | 47mm x 28.5mm | |
| Product colour | Red and grey | |
| Product net weight | 1320g | |
| Product size | 293mm x 90mm x 66mm | |
| Standard accessories | Batteries, test ring, toolbox | |
| Standard individual packing | Box, English manual | |
