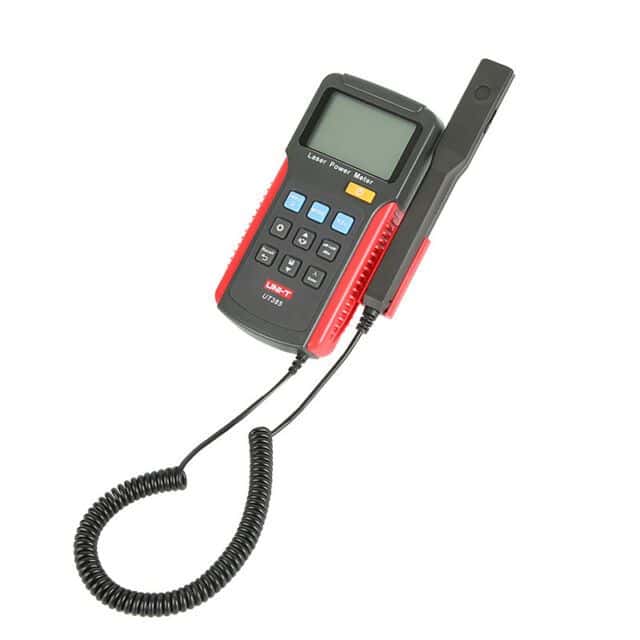

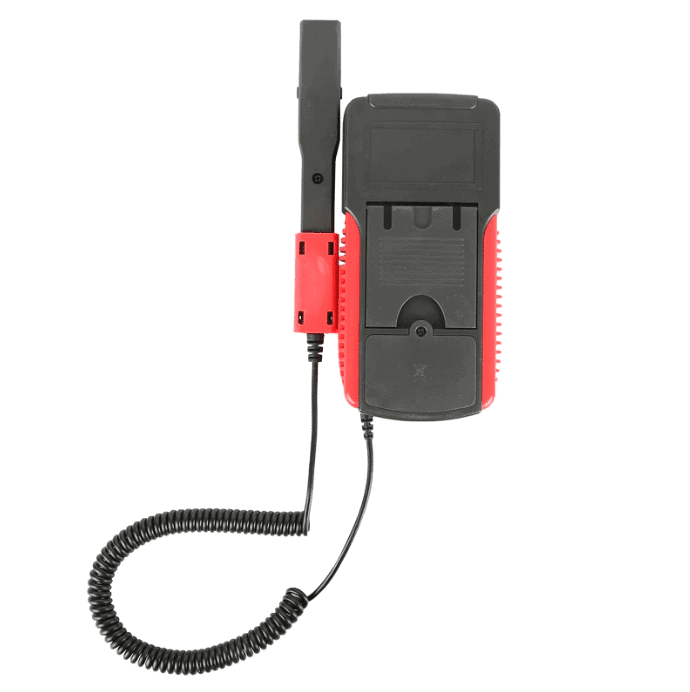

UT385 Laser power meter is used to measure the energy output of laser beams for testing or laser system applications. It uses detection sensor to determine the intensity of a laser beam’s energy output. It is widely used in laboratories, teaching, medical science, industry and other fields.
FEATURES:
- Precise laser sensor
- Split design with retractable spring wire
- LCD screen for clear readings
- Data storage function
- Selectable and customizable wavelengths
- Threshold alarm function
- Low power consumption.
INCLUDES:
1 x UT385, Battery, USB cable, Box, English manual and 12-Month Warranty.
SPECIFICATIONS:
| Specifications | Range | |
| Certificates | CE, RoHS | |
| Measurement range | 0uW~39.99mW | |
| Measurement accuracy | 0uW~10uW: ±(5%+0.3); 10uW~39.9mW: ±5% | |
| Laser wavelength range | 400nm~1100nm | |
| Laser wavelength preset options | 520nm, 633nm, 650nm, 780nm | |
| LCD display | 4-digit LCD display | |
| Sampling rate | 0.5s | |
| Data storage | 199 sets | |
| Battery level indication | √ | |
| LCD backlight | √ | |
| Auto power off | √ | |
| Operating temperature | 0~40°C | |
| Operating humidity | 80%RH (no condensation) | |
| Storage temperature | -10°C~50°C | |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 57mm x 37mm | |
| Product net weight | 319g | |
| Product size | 198mm x 104mm x 35mm | |
| Standard accessories | Battery, USB cable, documents download guide, English manual | |
| Standard individual packing | Box, toolbox | |
