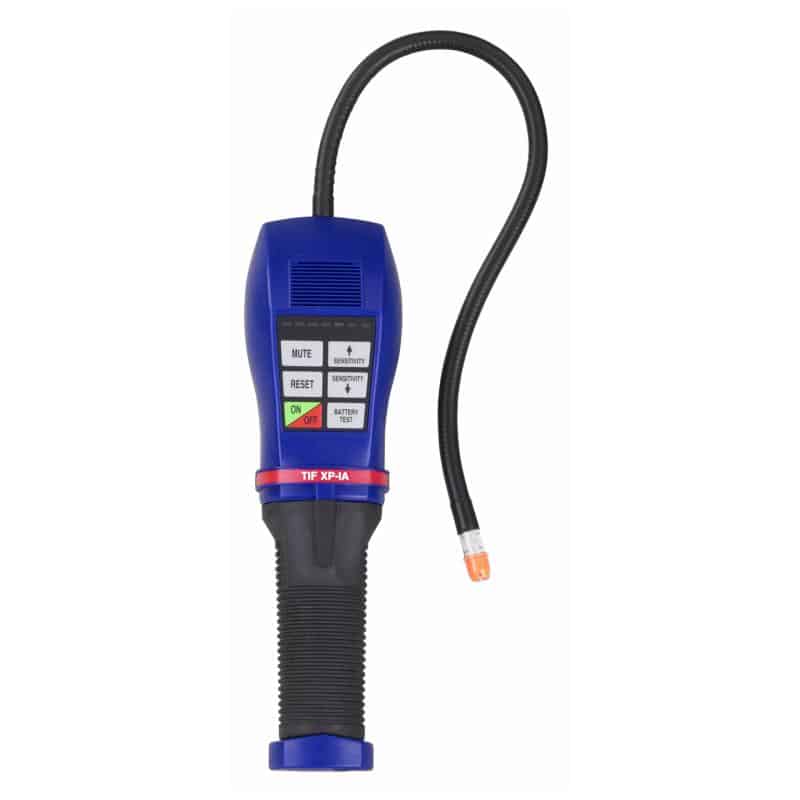

Introducing the new “Generation X” line of TIF refrigerant leak detectors. Packed with advanced features like MPC circuitry and Digital Signal Processing for faster and more precise leak detection. The upgraded sensing tip is more sensitive and durable, requiring less maintenance and hassle.
Features:
- Microprocessor controlled circuit with Advanced Digital Signal Processing
- Detects ALL halogenated refrigerants
- Certified to SAE J1627
- Variable frequency audible alarm
- CE approval
- UL classified
- Constant power indication
- Cordless and portable; operates on two C-cell batteries
- 14″ (35.5 cm) flexible stainless steel probe with liner
- Carrying case included, optional holster
- Optional reference leak source
Additional TIFXP-1A Features:
- Tri-color, six-segment visual leak size indicator displays 18 alarm levels
- Seven levels of sensitivity adjustment provide an increase of up to 64x
- Battery test function with true voltage indication
- Mute feature silences audible alarm
- True mechanical pump provides positive airflow through sensing tip
- One touch reset
- Tactile keypad controls
Specifications
Specifications | Details |
Power Source | 3V DC; 2 “C” cell alkaline batteries |
Ultimate Sensitivity | TIFXP-1A – Less than 0.1 oz./yr. (3 g/yr.) |
Sensing Tip Life | Approx. 20 hours |
Operating Range | 30° to 125° F (0° to 52° C) |
Battery Life | TIFXP-1A – Approx. 30 hrs. |
Duty Cycle | Continuous |
Response Time | Instantaneous |
Reset Time | One second |
Warm-up Time | Approx. 2 seconds |
Unit Weight | 1.2 lbs. (560 grams) |
Unit Dimensions | 9″ x 2.25″ x 2.25″ (22.9 cm x 5.7 cm x 5.7 cm) |
Fixed Probe Length | 14″ (35.5 cm) |
UPC | 687744520607 |
