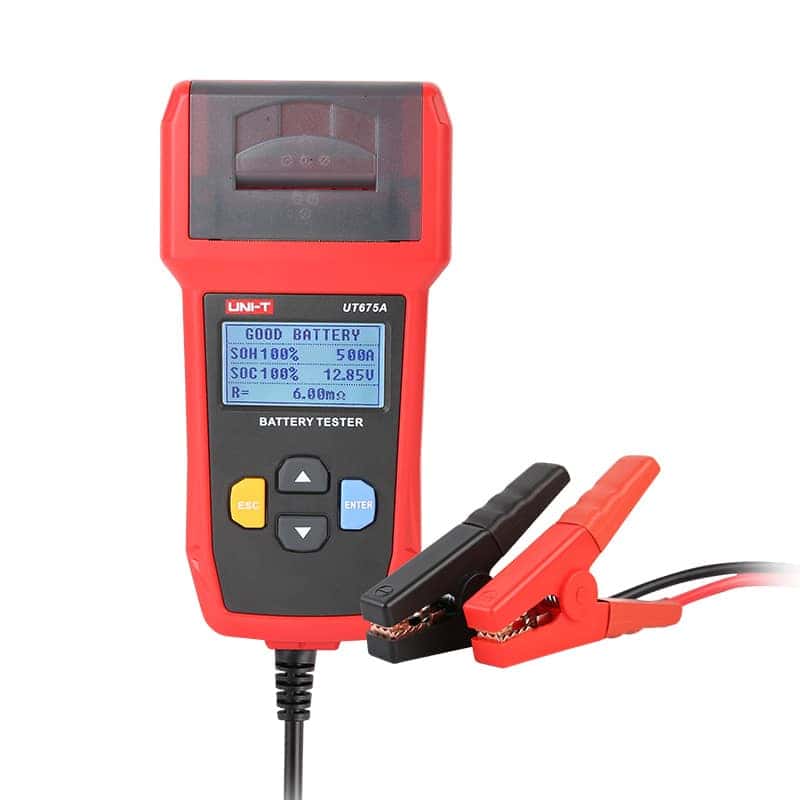

UT675A battery testers can be used to analyze the battery health of automobile batteries, suitable for battery capacities from 30Ah to 200Ah. These CE-certified testers can rapidly and accurately detect common faults caused by batteries. UT675A also includes USB communication and a built-in printer for report generation.
FEATURES:
- 12V cranking lead acid battery test
- 12/24V charging or cranking system test
- Display battery capacity, voltage, resistance and life
- Four-terminal Kelvin test
- 10 types of battery standards
- Language option (Chinese/English)
- Test without battery disassembly
- Print online and real-time test reports
- USB data transfer.
INCLUDES:
1 x UT675A Battery Test, 3 x 57mm thermal paper rolls, 1 x USB Cable, 1 x Carry case, 1 x English manual and 12 month warranty.
SPECIFICATIONS:
| Specifications | UT675A |
| Certificates | CE, FCC, RoHS |
| 12V battery test | √ |
| 12V/24V cranking system test | √ |
| 12V/24V charging system test | √ |
| Battery type | Ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, GEL battery, EFB battery |
| Battery capacity | √ |
| Battery standard and range | CCA: 40~2000; BCI: 40~2000; CA: 40~2000; MCA: 40~2000; JIS: 26A17~245H52; DIN: 40~1400; IEC: 40~1400; EN: 40~2000; SAE: 40~2000; AH: 3~250AH |
| Over voltage protection | √ |
| Reverse connection protection | √ |
| A prompt of poor contact | √ |
| Battery status display | √ |
| Battery life display | √ |
| Battery capacity display | √ |
| Battery internal resistance display | √ |
| USB communication | √ |
| Printing function | √ |
| General Characteristics | |
| Power | None, powered by external source |
| Display | 128*64 black and white lattice |
| Product net weight | 413g |
| Product size | Â 95mm x 47mm x 183mm |
