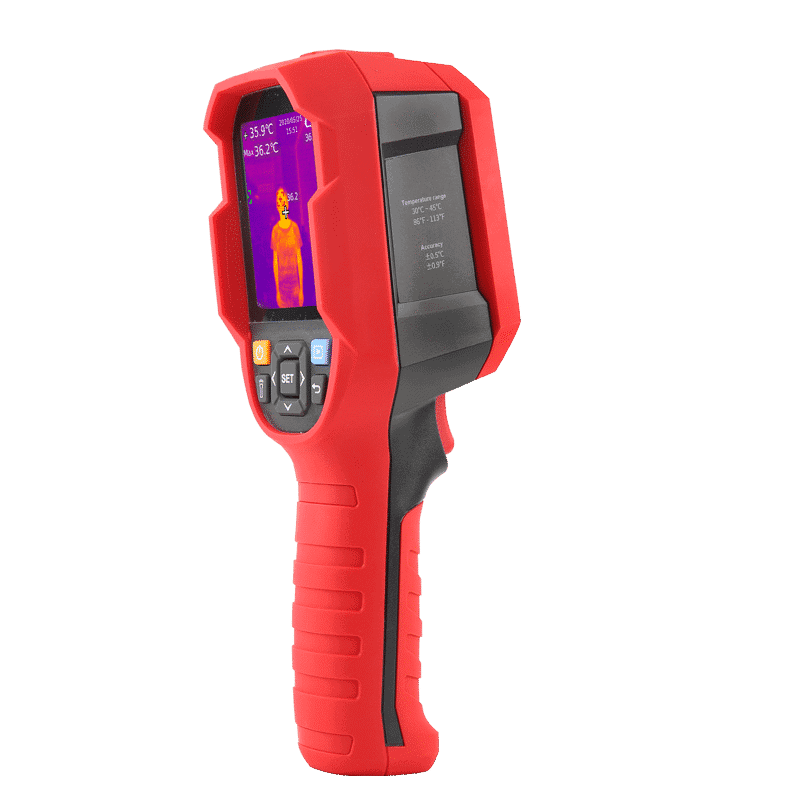

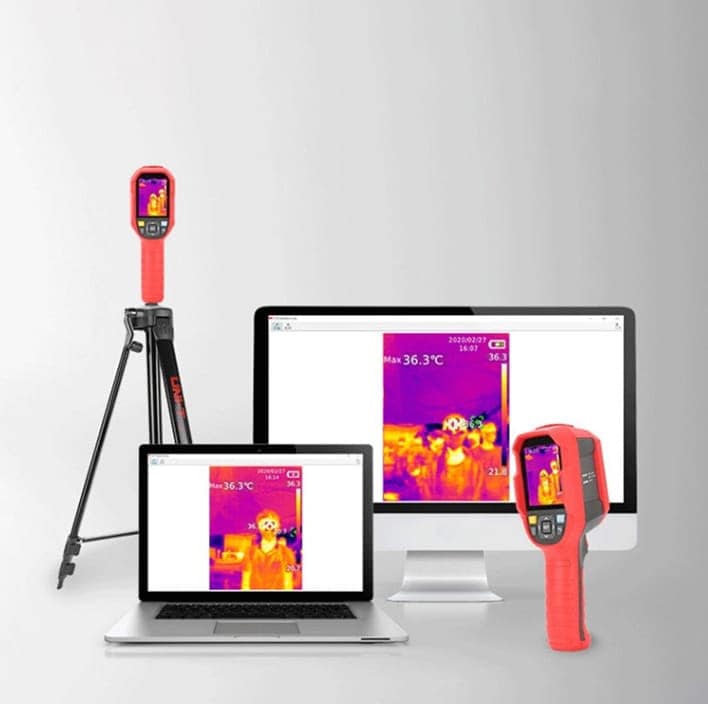

UTi260K EST thermal camera can quickly and effectively measure surface temperatures to identify elevated body temperature. It can also be mounted on a tripod and set in public locations, such as schools, shopping malls, airport and other high traffic areas. The thermal camera is with PC software (support data review, analysis and report sharing), it also supports real time projection to display the image and data on a large monitor and automatically tracking and alarm for high temperature.
FEATURES:
- Durable and user-friendly
- IR resolution: 256×192
- 8” TFT display screen (320×240 Pixels)
- Temperature measurement range: 30℃ to 45℃
- Auto alarm for high temperature
- Image modes: Thermal, Visual image, Fusion
- Color palettes: 7(Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC)
- PC software analysis
- Real-time image projection
- RIO
- LED flashlight
- Rechargeable Li-ion battery
- 1/4” tripod mounting hole.

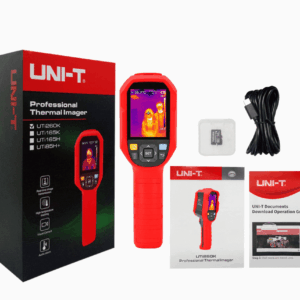

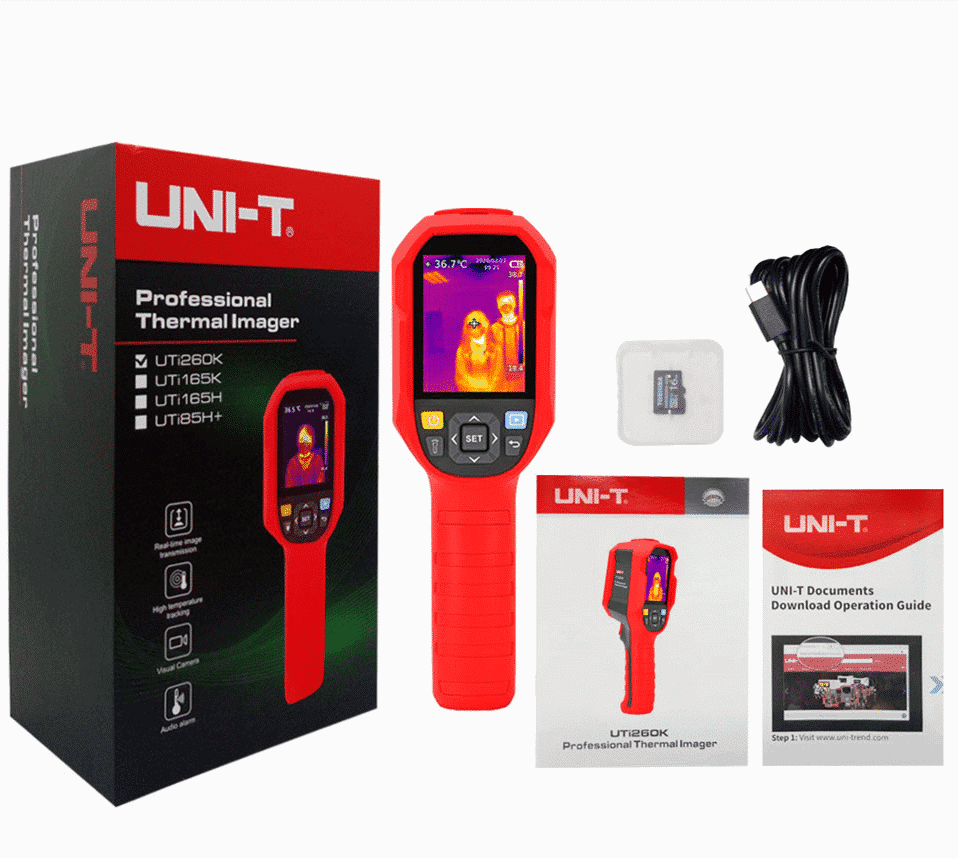

INCLUDES:
1 x UTI260K, 1 x Type-C USB cable, 1 x Micro SD card, 1 x English manual and 12-month warranty.
SPECIFICATIONS:
| Technical Data | |
| IR resolution (Pixels) | 256×192 |
| Display | 2.8”TFT LCD (320×240) |
| Field of view(FOV) | 56°×42° |
| Thermal sensitivity(NETD) | ≤60mk |
| Spatial resolution(IFOV) | 3.8mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus Free |
| Temperature measurement range | 30℃~45℃ (86℉-113℉) |
| Accuracy | ±0.5° (@25˚C ambient temperature) |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Colour palettes | 7 (Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC) |
| Image modes | Thermal, Visual Image,Fusion, PIP |
| On-screen analyzer | 3 Points |
| Digital camera resolution | 640×480 |
| Hi/Lo temperature alarm | Icon, LED flashlight |
| Software analysis | PC |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operating Time | ≥ 6 hours |
| USB | Type-C |
| Storage | 32G Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE, FCC, RoHS |
| Product net weight | 910g |
| Product size | 236mm×75.5mm×86mm |
| Packing Details | |
| Standard accessories | Type-C USB cable, Micro SD card, English manual |
| Standard individual packing | Box |
