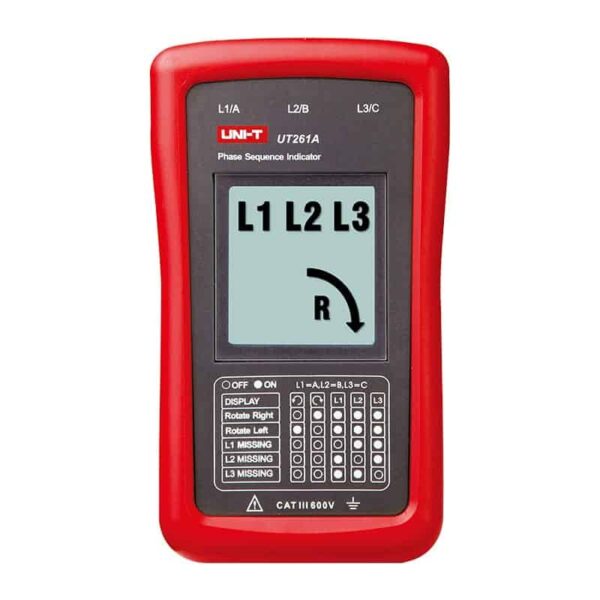

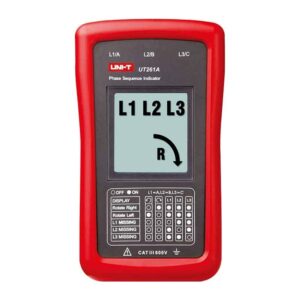

UNI-T UT261A Phase Sequence and Motor Rotation Indicator

UT261 series is used for determining 3-phase power phase sequence, missing phase indication, and motor phase  rotation (UT261B). UT261A and UT261B can measure AC voltage of 40~700V and 90~600V respectively.  These devices can operate in frequency range of 15~400Hz. UT261 are durable devices which can withstand impact from 2 meter’ s height. Test leads with protective tubing are included in optional accessories.

Original price was: $83.59.Current price is: $79.41. incl GST

Out of stock

Want to be notified when this product is back in stock?

SKU: UT261A Categories: ,

UT261 series is used for determining 3-phase power phase sequence, missing phase indication, and motor phase  rotation (UT261B). UT261A and UT261B can measure AC voltage of 40~700V and 90~600V respectively.  These devices can operate in frequency range of 15~400Hz. UT261 are durable devices which can withstand impact from 2 meter’ s height. Test leads with protective tubing are included in optional accessories.

UT261 series is used for determining 3-phase power phase sequence, missing phase indication, and motor phase  rotation (UT261B). UT261A and UT261B can measure AC voltage of 40~700V and 90~600V respectively.  These devices can operate in frequency range of 15~400Hz. UT261 are durable devices which can withstand impact from 2 meter’ s height. Test leads with protective tubing are included in optional accessories.



Features

  • 1000A AC current measurement
  • 1000V AC/DC voltage measurement
  • 600A inrush current measurement
  • Temperature
  • NCV
  • ACV frequency 10Hz~10kHz
  • Jaw opening: 45mm
  • Resistance / capacitance / frequency measurement
  • Auto range / backlight / low battery indication
  • Continuity / diode / duty cycle
  • MAX/MIN
  • Data hold / flashlight / relative mode
  • Auto power off
  • CAT II 1000V/CAT III 600V



Specifications Range UT261A UT261B
AC voltage (V) 90V~600V √
40V~690V √
Frequency (Hz) 15Hz~400Hz √ √
Working current (A) <1mA <3mA
Features
Phase sequence indication LCD LED
Missing phase indication LCD LED
Motor rotation indication LED
General Characterisitics
Power UT261A: No battery required; UT261B: 9V battery (6F22)
Product color Red and grey
Product net weight UT261A: 160g; UT261B: 180g
Product size 123mm x 71mm x 29mm
Standard accessories Battery (UT261B), test lead with alligator clip x 3
Standard individual packing Gift box, English manual, carrying bag
Standard quantity per carton 20pcs
Standard carton measurement 450mm x 325mm x 340mm
Standard carton gross weight UT261A: 9.8kg; UT261B: 10.3kg



Documents

UT261A User Manual

UT261 Datasheet
